    A couple of requests for additional pics of my home built splitter has been made, so to not hijack a different thread I will start this one. I choose the wood shed forum instead of the equipment forum because the request was made from the wood shed. (Mods - feel free to move if necessary).
    Its just a splitter. I am not a professional anything when it comes to metal work. Just an old farm boy that can stick stuff together.

    A few specs:
    8hp Briggs
    16 GMP pump
    5" x 24" ram.
    1500# utility winch (12V)

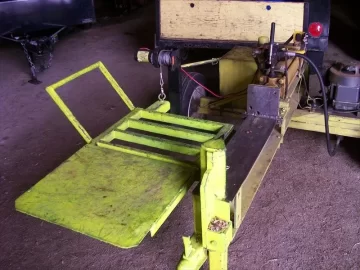

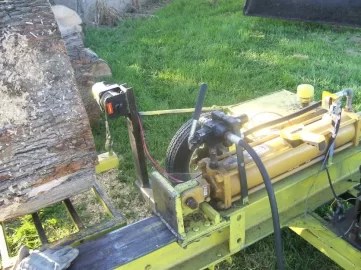

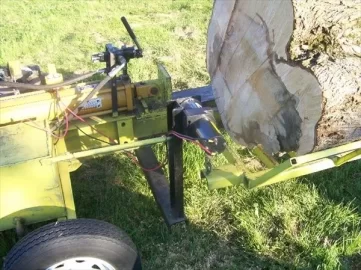

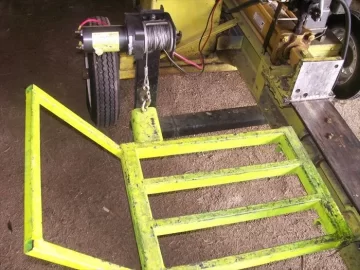

    Most interest seems to revolve around the log lift. The work table slides into the lift for easy removal. Winch is a power in/power out and I have never even came close to wearing a battery out in a days work. The lift goes from ground to level in 3 seconds.

    Total cost for the stuff I had to buy was less than $600. The rest was stuff I had.


    Attached Files:

  2. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    i especially like the color....nothing says "power" like that safety green/yellow.

  3. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    It is the only thing I have of that color - so its easy to find in the shed. :lol:

  4. smokinj

    smokinj
    Minister of Fire 2.
    NULL


    Aug 11, 2008
    15,981
    1,412
    Loc:
    Anderson, Indiana
    That is Awesome I know I have seen it many time, But it doesnt get old!

  5. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    Yeah - some of the old timers around here are probably getting tired of my random splitter pics. :lol:

  6. WoodpileOCD

    WoodpileOCD
    Minister of Fire 2.
    NULL


    Jan 19, 2011
    722
    109
    Loc:
    Central NC
    I'm not an old timer here and I'm not tired of them. How bout some links to the older ones. Great looking setup.

    Never mind, just found the pics in the original thread.

  7. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    They would be some of the same pics posted above. Here is a couple more:


    Attached Files:

  8. smokinj

    smokinj
    Minister of Fire 2.
    NULL


    Aug 11, 2008
    15,981
    1,412
    Loc:
    Anderson, Indiana
    Oh it is that nice!

  9. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    This machine is probably a bit bigger than it may appear. To give a prospective of size - it sits at a touch over 5ft wide and is about 7ft long. The oil tank will hold more than 15 gal. and those are 13" trailer tires on it.

  10. Delta-T

    Delta-T
    Minister of Fire 2.
    NULL


    Feb 27, 2008
    3,144
    579
    Loc:
    NH
    can you really call that "splitting"??? I guess calling your machine a "bashing the bejeezus out of the wood thingy" is too long...Splitter it is. Doubles as a cider press?

  11. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL

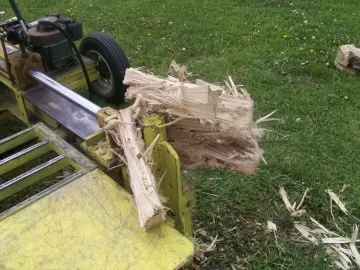

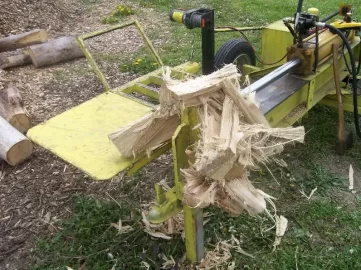

    Guess what kind of wood that is. Yep its pisselm. That crap actually compressed before my wedge would sink into it. And nothing in tree form will stop that splitter, so it will just crush it if need be. Couldn't think of a better wood to crush. :zip:

  12. DonNC

    DonNC
    Member 2.
    NULL


    Jan 3, 2011
    165
    1
    Loc:
    Fayetteville, NC
    Nice
    That looks like quite a project. Im sure it more than pays for itself over time too

    How much money do you think it cost you to build...not counting time.

  13. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    I built it in a weekend by myself. I had to purchase the ram ($300), valve ($69), pump ($180) and winch ($49). Everything else I already had or scrounged. The H beam cost me 2 cases of beer. So basically it was about a $600 build for me, but if you purchase a splitter with the same specs and log lift - you will be in the $1800-$2000 range.

  14. smokinj

    smokinj
    Minister of Fire 2.
    NULL


    Aug 11, 2008
    15,981
    1,412
    Loc:
    Anderson, Indiana
    I would say much higher than that even used!

  15. DonNC

    DonNC
    Member 2.
    NULL


    Jan 3, 2011
    165
    1
    Loc:
    Fayetteville, NC
    what about the frame... the wheels... Old trailer?

  16. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL

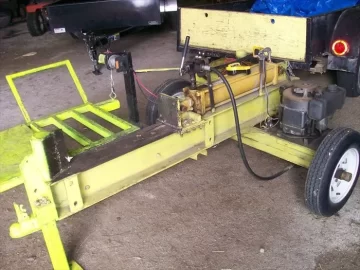

    The axle was from an old boat trailer. A 3.5" channel iron was welded on top of the axle for both stiffening reasons and to raise the beam height. Beam is welded to 3.5" channel iron. You can see the "stack up" in this pic:


    Attached Files:

  17. maxed_out

    maxed_out
    New Member 2.
    NULL


    Jan 19, 2010
    592
    2
    Loc:
    Central Pa

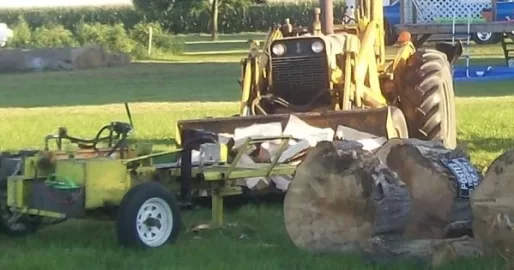

    wow sweet splitter and a backhoe. Too bad you dont live any closer. I'd trade ya some of those woodstove pizzas we make just to borrow it.

  18. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    If that tractor was to barf out on me, I would have to replace it fast. I work it like an old dog around this place. Gotta love a forward/reverse shuttle on a loader tractor.

    Always willing to help a brotha out, but I'm a heck of a cook and have an Isle Royal ;-) Now if were talking beer - thats a whole 'nuther thing. :coolsmile:

  19. maxed_out

    maxed_out
    New Member 2.
    NULL


    Jan 19, 2010
    592
    2
    Loc:
    Central Pa
    Ok lots of beer and pizza. My favorite food groups. We have an IR and you can do it too. It makes one mean pizza.

    Whats a forward/reverse shuttle do for you, I've never ran one.

  20. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    The gear shift lever 1-4 is to set speed. Your forward and reverse direction is a lever at the steering wheel like your turn signals. It is a common thing used in forklifts and industrial loader applications (and the 580CK Case is considered industrial)

  21. Backwoods Savage

    Backwoods Savage
    Minister of Fire 2.
    NULL


    Feb 14, 2007
    27,815
    7,368
    Loc:
    Michigan
    Jags, don't worry. Us old timers don't get tired of the pictures and especially when you produce such a fine machine. Good work.

  22. PJF1313

    PJF1313
    Member 2.
    NULL


    Oct 25, 2009
    389
    0
    Loc:
    Pine Barrons, L.I., NY
    Jags -

    On the side opposite of the log-lift; would a holder/cradle help or hurt more?

    My way of thinking (a very short road!) is that if you needed a lift to bring up
    the round originally; you'll still bust-a-nut man handling, at most, the other half
    of the round off the ground after you did the first split. Or am I still wet behind
    the ears?

    P.J.

  23. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,364
    5,997
    Loc:
    Northern IL
    Hmmm...it can happen, where the half of the split on the operators side can get away from you. I just stand back and let it fall if it is trying to bowl me over. That said - I find that it happens rarely. As said above, you can allow the part opposite of the operator fall back to the work table and then re-maneuver the half on the operators side to be re-split. Basically you just hold it in place until the ram gets out of your way. I guess since you wouldn't stand that close to the beam, an narrower table could be added to the operators side, but I'm not sure how much help that would be. I have never had one come off of the lift and roll off the beam - if that was your question, but I am also a pretty stout guy, and the lift can be adjusted in small increments. I just lift it to the point that I have a bit of gravity to help roll the round to the beam. It can usually be places with one hand.

    I have worked up rounds using the log lift, that if they were laying flat on the ground, you would need mechanical assistance in moving them.

  24. NH_Wood

    NH_Wood
    Minister of Fire 2.
    NULL


    Dec 24, 2009
    2,602
    292
    Loc:
    southern NH
    Jags - sweet work - love the lift. Also, the posted sign left on the round is great - I'll have to use that technique to gain access to some new hunting areas. Cheers!

  25. PJF1313

    PJF1313
    Member 2.
    NULL


    Oct 25, 2009
    389
    0
    Loc:
    Pine Barrons, L.I., NY
    Gotcha - Just keep on taken' "slabs" off rather than 1/2 it at a time. Smart man.
