My stove parts are done!!!!

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Corie, Aug 16, 2006.

Thread Status:
Not open for further replies.
  1. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    Just got off the phone with Lynn at Brandywine Valley fab and my parts are done and she just finished up my invoices!!!!!

    I've got about half of my own machine work done, the secondary manifold parts are almost all done, the grate supports are done, the ash pan door is done as is the ash pan (almost).

    I still have to drill the actual secondary tubes, the airwash ducting, the grate rotators and a few other things. Finally making progress though!

    Also finished writing the operation manual last night when I got home from work. I'll post it on my website so those that are interested can critique it for me.

    Pictures will be posted in about two hours when I get back from the shop.


    I'm all smiles :):):):):):):):):):):):):):):)


    Helpful Sponsor Ads!





  2. wg_bent

    wg_bent
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    2,248
    Likes Received:
    6
    Loc:
    Poughkeepsie, NY
    Be glad to help with proof reading the manual... Will you be producing these stoves? Be interesting the EPA process, UL process, and What testing your doing? Pics, add Pics!!!

    Collapse Signature Expand Signature
  3. Harley

    Harley
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 11, 2006
    Messages:
    997
    Likes Received:
    1
    Loc:
    Ashfield, MA

    Congratulations, Corie..... I'm not sure I'd be as happy as you are to have her say the invoice was finished.... She could have said.... "Come get your stove parts, and I'll get you the invoice in a couple of weeks" Now THAT would put a smile on my face!!!

    Collapse Signature Expand Signature
  4. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    ahaha agreed.

    Would have been even happier if they said they'd cover the cost because they knew I was a POOOOOOOOOOOOOOR college student.

    Oh well, walking out the door right now!

  5. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA

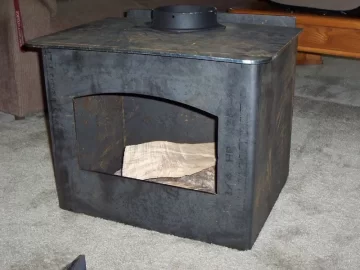

    And then there were stove parts. Everything is to my specs and looks great. I'm very pleased with the job they did on everything. Now the ball is 100% in my park to finish.


    Attached Files:

  6. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA

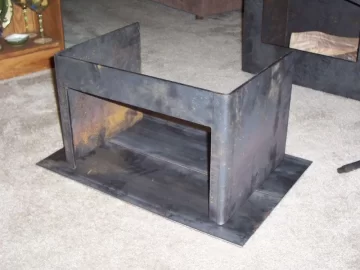

    Lower Ash Pan Section and Base


    Attached Files:

  7. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA

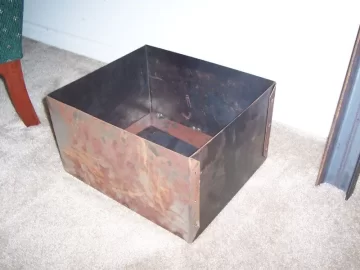

    Ash Pan


    Attached Files:

  8. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA

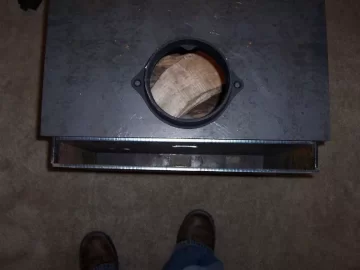

    Air Jacket on rear of stove. The heat shield is not shown.


    Attached Files:

  9. MountainStoveGuy

    MountainStoveGuy
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 23, 2006
    Messages:
    3,654
    Likes Received:
    2
    Loc:
    Boulder County
    Looks good! besides your time, how much do you have invested in this project?

    Collapse Signature Expand Signature
  10. Robbie

    Robbie
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 5, 2006
    Messages:
    610
    Likes Received:
    1
    Loc:
    East Tennessee- Great Smoky Mountains.
    Corie, a wonderful looking wood stove ! Very HEAVY DUTY looking, and looks to be well planned out, take your time, it will turn out perfect I'm sure. :)


    Robbie.

    Collapse Signature Expand Signature
  11. Roospike

    Roospike
    Expand Collapse
    New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Likes Received:
    3
    Loc:
    Eastern Nebraska
    Plasma ( cnc ) cut ? Water jet ? Them there are some good ole beefE parts. One he(( of an ash pan brother man . Super interisting . Lookn good .......... keep us updated .

    Collapse Signature Expand Signature
  12. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    All the pieces were cut on the water jet. Not sure about the bending though, I don't believe it was done on a CNC machine. A few of the small holes for the air inlets, etc were good old fashioned flame cut. Overall though, everything looks great.

    The ash pan is huge so that mom won't complain too much since it won't have to be emptied twice a day like most tiny coal stove ash pans.

  13. MountainStoveGuy

    MountainStoveGuy
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 23, 2006
    Messages:
    3,654
    Likes Received:
    2
    Loc:
    Boulder County
    corie, how did you calculate btu loss to get to the proper chimney size? How many cubes is the firebox? what type of clearances are you planning on using?, what about combustion air hole sizing? are you copying a current stove on the market ?

    Collapse Signature Expand Signature
  14. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    I used the 1.8 cu ft. firebox size and did comparisons to various stoves on the market to find the 6 inch flue collar size.

    I plan on using generic, unlisted stove clearences for the stove since that's essentially what it is. They will be overkill, but without testing, it is the only way I feel the stove can truly be safely installed at this point. I will be closely monitoring wall temperatures behind the stove and chimney connector with an infared thermometer to be certain everything is safe.

    The combustion air hole is, uhhh, I'm trying to remember the crosssectional area off the top of my head, but I believe it is 2.5x1.5" without measuring. I am not copying any specific stove, although I have measured and observed a TON of stoves on the market to be sure that my fluid calculations for the stove seem to be correct based on what the other manufacturers are doing.

    I have made the stove more heavy duty than any other stove I've seen, which I hope is only a good thing. The stove is going to have quite a thermal mass of steel and of course is going to be heavy as hell which I'm not terribly excited about.

  15. Harley

    Harley
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 11, 2006
    Messages:
    997
    Likes Received:
    1
    Loc:
    Ashfield, MA
    Looks great, Corie



    That ash pans is so huge that your mom won't complain when its full, because she's going to say "Corie... get your brother, and father, and two of the neighbors and go dump that ash pan" :lol:

    Collapse Signature Expand Signature
  16. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    59,158
    Likes Received:
    7,326
    Loc:
    South Puget Sound, WA
    Awesome project Corie. This is great fun watching it come together.

    Harley LOL, I expect Corie to develop a self-powered dump cart for the ash bin next.

    Collapse Signature Expand Signature
  17. MountainStoveGuy

    MountainStoveGuy
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 23, 2006
    Messages:
    3,654
    Likes Received:
    2
    Loc:
    Boulder County
    sounds great cori, looks like you might have some future in the hearth industry?

    Collapse Signature Expand Signature
  18. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,178
    Likes Received:
    9,459
    Loc:
    Northern Virginia
    I want an exclusive territory in Virginia, North Carolina, Maryland and West Virginia on the Corie I.

    BroBart's Hearth Shop
    More Than Just Hot Air.
    Need to Flue It? We Can Do It.

    Collapse Signature Expand Signature
  19. Harley

    Harley
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 11, 2006
    Messages:
    997
    Likes Received:
    1
    Loc:
    Ashfield, MA
    I bet he will!!! Again... great looking project, Corie.



    Hmmmm.... that gives me an idea... I think we have a bunch of big long screw conveyors out in the back 40 at work..... Built to handle fly ash, lime and a bunch of other material. Maybe mount one of those in the ash collection area..... out the door, and sprinkle the ash in the garden and lawn to sweeten the soil.

    Collapse Signature Expand Signature
  20. Roospike

    Roospike
    Expand Collapse
    New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Likes Received:
    3
    Loc:
    Eastern Nebraska
    Is the box 3/16" or 1/4" ? Top plate different thickness from the body ? pedestal thickness? Also a side note: a CNC machine is like a water jet but run per plasma cutting , CNC is a plasma cutting table run per computer program .

    Collapse Signature Expand Signature
  21. elkimmeg

    elkimmeg
    Expand Collapse
    Guest

    Cori I was so pressed for time last weekend. But I was thinking about you as I traveled the main line almost out to Harissburg 76 is so screwed up with construction. Sorry no time to get together. I have a few stove installs to do one for TB. I have to get intouch with him. Hopefully other forum members will be on hand. We will document everything. I also have a canidate for the donnor program I have to follow up the setup with. Removing an existing old non EPA compliant, with the properly sized VC stove. Again to be documented and recorded for Hearth.com. If interested I have room for you here. Got a lot of things going on. I also would be willing to help with your Cori one install, if I can swing the time

  22. Corie

    Corie
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 18, 2005
    Messages:
    2,430
    Likes Received:
    1
    Loc:
    Halifax, VA
    The entire stove is 1/4", the top is 5/16" as is the secondary baffle, albeit stainless. (And is not shown in any of the pictures because I still haven't cut it to size.)

    The only thing that is 3/16" is the base that the pedestal sits on.

    Roo, I don't know if you are talking to me about the differences between CNC, but don't worry we had almost an entire course based solely on writing CNC code into various machines (Lathe, mill, waterjet) based on desired results.

    Sometimes it's really nice to go to a big time university that has the money to have many many toys for us to learn on.

    Also roo, I have some questions about a lot of the welding joints. I've got a good amount of T-butt joints and I am thinking that I will have to v-notch the pieces for proper penetration, but I know you'll know exactly what I need to do. I'm having a hard time explaining it in words, i'll have to draw some quick photos and PM them to you so you can tell me what you think. I appreciate the help in advance and I appreciate the kind words from everyone!

  23. Roospike

    Roospike
    Expand Collapse
    New Member

    Joined:
    Nov 19, 2005
    Messages:
    2,859
    Likes Received:
    3
    Loc:
    Eastern Nebraska
    Yep , Thats one beefie stove . Stainless steel baffle is very nice to see , you should get less warpage and a longer life from it . What ever questions you have Corie .....let me know , glad to help where i can .

    Collapse Signature Expand Signature
