Outdoor boiler wiring -- need help

Post in 'The Boiler Room - Wood Boilers and Furnaces' started by Brian79z, Oct 21, 2012.

  1. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    I'm trying to wire up a boiler that I received from a friend. But I cannot figure out the wiring - and he can't remember.

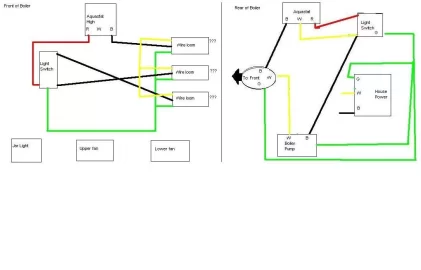

    Attached is a diagram. Can anyone help?
    It's a Big John - Johnson wood boiler. Upper and Lower fans.. Jar light for nighttime. Boiler wiring.JPG


    Helpful Sponsor Ads!





  2. BoilerMan

    BoilerMan
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 16, 2012
    Messages:
    1,707
    Likes Received:
    320
    Loc:
    Northern Maine
    You need to give us more info. Do the two fans come on at the same time? I assume the light switch is just that for the jar light, and possibly turns the fans off while you load the unit.....that is just a guess. Not many OWB users on here.

    TS

    Collapse Signature Expand Signature
  3. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    Unsure if they come on at the same time. The switch does turn on the jar light, but it appears to be a 3-way switch..(???)

  4. heaterman

    heaterman
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 16, 2007
    Messages:
    3,338
    Likes Received:
    613
    Loc:
    Falmouth, Michigan
    Typically the 3-way switch is going to kill the fans when you turn on the light. The pumps will run all the time and are usually just plugged in to a receptacle that is hot all the time in the back of the stove.

    The hot leg from the switch will go through the aquastat before hitting the fans. That's about all there is to a typical OWB. I usually wire in another standard on/off switch ahead of everything so I can kill the whole works if something needs to be repaired.

    Collapse Signature Expand Signature
  5. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    Thanks!!

    Can you tell me where to hook up the black from the house? I assume I can wire the house white (yellow in pic) to the pump white (yellow in pic). And of course ground to ground.

  6. homemade

    homemade
    Expand Collapse
    New Member

    Joined:
    Jul 28, 2012
    Messages:
    46
    Likes Received:
    9
    Loc:
    central wisconsin
    thats what i would say

  7. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    What about the black wire... I have no idea where to hook the black wire to the furnace from the house.

  8. homemade

    homemade
    Expand Collapse
    New Member

    Joined:
    Jul 28, 2012
    Messages:
    46
    Likes Received:
    9
    Loc:
    central wisconsin
    i would put to the black on aqyastat

  9. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    Forgive me for being stupid. But which screw on the aqua stat? B. W. R ?

    Should it go to the top of switch on the rear of heater ?

  10. homemade

    homemade
    Expand Collapse
    New Member

    Joined:
    Jul 28, 2012
    Messages:
    46
    Likes Received:
    9
    Loc:
    central wisconsin
    if u'd like u could call me seven 1 5 four 6 5 02 08

  11. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    N
    no need for a phone call.. but thanks anyway...

    I just want to know where to hook up the house black wire on the drawing.

  12. homemade

    homemade
    Expand Collapse
    New Member

    Joined:
    Jul 28, 2012
    Messages:
    46
    Likes Received:
    9
    Loc:
    central wisconsin
    i would say black on aquastat

  13. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    Yes.. you have said that before.
    But there are 3 separate connectors on the aquastat labeled Blue / White / Red

  14. maple1

    maple1
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 15, 2011
    Messages:
    6,224
    Likes Received:
    1,072
    Loc:
    Nova Scotia
    Have you said what kind of aquastats they are? Example my L6006 - the black goes to R terminal, the R-W makes contact on temp rise (like to turn a circ on) while the R-B breaks (like to turn off a heat source). I don't think R-W-B means Red-Black-Blue, although I'm not sure exactly what they do mean. Try taking the make/model of your aquastats & googling to find the manual for them to help understand their functions. I have no experience with outdoor boilers so can't help much more. Or how about googling the boiler to find a manual?

    EDIT: Or just email them and ask:

    http://johnsonoutdoorwoodfurnaces.com/Home/home.htm

    Collapse Signature Expand Signature
  15. homemade

    homemade
    Expand Collapse
    New Member

    Joined:
    Jul 28, 2012
    Messages:
    46
    Likes Received:
    9
    Loc:
    central wisconsin
  16. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0
    The aquastat is labeled RED WHITE BLUE on each of the 3 screws respectively (there is no screw labeled "Black").
    I guess I am assuming that most 3 wire aquastats are the same, but since nobody can answer this, then I guess I must have some oddball bastard aquastat that nobody has ever seen.

    Looking at my drawing at the top of this page... I'm just going to assume that I need to hook the house black to the upper part of the lightswitch -- which goes to the screw labeled RED on the rear aquastat.

    ---and no... Johnson cannot help me, because they say that the rear lightswitch is not a factory part of their setup.

  17. maple1

    maple1
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 15, 2011
    Messages:
    6,224
    Likes Received:
    1,072
    Loc:
    Nova Scotia
    You might get more help with more info - like maybe make/model of aquastat(s)? And I can't tell from the diagrams how the front one hooks with the rear one - but maybe others can. There is a limit to how much help can be gotten over the internet without the helper actually being there (like in tracing circuits). Think I'm out of this one...

    (Pictures might also be a big help too....)

    Collapse Signature Expand Signature
  18. Brian79z

    Brian79z
    Expand Collapse
    New Member

    Joined:
    Aug 19, 2012
    Messages:
    10
    Likes Received:
    0

    I will try to get that info tonight.
    The wiring from rear to front is intact. Although I do not know which romex it connects with---that is not my issue.

    I just need to know where to connect the black wire from the house. The previous owner is thinking the top of the light switch on the rear of the burner.
