Quad 1200i exhaust blower failure rate

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by PutnamJct, Mar 14, 2013.

  1. PutnamJct

    PutnamJct Member

    Joined:
    Feb 17, 2006
    Messages:
    236
    Loc:
    Putnam County NY
    Hey All,
    Had my Quad 1200i since 2005. It runs full time all winter and is the main heat source for the house.
    I am getting ready to replace the exhaust blower motor for the 2nd time. First change was about 4 years ago. Is the life expectancy on these things only 4 to 5 years or is there something I could be doing to make them last longer?
    I clean weekly (full vac, remove baffles, scrape, prod and poke to get as much ash out as possible) but am thinking maybe there is more I can do? AFAIK the motor is sealed and there is no oiling involved. Both replacements were due to loud whining noise which I am attributing to bearing failure. 1st replacement was original Quad part, and the second one on the way is also an OEM unit.
    Thanks,
    John

    Helpful Sponsor Ads!





  2. mralias

    mralias Minister of Fire

    Joined:
    Apr 29, 2008
    Messages:
    894
    Loc:
    MA
    Feel your pain. Same issues here. Not sure if any replacement will be any better but I have not found one yet.
  3. dhall28

    dhall28 Member

    Joined:
    Mar 2, 2013
    Messages:
    174
    Loc:
    Central Ohio
    I would recommend using a harman combustion blower motor, all modern harman's use the same combustion blower, it should be considerably less expensive and as reliable if not more reliable than the quads combustion motor
  4. mralias

    mralias Minister of Fire

    Joined:
    Apr 29, 2008
    Messages:
    894
    Loc:
    MA
    I would love to try something like that but I'm just not too sure on what it might do to the control board or other stove functions. I believe it was Dexter that recommended this one for a replacement which does have the ports for oil. Have not ordered it yet but may give it a try someday. http://www.amazon.com/gp/aw/d/B000W3Q4QO. It's a Fasco 7021-9129.
  5. dhall28

    dhall28 Member

    Joined:
    Mar 2, 2013
    Messages:
    174
    Loc:
    Central Ohio
    they are both 3,000 rpm C-frame motors (harman vs. quad). the one from amazon is oilable, but only because it uses bushings. the harman motor has sealed ball bearings. I am in charge of stocking parts at the quad/harman dealership i work for and i only stock harman combustion blowers for all 120v stoves, quad and harman and breckwell and country stove and enviro, i do stock the quad AE motors but those are a completely different beast altogether. Maybe im wrong but so far i havent had any complaints or issues to date.
  6. DexterDay

    DexterDay Guest

    I bought the replacement in the link. Sill in the box though and I am on yr 5 with my Comb blower.

    But.... I do use 3-in-1 oil (blue can SAE-20) on the sealed bearings. On both the combustion and convection blower. At least twice yearly. Still look, sound, and run good.

    The one on Amazon was Cheap. And I am selling the Quad this Summer. So in hindsight, I could have saved the $$$, but at the time, I only had the Quad. So I have all kinds of spares.
  7. SmokeyTheBear

    SmokeyTheBear Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    12,538
    Loc:
    Standish, ME
    Cleaning the blower motor, its cooling fan, and the impeller will help it attain a ripe old age.
    Heatsource likes this.
  8. mralias

    mralias Minister of Fire

    Joined:
    Apr 29, 2008
    Messages:
    894
    Loc:
    MA
    Agreed. Compressed air on the outside fan workings every time I vac out the firebox is keeping it nice and clean and hopefully prolonging its life.
  9. Phil Do's fire.

    Phil Do's fire. Minister of Fire

    Joined:
    Dec 16, 2012
    Messages:
    502
    Loc:
    Hyde Park, NY
    Every stove that I have owned always seemed to develop blower issues after 5 years or so:p
  10. PutnamJct

    PutnamJct Member

    Joined:
    Feb 17, 2006
    Messages:
    236
    Loc:
    Putnam County NY
    Thanks everyone for your input. Will try to spend a little extra time cleaning in and around the motor in the future. That replacement you linked to on amazon is about a 1/3 of the price of the OEM model. May pick one up as a spare. Thanks Again!
  11. DBCOOPER

    DBCOOPER Feeling the Heat

    Joined:
    Jan 23, 2010
    Messages:
    440
    Loc:
    Stowe, Pa

    Whats the part number?
  12. dhall28

    dhall28 Member

    Joined:
    Mar 2, 2013
    Messages:
    174
    Loc:
    Central Ohio
    part # 3-21-08639 for harman comb. blower. some modification are necessary but usually only minor, biggest modification was putting one on a old non AE mt vernon but it worked and turned out great.
  13. Don2222

    Don2222 Minister of Fire

    Joined:
    Feb 1, 2010
    Messages:
    7,154
    Loc:
    Salem NH
    Hello PutnamJct

    The replacement for the exhaust blower is fairly standard. They are all approx 85 CFM and approx 1.0 amp

    Is your exhaust blower like this one?
    http://www.stove-parts-unlimited.com/Quadra_Fire_1200_Exhaust_Blower_p/812-3381.htm
    115v 60Hz 47W at .99 Amps. 3150 RPM Class H motor
    Quadra-Fire part # 812-3381
    OEM Quadrafire part

    You could use an englander 25-pdvc exhaust blower. They last a long time
    http://www.englanderstoves.com/store/25-PDVC_Parts.html

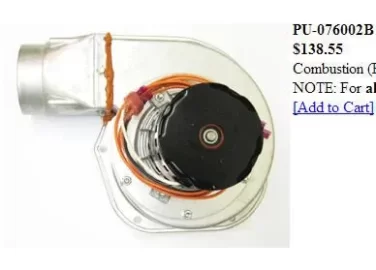

    See pic of Englaner Exhaust blower below
    PU-076002B Combustion Blower (6 lbs. each)
    $138.55
    Combustion (Exhaust) Blower. Negative draft. Includes gasket necessary to install, and includes pipe adapter (adapter was formerly Part # CA-1598).
    NOTE: For all pellet units EXCEPT 25-PFS/PFSP.


    Or a Fasco A082
    If you want to go cheap and do some work mounting the blower on your mounting hub. These motors work well and last quite a while
    http://www.cshincorporated.com/product_info.php/products_id/3462


    Or a high quality Enviro Exhaust blower
    A little pricey but a good pop in Motor!
    http://www.stove-parts-unlimited.com/Enviro_Combustion_Exhaust_Blower_Aftermarket_p/pp7610.htm

    Now if you really want to upgrade and get a heavie blower that is 2 speed
    You can select 85 CFM of blast away with 105 CFM at 1.5 amps
    Go with the Magnum upgraded blower that will blow your socks off. :)
    http://www.eastcoasthearth.com/1_57_Baby-Countryside-Upgraded-Exhaust-Blower.html


    This is the replacement for the Convection blower
    What are the numbers and specs on the motor label?
    Maybe we can find a better and of course cheaper convection blower from CSH Incorporated?
    Like this one
    http://www.cshincorporated.com/product_info.php/products_id/109
    or this one
    http://www.cshincorporated.com/product_info.php/products_id/17803

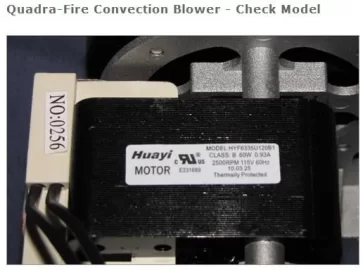

    Is it like this one in the picture below?
    Quadra-Fire part # 812-4900
    Replaces Quadrafire part # 812-4540
    http://www.stove-parts-unlimited.com/Quadra_Fire_Convection_Blower_Check_Model_p/812-4900.htm
    HYF6335U120B1
    Class B
    115v 60 Hz
    60W @ .93a
    2300 RPM
    ~44 Ohms resistance.
    Note: Resistance can vary a little from motor to motor and this number should only be used as a basic guide.
