Question about tiling around my insert

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by dafattkidd, Jul 7, 2011.

Thread Status:
Not open for further replies.
  1. dafattkidd

    dafattkidd Minister of Fire

    Joined:
    Dec 11, 2007
    Messages:
    1,566
    Loc:
    Sound Beach, LINY
    I am going to replace the tile that make up my hearth. I'm also probably going to tile over the brick on the fireplace around the insert. My wife likes the small glass looking tiles. Can these tiles take the heat? Any advice on which materials to use? IE porcelain or stone tiles, Thinset, tile glue, grout, etc? Any input would be great. Thanks.

    Helpful Sponsor Ads!





  2. kettensäge

    kettensäge Feeling the Heat

    Joined:
    Jan 18, 2011
    Messages:
    441
    Loc:
    N.E. PA.

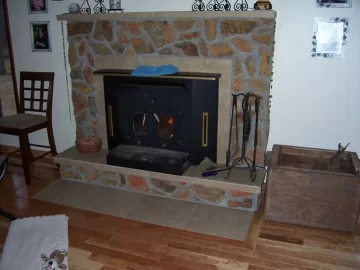

    I have tiled and installed natural stone on my brick fireplace. Porcelain tile, thinset, sanded caulk type grout. No issues whatsoever. The hottest it gets is about 115° directly above the insert.
    I don't think temperatures simmilar to these will be an issue for any type of tile.
    No experience with glass tile.

    Attached Files:

  3. Stump_Branch

    Stump_Branch Minister of Fire

    Joined:
    Nov 12, 2010
    Messages:
    878
    Loc:
    MD
    I had quite a nasty looking blond brick fireplace that just wasnt going to cut it. Wife hated it.. we thought about painting, but choose to tile over it with slate. We cut the tiles in four strips to have a more "stone look". Due to weight and height, i hammer drilled into the brick and used 1/4" tapcons to hang metal lathe. Then used a thinset that has a consistency of hydro cement. Much easier to go vertical with that stuff then standard thinset. I still have to grout, but an almond sanded grout will round out the job.

    Glass should be fine, but id shy away from glues and epoxy type grouts. Go with more classic tile materials since its near the stove. Youd hate to go through all that work to watch glue melt and tiles start to slip off, or runny grout.

    Good luck.
  4. FyreBug

    FyreBug Minister of Fire

    Joined:
    Oct 6, 2010
    Messages:
    771
    Loc:
    Kitchener, Ontario
    I used masonry mesh on the old bricks. Mudded it, since you're using tiles you will have to mud very smooth and straight. This may not be the best method for what you're trying to do.

    Maybe tapcon some cement board on top of your existing surface then lay your tiles? The only thing with that is it will bring your insert forward a little bit if your installing your tiles behind the insert overlay. Food for thought.
  5. Adios Pantalones

    Adios Pantalones Minister of Fire

    Joined:
    May 20, 2008
    Messages:
    6,443
    Loc:
    S.NH- Mass's smoking section
    Most inserts don't seem to heat up the hearth like a woodstove does, as the heat is carried away by the blower air. I can touch every surface around my insert with it running full blast- so I wouldn't think the glass would be an issue. (YMMV with your particular insert)
  6. kettensäge

    kettensäge Feeling the Heat

    Joined:
    Jan 18, 2011
    Messages:
    441
    Loc:
    N.E. PA.


    X2 and I put thinset right over the beige rough surface brick my fireplace was constructed of, no mesh, tapcons, or anything else.
    I did have to use some painters tape to hold the larger pieces on the vertical sufaces. I used 18x18 floor tile cut to size on those surfaces as well as the horizontal surfaces. I'd suspect wall tile will go right on without any issues.
  7. Stump_Branch

    Stump_Branch Minister of Fire

    Joined:
    Nov 12, 2010
    Messages:
    878
    Loc:
    MD
    Mines not hot hot, but can get quite warm to the touch, maybe thats just the slate. To each his own, i like to air on the safe side. Mine floor to ceiling and some quick math would put the added weight between 700-1000lbs. Most of that is in shear too. Not saying its needed, but that could be called a right way of doing things.

    Looks better no matter how you attach however, all can agree with that.
  8. mecreature

    mecreature Minister of Fire

    Joined:
    Dec 16, 2010
    Messages:
    807
    Loc:
    indiana
    mine gets pretty toasty directly above.

    That Osburn 2400 is pretty awesome.

    I used porcelain tiles. Those glass tiles were pricey. but very cool. we looked at tons of them.
  9. kettensäge

    kettensäge Feeling the Heat

    Joined:
    Jan 18, 2011
    Messages:
    441
    Loc:
    N.E. PA.

    True, and the condition of the existing bricks/mortar plays a role. My first impression is that the tile will more likely fall off the thinset rather than the thinset/tile will fall off the bricks.

    My hearth/fireplace is set on the wooden floor framing and is attached to the masonry chimney outside, sitting on a footer. The framing is held up with 2 cinderblock columns and an I beam in the basement, directly under the hearth. I have no frost or settling issues, and had no "live cracks" in the brickwork, so I opted to go right over the brick.
    If the OP has issues with his current set up as is, he will need to evaluate whether or not to use wiremesh or other means to do the job correctly.

    The mason that built my fireplace was very good at masonry but terrible at flashing.
  10. Stump_Branch

    Stump_Branch Minister of Fire

    Joined:
    Nov 12, 2010
    Messages:
    878
    Loc:
    MD
    I have found most good masons fall short in some other areas of carpendry as well. Still wish i knew how though.
  11. dafattkidd

    dafattkidd Minister of Fire

    Joined:
    Dec 11, 2007
    Messages:
    1,566
    Loc:
    Sound Beach, LINY
    Thanks for all th4e great advice, guys. I'm thinking realistically I won't get to this until September, but i want to keep an eye open for discount tiles and material.

    I'll post pics when i get it done.

    Ketensage, looks great. Thanks for the pic.

    mecreature, the 2400 is awesome. I love it. It really cranks out the heat. Do you have any experience with burning in it?
  12. Doing The Dixie Eyed Hustle

    Doing The Dixie Eyed Hustle Minister of Fire

    Joined:
    May 27, 2008
    Messages:
    5,071
    Loc:
    Ridge, LI, NY
    D, if I remember, your fireplace is brick?

    We covered brick with ceramic tiles, I'll ask the Dixette what she used.

    The area over the firebox gets warm, but nothing that scares me. Even with a raging case of "The Revenge of BB" going on with 850 temps on an insert >:-(
  13. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    49,608
    Loc:
    South Puget Sound, WA
    Here's a batch of fireplace tiling links I gathered a while back. It's good to shop for a nice deal on tile, but maybe try to get a premium line of tile that has been discontinued if possible. There is a quality difference between a cheap tile and a decent one. This can be especially important on a hearth where inevitably an occasional log is going to be dropped. A solid porcelain tile should stand up much better than a porcelain coated tile on the hearth.

    http://www.hearth.com/econtent/index.php/forums/viewthread/74514/
  14. dafattkidd

    dafattkidd Minister of Fire

    Joined:
    Dec 11, 2007
    Messages:
    1,566
    Loc:
    Sound Beach, LINY
    Begreen thanks a ton. These links are great.
