Question for any Mini-A Owners

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by LI-Mini-Owner, Dec 26, 2012.

  1. LI-Mini-Owner

    LI-Mini-Owner Member

    Joined:
    Nov 22, 2007
    Messages:
    143
    Loc:
    Long Island, NY
    If someone has has a few minutes, I'd like to confirm that my Mini auger on/off times are correct. I'd like to know the measured on and off times for both heat level 5 (Hi) and level 1 (low). Please note down the Feed Rate Trim setting (which light is NOT on when pressing the Feed Rate Button.

    Backstory:

    I upgraded my Mini to a Mini-A control board a few years back, along with newer burn pot. My control board, model 50-1929 is configurable for many feed rates to match many models of stoves. The configuration instructions are not so clear, but I do think that it set for the "default" which should cover the Mini. By comparing someone's measured numbers to what I get, I can confirm that I'm not over-firing.

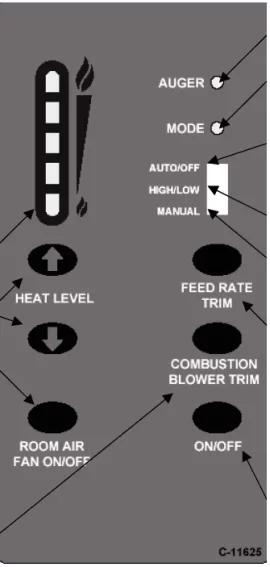

    See p mini-board.png icture of control panel

    Thanks -

    Helpful Sponsor Ads!





  2. Delta-T

    Delta-T Minister of Fire

    Joined:
    Feb 27, 2008
    Messages:
    3,114
    Loc:
    NH
    looks like:

    Setting 1: on 3.0 sec- off 8.5= 11.5 sec for 1 complete on/off cycle
    Setting 5: on 3.0 sec- off 1.07= 4.07 sec for 1 complete on/off cycle
  3. LI-Mini-Owner

    LI-Mini-Owner Member

    Joined:
    Nov 22, 2007
    Messages:
    143
    Loc:
    Long Island, NY
    Thanks Delta - Those are the same times that I get.
  4. Delta-T

    Delta-T Minister of Fire

    Joined:
    Feb 27, 2008
    Messages:
    3,114
    Loc:
    NH
    make sure you're getting that .07 seconds....I'd use a digital chronometer if I was you ;).
  5. bollyRZ500

    bollyRZ500 Member

    Joined:
    Oct 30, 2012
    Messages:
    101
    Loc:
    Chalk River, Ontario
    just checked mine on feed 3: auger green on for ~2.5, off for ~2.5
  6. Delta-T

    Delta-T Minister of Fire

    Joined:
    Feb 27, 2008
    Messages:
    3,114
    Loc:
    NH
    3 should be on for 3.0 and off for 4.07 total cycle of 7.07 sec...assuming you have everything left at the factory default settings.
