Someone help identify this FISHER

Post in 'Fisher Stove Information, Parts, History and More' started by mtn man, Jan 17, 2012.

  1. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Found this Fisher and don't really know what type it is. Wondering if you could help me out? It is missing the original legs and the glass has been replaced with a modified warm morning door as you can see. Has the draft control in the center on the very bottom too. Don't know if it had fire brick or not? Is it a rare find or worth much and can you find some original legs somewhere or know the length of them, they screw I think.

    Attached Files:

    • st.jpg
      File size:
      218.3 KB
      Views:
      505

    Helpful Sponsor Ads!





  2. wooddope

    wooddope Member

    Joined:
    Mar 16, 2010
    Messages:
    131
    Loc:
    southern nh
    It doesn't appear to be a fisher. From what I can make out from the lettering on the door it is a warm morning model.
  3. pen

    pen There are some who call me...mod. Staff Member

    Joined:
    Aug 2, 2007
    Messages:
    7,020
    Loc:
    N.E. Penna
    The door frame is definately a fisher, that thing that says warm morning on it is what someone has added to the unit.

    pen
  4. Stephen in SoKY

    Stephen in SoKY Feeling the Heat

    Joined:
    Nov 20, 2008
    Messages:
    333
    Loc:
    Southern Kentucky
    That's the feed door from an early Warm Morning coal stove bolted to the door.
  5. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,997
    Loc:
    South Puget Sound, WA
    Tis an adaptation. What does the UL label on the right, bottom side of the door say?
  6. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA

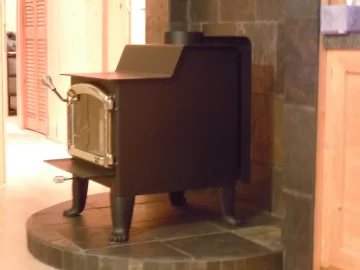

    Late Honey Bear?? If 20" wide. Need the size. Tag readable? The rear shield wraps around like a Grandma, but Honey Bears shields are like that too. (side view of double door shown below from Enduron Corp.) Pedestal cut off or missing legs, like this?
    The leg length in that picture gives you an idea how long to make them.
    Similar to the Fisher Blenheim legs still in production.

    Attached Files:

  7. valley ranch

    valley ranch Feeling the Heat

    Joined:
    Dec 6, 2011
    Messages:
    370
    Loc:
    Ranches in Sierra Nevada mts,Calif & Nevada
    That's a nice find! You see how good coaly's stove looks in the pictures. I'ed put glass in the door and be very happy with it.
  8. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA
    Here you go mtn man, I resized your pictures for you ;

    Yes folks, this is the same stove as shown in the first post in the truck bed ! 001 (2)-001.jpg

    The bottom air intake is due to an available mobile home outside air kit.

    The spring handle needs to be unscrewed about half the handle. With a rag wrapped around the spring end (the end all the way dowm the shaft) grip the last turn of the spring and turn clockwise to unscrew it up the handle rod. This will open the spring and allow it to wind up the handle. If loose, you can normally crush it down to fit the rod tight, and install by pushing on and turning counter clockwise.

    Attached Files:

    • 004.jpg
      File size:
      59.8 KB
      Views:
      213
    • 002.jpg
      File size:
      46.8 KB
      Views:
      188
  9. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA

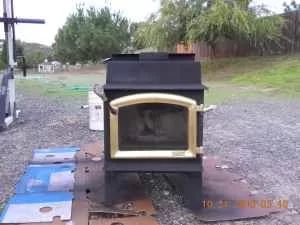

    I don't have a better picture than the one shown above from Romona CA. for the legs you need. I blew it up in Picasa, and by measuring the top being 20 inches wide, the legs calculate to about 8 inches.

    Here's the bottom shield that pinches between the stove bottom and legs. Shields in prints call for 22 ga. cold rolled steel.
    The legs were formed round to match the stove corner's radius. So if you use angle iron, it won't look quite right. At least you know you can stack bricks up about 8 inches high and set it on them for proper floor clearance.

    Attached Files:

  10. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Just wanted to give an update on the refurb on this Fisher Honey Bear. Took alot of time but the looks of it was well worth it.
    1125121536_0001 (1).jpg
  11. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA
    58553-06ff4b5e4e9d307a25d3755223b69e33.jpg 1125121536_0001 (1).jpg

    Wow, more pics with more light ! You're such a tease.
  12. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    st.jpg wood stove 157.JPG

    wood stove 159.JPG wood stove 152.JPG

    I just wanted to bring you all up to date on bringing this old stove back to life. Took alot of time but think it was well worth it. Just waiting on stove pipe to come to get it hooked up so we can fire it up and see how it performs.
  13. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    fbelec said:
    nice job. that looks like a brand new stove. one question. where is your primary air control now that the door is glass? can you post a picture of your art work on the door?


    The stove originally had a glass door in it. Air control is from handle below ash pan. Will post a pic of glass too. Thanks​
  14. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Ducks in a field on the glass
    Attached Files:

    [​IMG]
    photo 2 (2).JPG

    Thanks to Coaly for all the info he has given and the advice along the way. Has answered many ? for me as I was clueless to what this stove was and if it was even worth fixing.
  15. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Thanks Coaly, hope this worked what I did. Do you have pics from the one in England? I have the one from Romona CA you sent. You would think there would be more of these out there somewhere or talked about.
  16. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA
    Stove looks great. Let us know how well and IF the glass stays clean when you get to using it. Never had any feedback on the operation of this model from anyone!

    Haven't found the pic that was sent to me quite a while ago from the UK.

    Frank; Here's a bottom view of the air intake on his stove. There was a mobile home installation kit to connect to an outdoor air supply under the mobile home. (Galvanized pipe with "rodent guard" screen supplied in kit by Dura-Vent). There were regular Honey Bears UL listed for conventional homes, and UL listed, HUD approved Honey Bears for use with or without the mobile home kit. To use the mobile approved stove in a conventional home, you simply allow it to use indoor air through the bottom intake.

  17. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Got the flue pipe installed today and just started the first fire in it. Hopefully all goes well. Took a little while for it to get started but is going good now. The air wash for the door seems to be working good so far and is putting some nice heat off too. Guess the gas company won't like me too much anymore.
  18. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA
    Firebrick absorbs moisture from the atmosphere, and new brick is even higher in water content, so after a few fires it will feel like it's putting out more heat without doing anything different.

    My first fire in a new Fisher back in 1985 had me wondering if it was going to heat the house that first night. I thought all this work for this little bit of heat ? After the second night it drove us out burning it the same way.
  19. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Thanks Coaly for all the good advice. Put off some nice heat throughout the night and still had coals in this morning to get started again. Have to leave the door cracked to get it going good first then it does pretty good. Seems like it doesn't get enough air at first as it comes up in front of the glass and goes up. I guess it was designed this way for the air wash for the glass. It will take a while and some experimenting to see how it performs best. Also seems to burn towards the front too for some reason. Puts out some good heat though. What should the stove temp run as I have double wall all the way and can't check the pipe temps. First level ran around 625 for a long time even after closing the air almost off. I don't believe you can shut the air all the way off either cause it has a notch cut out in it. I think it is like the t88 I believe. You would know more about it than I on the design of it.
  20. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA
    Give the chimney, pipe and installation credit for how it burns, it's not just the stove. Good temps, I'm sure it likes the double wall pipe keeping the temps up where it enters the flue.

    Yes, it will burn down to ash in the front where there is the most oxygen. Always leave about an inch of ash on the bottom, and remove some from the front each day, then rake the coals forward and reload on it. That's the only time I used the screen. (Goldilocks) Damper wide open and kindling on top of the coals started it right up, and never had to let the coal pile burn down or go out completely to clean ash.

    I'd like to know more about the design of it too. I'd imagine the controlled air leak would allow air flow over the glass if closed down fully when too hot, and not allow the air flow to totally stop across glass allowing smoke particles to touch glass.
  21. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    47
    Loc:
    Western North Carolina
    Great point and I agree. May even be designed like the Goldilocks too. Does it look like the one in the above pic too? The air intake shield comes up and turns on a 45 degree towards the glass and has 3 oblong holes about an inch long on the straight piece before the 45 angle. The 45 angle is about a 1/2" up on the glass and sits off about a1/2" too. The smoke shelf seems pretty big too. It sits on a 45 degree too and has about 2 1/2" space where it comes to towards the lower level and is pulled down in the front center a little too. Will take some pics and post soon.
  22. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,488
    Loc:
    NE PA
    No, Goldilocks only had solid doors with an air intake across the entire front, inside, behind the doors. It has an airspace under the firebox floor with a channel leading from the pedestal to the intake slot. (All air comes up through 4 sided pedestal from below mobile or manufactured home) The air adjustment is a flapper UNDER the air slot that is adjusted by the left draft knob on the door. Turning the knob left, allows the flapper to drop open, same as opening door. (the right knob does not turn and is only on the right side door to make the doors appear the same) The knob is double nutted on a 1/2" threaded bolt that screws in and out of the door, that opens the flapper in the stove . By opening the door, the flapper opens fully.

    Notice stud through left door with tab welded on flapper sticking up that adjustable stud length opens flap across stove;
    goldilocks 10-8-80 2.jpg

    This is the trade marked Bear-O-Matic draft control;
    1) Outside air inlet must have same cross sectional area as flue collar.
    2) Outside air comes up through pedestal and is preheated in chamber under fire bed.
    3) Air regulator provides very precise temperature control utilizing vernier (calibrated) control mechanism.
    4) When doors are opened, the air control automatically returns to full open position.
    5) When doors are reclosed, the air control "memory" returns the stove to the previous setting.

    Bear-O-Matic Draft Control.JPG

    There is also an ash clean out door under the stove to access under the flap and the preheat chamber. Ash from dropping into intake when doors are open accumulates under flap, but doesn't get into air inlet under stove. Many people think this is an air intake of some sort, but it needs to be closed to prevent use of indoor air. There are 2 wing nuts to keep this trap door under the stove front closed.

    Page 4 from the manual below shows a cutaway of air intake;
    (Installation in a conventional home requires the base to lifted on spacers 1 inch off the floor to allow indoor air into the hollow pedestal)

    Attached Files:
