Post in 'The Boiler Room - Wood Boilers and Furnaces' started by 4mla1fn, Jan 24, 2013.

  1. 4mla1fn

    4mla1fn Member

    Joined:
    Jan 16, 2012
    Messages:
    10
    Loc:
    md

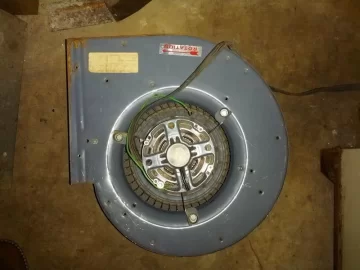

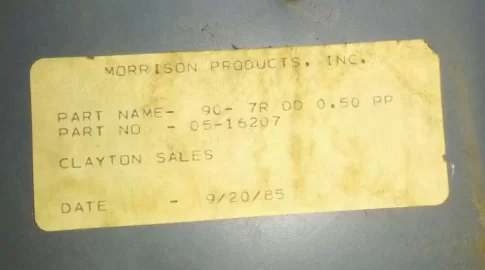

    well, looks like the blower on the back of this circa 1983 clayton 7.1 furnace is about dead. and it's 16 degrees outside. :) anyone have any ideas of how to go about finding a replacement. i've called around to HVAC and some woodstove places in the area (zip: 21078) but no luck. i've thought about a motor rebuild, but figure that could take several days, which i'd rather avoid. thanks.

    Attached Files:

    Helpful Sponsor Ads!





  2. Fred61

    Fred61 Minister of Fire

    Joined:
    Nov 26, 2008
    Messages:
    1,857
    Loc:
    Southeastern Vt.
    Grainger is usually the best source for replacement fans. They may be able to cross reverence the part numbers.
  3. 4mla1fn

    4mla1fn Member

    Joined:
    Jan 16, 2012
    Messages:
    10
    Loc:
    md
    thanks very much. y'know, grainger.com was the first place i checked but no knowing about blowers/motors etc, i thought maybe hvac or wood stove place might be a surer source. not so. i also called us stove. they wanted $380 + overnight shipping ($$$). (their part # is 69160 for future reference.) i then called grainger on your recommendation. got a really helpful rep (miguel); i sent him pics and specs; he got tech support on the line also (jim). they found a motor, mounting bracket, and they recommended adding a capacitor, so that'll be an upgrade of sorts. total $180. i'll pick it up in town this afternoon. we should be back to normal by this evening if all works out. (i'll post grainger part numbers once it's all working.) thanks again.
  4. Fred61

    Fred61 Minister of Fire

    Joined:
    Nov 26, 2008
    Messages:
    1,857
    Loc:
    Southeastern Vt.
    Hopefully this will have a happy ending tomorrow. Glad to help!
  5. 4mla1fn

    4mla1fn Member

    Joined:
    Jan 16, 2012
    Messages:
    10
    Loc:
    md
    following up...the install went smoothly last evening and the house was toasty shortly afterwards.

    for posterity, here's what i ordered (grainger part numbers) and relevant notes:

    motor: 4KA43 (a.o. smith 322P490)
    motor mounting bracket: 2mey5
    run capacitor: 2mdv6
    capacitor mount: 2mev1

    the motor mounting bracket, though spec'd for a 5" motor, which the 4KA43 is, was too large by about 1/4". following a grainger rep's advice, i put two wraps of an old bicycle inner tube around the motor (making sure not to block the airflow holes) and it cinched down very nicely.

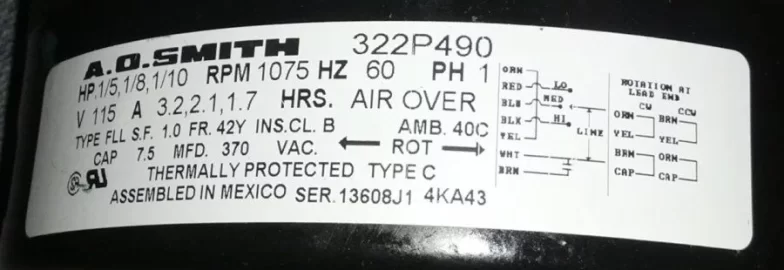

    i also double-checked with a grainger tech that i correctly understood how to wire the motor for CCW rotation (when viewed from the lead side/back of the motor). the motor came configured for CW (yellow and orange crimped together) so i cut that connection, shorted yellow with brown and put orange to the cap. (see motor label pic below.)

    i also picked up some female spade connectors at home depot. i already had a crimping tool. the job is a piece of cake. since the wires are all separate, it makes for kind of a messy installation. i'm going to look for some loom to neaten thing up a bit. now i just need to remember the next time i have to mess with the motor (for whatever reason) to ensure the cap is discharged.
