what size chain?..its wore off bar

Post in 'The Gear' started by steeltowninwv, Feb 19, 2012.

  1. steeltowninwv

    steeltowninwv
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 16, 2010
    Messages:
    767
    Likes Received:
    220
    Loc:
    west virginia
    the writing is wore off the bar telling what size chain i need..its a ms170..i know the standard for this saw..but i wanna make sure

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. mywaynow

    mywaynow
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 13, 2010
    Messages:
    1,369
    Likes Received:
    367
    Loc:
    Northeast
    MS 170 Chain Saw

    DISPLACEMENT
    30.1 cc (1.8 cu. in.)

    ENGINE POWER
    1.3 kW (1.7 bhp)

    WEIGHT (powerhead only)
    3.9 kg (8.6 lbs.)

    FUEL CAPACITY
    250 cc (8.5 oz.)

    CHAIN OIL CAPACITY
    145 cc (4.9 oz.)

    Per Stihl site:

    OILOMATIC® CHAIN
    3/8" PMM3

    GUIDE BAR LENGTHS
    (Recommended ranges)
    30 to 40 cm (12" to 16")
    STIHL ROLLOMATIC® Mini

    Note: STIHL recommends #3610 (61 PMM3 55) OILOMATIC® saw chain and 16" 3005 008 3913 guide bar combination.

    Collapse Signature Expand Signature
  3. steeltowninwv

    steeltowninwv
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 16, 2010
    Messages:
    767
    Likes Received:
    220
    Loc:
    west virginia
    the chain thats on it....is marked on the links stihl c and pm..i guess its 14 inch bar....but my main question is the guage and drive links

    Collapse Signature Expand Signature
  4. TreePointer

    TreePointer
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 22, 2010
    Messages:
    2,664
    Likes Received:
    1,073
    Loc:
    Western PA
  5. bogydave

    bogydave
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 4, 2009
    Messages:
    8,426
    Likes Received:
    3,446
    Loc:
    So Cent ALASKA
    Count the drive links. Usually an even number.
    The saw shop by me makes chain all the time, they want the old chain & count the drive links & make a new chain with that many drive links.

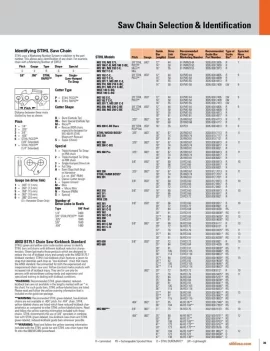

    61 PMMC3 50 ---
    6 = 3/8 pitch
    1 = .043, bar grove width
    P = Picco
    M = micro
    M = mini
    **They just quit using "C" as an identifier on the latest chart.**
    3 = Single-Humped Drive Link
    50 = Drive links

    Stihl; chain:
    http://www.stihlusa.com/chainsaws/types.html


    Attached Files:

    Collapse Signature Expand Signature
  6. MasterMech

    MasterMech
    Expand Collapse
    Guest

    The "C" used to designate a "Comfort" chain. "C" chains had slightly angled the cutter links to reduce vibration. I think thats universal for all their chain now.

  7. MasterMech

    MasterMech
    Expand Collapse
    Guest

    Manually count the drive links and measure the thickness of your drive links with a cheap veneer caliper. Easiest way to know 100% what you have. Measure drive link thickness at the point between two tie straps.

    http://www.harborfreight.com/6-inch-digital-caliper-47257.html
