catalyst thermometer recalibration? blaze king princess

[WV Homestead]

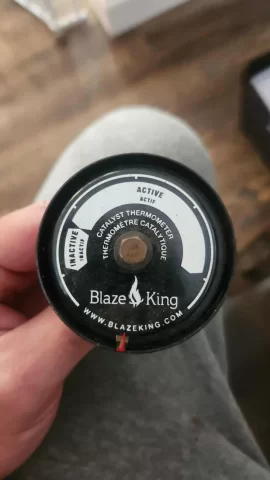

hey all i was reading through my manual and it said that this can be recalibrated. when i first got the stove i feel the dial was pointing to the b in the www.blazeking.com at the bottom of the probe. in the manual it says u can back off the bolt on top of the probe and re adjust to the bottom of the inactive zone then retighten. i am curious how you other guys and gals probes look are they pointing close to the inactive spot? thank you all in advance.



[begreen]

N

Thread 'Catalyst Thermometer calibration and question'

Sep 24, 2024

I am getting my one year old Princess ready for the burning season. I pulled the thermometer to wipe it down as per the manual.

The indicator was a little loose and out of place, so I reset it to the bottom tick of the the inactive zone, which I believe is what the manual suggests, though it does not mention the tick mark.



My other concern is that the bottom side of the thermometer housing spins freely. I just want to confirm with others whether your lower housing spins or if it is fixed in place. What is throwing me off is that it almost looks like that opening slit has an...

• Nateums
• Replies: 4
• Forum: Blaze King

T

Thread 'Calibrating the thermometer gauge'

Nov 1, 2024

Hello. I'm at the beginning of burning season and trying to make sure my thermometer gauge is correctly calibrated for our Ashford 30. Most of the photos I've seen here are with a different gauge than what I have (mine is about 1 year old). At room temp the needle is below the Inactive zone a small amount, photo below:

Should I be adjusting it so the needle is at the bottom of the Inactive zone, or leave it as-is?

Thank you very much!

• tsh2002
• Replies: 27
• Forum: Blaze King



[WV Homestead]

thanks
