Clayton 1800 thermostat not connected

  • Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.

    We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.

    We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.

Salmonhound

New Member
Oct 26, 2021
1
Michigan

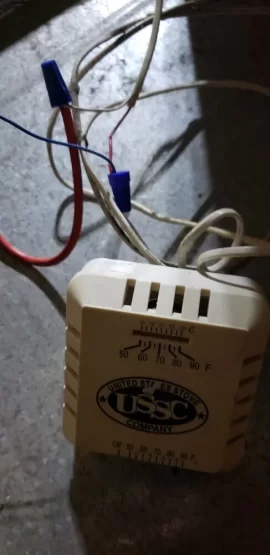

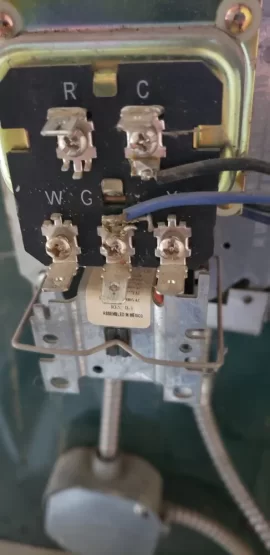

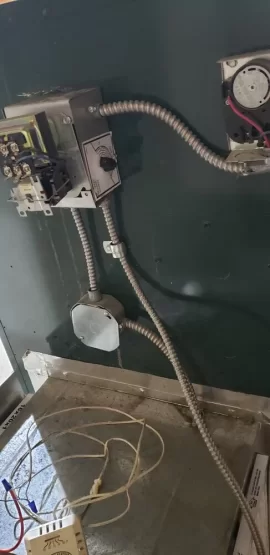

I just bought a house that has a Clayton 1800 wood burner with a blower. It is duct into the existing furnace already and has been used in the past. Wiring is disconnected and I can figure that out. What I dont know is the thermostat is disconnected from the back of the unit. What is its function as far as the fan function, unit has a manual switch for a 3 speed fan, and regulating heat? How do I connect the thermostat that is disconnected? Should I upgrade this thermostat? Why are there two thermostats? Any help would be great.

20211026_191638.jpg 20211026_191607.jpg 20211026_191506.jpg 20211026_191519.jpg


brenndatomu

Minister of Fire
Aug 21, 2013
6,751
NE Ohio
Page 12 is your wiring diagram.
The thermostat needs to mount on the wall somewhere toward the center of your living area...it controls the draft motor (fan or damper, depending on the exact model)

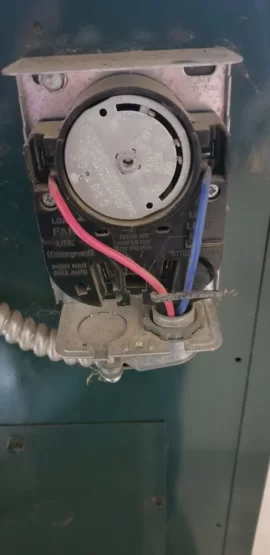

That "thermostat" on the furnace is your Honeywell fan control/limit switch and should be mounted on/in the supply plenum. It controls when the house/duct blower kicks on/off and also kills power to the draft motor if things get too hot.
The 3 speed control just controls the speed of the house/duct blower so to match how much airflow is needed for your house...shouldn't have to mess with it much...just keeps you from having to change speed taps on the blower motor to change blower speeds...which is normally a set it and forget it procedure.
