Earth Stove Model 710

  • Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.

    We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.

    We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.

asulwer

New Member
Sep 8, 2021
5
arizona

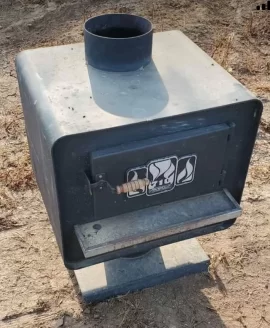

metal tag on back of stove states, as title says, Earth Stove model 710. i know nothing about it or how to accurately use it. total beginner here with any stove! low/mid/hi air flow adjuster under door. no other air flow adjuster. no glass window. nice big cavity for wood, 8" flue. anyone have any experience with this stove? i saw a few discussions on Earth Stoves but none like mine.

sorry the pics are not better. i can attach better ones when i am near it again

IMG_0327.JPG IMG_0328.JPG


Blazzinghot

Member
Dec 5, 2019
153
New Plymouth, Idaho
This stove is almost identical to the Pineridge stove I fixed up and sold. The Pineridge has the air control on the front instead of the back. where is the air control on your stove? What do you want to know about this Earth Stove?

Door Open .jpg


asulwer

New Member
Sep 8, 2021
5
arizona
This stove is almost identical to the Pineridge stove I fixed up and sold. The Pineridge has the air control on the front instead of the back. where is the air control on your stove? What do you want to know about this Earth Stove?

View attachment 281773

Air control is in the same spot as yours. i have low/mid/hi setting for air flow. no glass door like yours. i wonder if i could add glass to my door? does yours have an 8" flue?

i have never used a stove like this before so i know nothing about them. especially how to properly use. it has instructions on the back for how far away from combustibles its must be, so that makes installation easier. stove pipe all the way up until i am 18 inches from combustibles, then class-a pipe the rest of the way.


Blazzinghot

Member
Dec 5, 2019
153
New Plymouth, Idaho
It is just to amazing to me that these stove are so much alike from two different companies. I was just looking though my pictures from when I re-did this stove and noticed the hook for the handle is exactly the same as the Earth stove.

Yes, this stove had an eight inch pipe as it is a little larger stove and needs a good draft. You can put in a window if you want but check to see how the air enters the stove from the inside. On my stove the air was blowing up on the glass as it entered the stove. This was not working all that well as the window had gotten so hot it looked like a skin on a orange or it could have just been poor operator using the stove wrong. I put in a new window and welded a plate inside the stove to direct the air away from the window. I did not keep the stove long enough to see how long the window stayed clean. But it stayed clean during the tests. Sometimes a hot fire will clean of the smoke from the glass but don't expect these older stoves to have a clean window for very long.

As far as using the stove it depends on how it was built inside. A picture of the inside top of the stove would be helpful. But lets just say the stove is an open box then you will need a 8" damper on the stove pipe coming out of the flue.

Lighting your first fire.

First make sure your air control under the door is open or on high then start you kindling and keep the door cracked as the fire is going. Then start putting on more wood to you get good fire going. At this point you can add more wood and close the door and then let the fire get really cooking. When the stove gets a good bed of coals then you can adjust the damper on the flue as needed. Then you can adjust the low, medium or high to adjust how warm you want your home. I am sure some of these guys can add some pointers as I have not used one of these older stoves on a regular basis so they could give you some more help.

As nice as this stove looks and you wanting a window you might check around for a more modern used EPA rated stove. It will save big time on firewood. Just a thought.

  • Like
Reactions: asulwer

asulwer

New Member
Sep 8, 2021
5
arizona
it doesnt sound like a window is going to work. it was more of a thought.

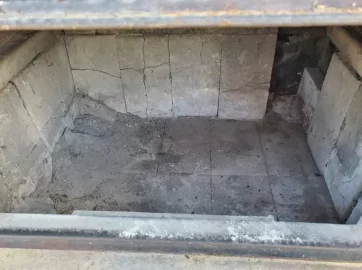

yes the stove is a box. there appears to be short ledges about half way up on the two sides a back. fire brick is under the ledge and lines the three sides and bottom. i wonder what the ledge is for? i can see a similar ledge on the back of your stove too. i assumed a damper on the pipe would be necessary, its good to get confirmation


begreen

Mooderator
Staff member
Nov 18, 2005
89,675
South Puget Sound, WA
Some stove companies put out a stove that is sold under multiple names.


Blazzinghot

Member
Dec 5, 2019
153
New Plymouth, Idaho
This is certainly a good example of one type of stove with two different names.

asulwer, Not sure what you are describing about the legs. I know the older EarthStoves had a two small pipes going down into the stove on the back wall which was secondary air.

Glad you found my post on this stove. It was a rusty beast when I first got it. But it polished up nice. Let us know when you get your stove fired up.

I am pretty sure the damper is necessary as it keeps the fire from disappearing up the stack.


asulwer

New Member
Sep 8, 2021
5
arizona
This is certainly a good example of one type of stove with two different names.

asulwer, Not sure what you are describing about the legs. I know the older EarthStoves had a two small pipes going down into the stove on the back wall which was secondary air.

Glad you found my post on this stove. It was a rusty beast when I first got it. But it polished up nice. Let us know when you get your stove fired up.

I am pretty sure the damper is necessary as it keeps the fire from disappearing up the stack.
not legs, a ledge. the ledges run parallel to the bottom, about halfway up from the bottom, on both sides plus back. you can see one ledge right above the fire brick, in the back, in your pic
