manometer accuracy

paulmars Posted By paulmars, Feb 12, 2018 at 11:21 PM

  1. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    What is a good reasonable priced accurate manometer to measure my barometric damper?

    My furnace should be 0.025 and my flue should be -0.02. Looking at the gauges for sale i see accuracy (read
    inaccuracy) ratings that would make readings in the range that I need almost useless. Exp:

    0.3% of full scale 55.00wc (0.003x55=0.165) Does that mean that a reading of 0.02 could be off by as much as

    0.165?

    +/-0.3% of full scale 83.02 InH2O NKTECH NK-L3 (0.003x83.02=0.249)

    ±1.5% of full scale 4.00wc Dwyer 478A-0 (0.15x4=0.6)

    Am I doing something wrong here?


    tks,
    pa

  2. semipro

    semipro
    Minister of Fire 2.
    NULL


    Jan 12, 2009
    3,387
    576
    Loc:
    SW Virginia

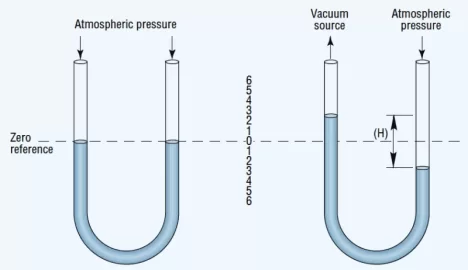

    If you're just looking for something to use once how about building one out of clear tubing, some water and food coloring. All that matters once its connected is the difference in height between the water level in each end of the tubing.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    Dwyer Mark II model 25...$25-30 on fleabay

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  4. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
  5. peakbagger

    peakbagger
    Minister of Fire 2.
    NULL


    Jul 11, 2008
    3,756
    958
    Loc:
    Northern NH
    I used to do large power plant size boiler testing on occasion and my go to manometer was clear vinyl tubing and food coloring. The trick is to mount the tube on a piece of plywood so its sloping at a shallow angle to accentuate the difference in the water levels. A draftsman's tee or dry wall tee makes good tool to mark reference lines on the plywood assuming it cut square. Nice thing about water manometer is there is no required calibration.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  6. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    i had considered making a unit, but for 25$ that dwyer is available. I dont understand how a home made would be more accurate.

  7. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    I tried the homemade one...didn't work...bought a Dwyer 25 and done.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  8. semipro

    semipro
    Minister of Fire 2.
    NULL


    Jan 12, 2009
    3,387
    576
    Loc:
    SW Virginia
    I'm not sure how a tube filled with water doesn't work but at that price, I think I'd go with the Dwyer too.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    dwyer mark II 25 +/-3% of FS 3.0 is 0.09

    so, if it read your pressure at 0.03, that could really be anywhere from -0.06 to 0.12 and fall within the specified accuracy of 3% FS. Now i really doubt that it would swing negative for a positive pressure, so we could effectively limit that range to 0.00001 to 0.12 which is still an awful large range.

    pa

  10. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    Yeah, I couldn't believe it either...but it didn't work...at all.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  11. semipro

    semipro
    Minister of Fire 2.
    NULL


    Jan 12, 2009
    3,387
    576
    Loc:
    SW Virginia
    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  12. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    semipro likes this.
  13. semipro

    semipro
    Minister of Fire 2.
    NULL


    Jan 12, 2009
    3,387
    576
    Loc:
    SW Virginia
    A column of water is pretty sensitive. Did the Dwyer work well? I'm guessing the pressure difference must have been really low.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brenndatomu likes this.
  14. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    Yes, still using it everyday...I have it permanently mounted for my wood furnace chimney...always check it after every load, just to make sure everything is dialed in...I've caught the barometric damper sticking more than once this way.
    Well, many/most wood furnaces call for -0.04 to -0.06" WC column draft....so, yeah, needs to be very sensitive...I've heard of some that spec -0.02" as the minimum! !!!

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    semipro likes this.
  15. woodgeek

    woodgeek
    Minister of Fire 2.
    NULL


    Jan 27, 2008
    4,056
    810
    Loc:
    SE PA
    I faffed around with water manometers for years, and home-made ones are useless below 0.2". The water makes a curved meniscus, and the meniscus has friction at the contact line on the walls of the tube (unless its chemically treated).

    I got a Dwyer off FleaBay and never looked back. Just gotta mount it steady and zero it.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brenndatomu likes this.
  16. Ashful

    Ashful
    Minister of Fire 2.
    NULL


    Mar 7, 2012
    12,155
    5,405
    Loc:
    Philadelphia
    One word: Magnehelic, made by Dwyer. I wouldn’t even bother looking at anything else.

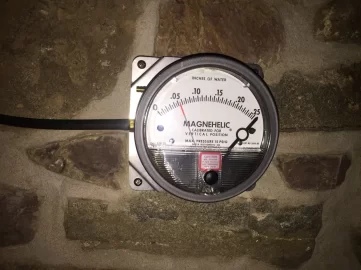

    I have a few, in different ranges. I even mounted one, 0.25” WC full scale, on the wall behind my stove.


    I’m headed out to my shop after lunch, to measure crankcase vacuum on a Kawasaki OHV v-twin, with my 5” WC magnehelic. Incredibly useful tools, IMO.

    Lunch is cheese and hard salami with Triscuits and some green olives, with a Weyerbacher Merry Monks to wash it down. Life is good.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  17. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    been looking at used
    2300-00 0.125-0-0.125" w.c.
    2300-0 0.25-0-0.25" w.c.
    2301 0.5-0-0.5" w.c.

    However, inst sheet says:
    "Diaphragm in vertical position. Consult factory for other position orientations."
    and: "Ranges below 17.5 in w.c. should be ordered using the –TA tilt angle option with the angle specified."

    ???

    p

  18. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    and they still more pricey and Im generally scared of used.

  19. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    Why's that?
    The Dwyer Mark II model 25 is a cheaper/simpler (more reliable?) device that is more than adequate for checking chimney draft

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  20. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
  21. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    Have any in my wc range that you want to sell?

    pa

  22. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,179
    936
    Loc:
    NE Ohio
    One just like that on fleabay pretty cheap right now...1 hour left, zero bids, $24.99 min. bid https://www.ebay.com/itm/Dwyer-Magnehelic-Pressure-Gauge-Model-2000-0-0-25in-includes-static-tip/173166970609?hash=item28518e46f1:g:OrMAAOSwWVhaifjS

    But I still think the model 25 is more than good enough for checking draft on a wood stove...heck, most people never even put a gauge on their chimneys...but if you can find a magnehelic for same/similar money, meh, whatever floats your boat...

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  23. Ashful

    Ashful
    Minister of Fire 2.
    NULL


    Mar 7, 2012
    12,155
    5,405
    Loc:
    Philadelphia
    Family used to own an HVAC business, so I grew up seeing Magnehelics in the office. Standard tool in the industry. Every HVAC contactor carries them.

    Those water-based manometers I've seen a few here discuss are science project BS. They work, but it's awful hard to measure 0.05" WC with one.

    The Mark II 25 may work just fine, I'm not familiar with that one. But it looks like a homeowner-grade substitute for the Magnehelic, and they seem to go for $35, which is the same price as a used commercial-grade Magnehelic.

    Nope, but I picked up the two I have now on ebay. On is 0.25" WC for measuring chimney draft, the other is 5" WC for measuring crancase vacuum and other general purpose stuff. I think I paid $35 for each of them, and one came with a carrying case and stand.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  24. paulmars

    paulmars
    New Member 2.
    NULL


    Feb 10, 2017
    30
    0
    Loc:
    fl
    I need to measure -0.02 and +0.03wc.

    mount it inclined 10:1 for 10 times the resolution. https://www.amazon.com/Yellow-Jacket-78075-Water-&tag=hearthamazon-20
    Manometer/dp/B0038QHTK2/ref=sr_1_5?ie=UTF8&qid=1520466840&sr=8-5&keywords=manometer

    its graduated at 0.25 intervals and you can easily judge 1/5 of that. So, 0.25 included 10:1 the 0.25 would then be 0.025 and I could fairly accurately judge 1/5 of that or 0.005.

    thoughts?
