MK auger motor mod

[funflyer]

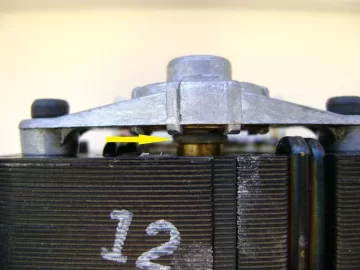

Another Merkle-Korff annoyance made good with a little reengineering. After listening to the motor go "thunk" everytime it cycled on, I decided to look into why. Seems that there was too much movement (.040") in the rotor between the outer bushing and internal gear so everytime the motor cycled on, it would force the rotor outward and would hammer it against the bushing. A fiber washer sanded down to just the right thickness was all it took to make things quiet.



[SidecarFlip]

Another Merkle-Korff annoyance made good with a little reengineering. After listening to the motor go "thunk" everytime it cycled on, I decided to look into why. Seems that there was too much movement (.040") in the rotor between the outer bushing and internal gear so everytime the motor cycled on, it would force the rotor outward and would hammer it against the bushing. A fiber washer sanded down to just the right thickness was all it took to make things quiet.

View attachment 153569

Thats because your compound triple reduction gearbox input shaft (the extended armature shaft) has helical cut teeth on it. If they were straight cut, there would be no reverse thrust, hence, no clunk.

A hardened steel shim waher of appropriate thickness will last longer. The MK outer bearing assembly is substantially heavier and retains more lubricant that the Gleason-Avery counterpart btw.



[Bioburner]

Don't like the built in hopper shaker?



[SidecarFlip]

Don't like the built in hopper shaker?

I like it.............



[funflyer]

A hardened steel shim waher of appropriate thickness will last longer.

There was two shims in there and I left them between the fiber washer and bushing. The fiber washer is a pressed fit on the rotor so there should be no additional wear.
