What is the nature of the physical damage that this conduit is likely to experience? Lawnmower? Car? Projectile firewood? Nothing?
pulling THWN wire through long conduit, which type to use, how difficult ?
- Thread starter RustyShackleford
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.
Nothing specific. It's just that it's at lower-leg level on the front face of a 6x6 at the end of the catwalk to the house. Pretty sure that's "subject to damage" or whatever the NEC wording is. And for such locations, pretty sure Sch40 PVC is not code-compliant. But people here seem to think it's largely ignored, so maybe I won't worry about it.
Actually, it's liquid-tight that is coming up the edge of the 6x6 now. Was thinking I should at least replace that stretch with conduit, and if conduit, why not Sch80 ? Except I'm too cheap to pay $30-40 for a 10ft stick of 1" Sch80 and only use 2-3ft.
I think maybe the simplest thing to do (besides nothing) is just to surround the liquid-tight with a piece of EMT.
Last edited:
Sure, if it gives you peace of mind, sleeve the conduit inside a larger piece of conduit. Or protect it some other way. "Subject to damage" is subjective. You are the inspector, so just ask yourself what you think will be adequate to prevent it from getting broken.
In reality, sch40 PVC is very tough stuff and unless it's right along a driveway where you could smack it with a car, I wouldn't be worried about it.
In reality, sch40 PVC is very tough stuff and unless it's right along a driveway where you could smack it with a car, I wouldn't be worried about it.
Ashful
Minister of Fire
Careless or inexperienced hands on the controls of a zero turn mower, weed trimmers, etc.
if you are going to sleeve the liquid tite in emt why not just use the emt without the liquid tite? besides if you use any type of metal to carry the conductors it will have to be bonded with the ground. i hit my pool pvc every time i weedwack and don't have a problem.
I don't have any experience with EMT (except as deck railing). So I just can't figure out how to transition from the liquid-tight to EMT. I don't see any female adapters for EMT listed. (I'd still have EMT coming from where the PVC ends under the catwalk, to negotiate the weird angles coming up towards the EVSE. But I'd cut it off and transition to EMT, if I could figure out how).
Surely if I surround PVC with EMT for protection, that EMT doesn't need to be grounded.
brenndatomu
Minister of Fire
I can't find such a thing. Unless you mean a compression type, but do those work for liquid-tight ? As best I can tell, liquid-tight doesn't have a standard O.D. but is usually larger than EMT.
Halex 1 in. Electrical Metallic Tube (EMT) Rain Tight Coupling 62610 - The Home Depot
The 1 in. Rain-Tight Coupling is ideal for securing and bonding 2 lengths of EMT conduit together in a wet location. The galvanized-steel construction is insulated and up to code. It is highly corrosion
www.homedepot.com
Also, the EMT conduit bodies seem to have a socket with a set-screw. So I'd transition from liquid-tight to a short piece of EMT with the double-female compression thing ? Or maybe the liquid-tight can go straight into the set-screw opening in the LB ? Sorry to be dense ...
brenndatomu
Minister of Fire
I can't find such a thing. Unless you mean a compression type, but do those work for liquid-tight ? As best I can tell, liquid-tight doesn't have a standard O.D. but is usually larger than EMT.
Halex 1 in. Electrical Metallic Tube (EMT) Rain Tight Coupling 62610 - The Home Depot
The 1 in. Rain-Tight Coupling is ideal for securing and bonding 2 lengths of EMT conduit together in a wet location. The galvanized-steel construction is insulated and up to code. It is highly corrosionwww.homedepot.com
Also, the EMT conduit bodies seem to have a socket with a set-screw. So I'd transition from liquid-tight to a short piece of EMT with the double-female compression thing ? Or maybe the liquid-tight can go straight into the set-screw opening in the LB ? Sorry to be dense ...
Sigma ProConnex™ 3/4" EMT Rain Tight Compression Connector
The Sigma ProConnex Rain-Tight EMT Compression Connectors are used to secure and terminate steel EMT conduit to an outlet box or enclosure in a dry or damp location. They are recommended for indoor and outdoor applications and approved for concrete-tight applications.
www.menards.com
as far as it is up here in mass if current carrying conductors run thru it it does
leave the oring on don't use pipe dope it is not code compliantTake the nut and oring off, connect it to the liqi tight fitting with a simple female x female connector...use pipe dope on it for rain tightnessSigma ProConnex™ 3/4" EMT Rain Tight Compression Connector
The Sigma ProConnex Rain-Tight EMT Compression Connectors are used to secure and terminate steel EMT conduit to an outlet box or enclosure in a dry or damp location. They are recommended for indoor and outdoor applications and approved for concrete-tight applications.
with emt you always use compression fittings outside never use the screw type of fitting they are not waterproof
fittings like these
https://www.homedepot.com/p/Carlon-3-4-in-PVC-Female-Adapter-E942ER-CTN/100404044
anything that is metal on that run has to be bonded with the ground
like a pool. inground the metal stairs has to be bonded even tho the ladder or stairs or hand rail is across the other side of the pool if it's metal it has to be bonded with the motor that is a weird for instance but i just did one 😁
fittings like these
https://www.homedepot.com/p/Carlon-3-4-in-PVC-Female-Adapter-E942ER-CTN/100404044
Southwire 1/2 in. Liquidtight NM Straight PVC Conduit Fitting Connector (5-Pack) 58617002 - The Home Depot
Southwire's Non-Metallic Liquid Tight Connectors are made to use with Type B Non-Metallic Liquid Tight Conduit. There is no threading of conduit or tubing required. Southwire's connectors give a superior
www.homedepot.com
Carlon 1/2 in. 90-Degree Non-Metallic Liquid Tight PVC Fitting (1-Piece ) LN20DA-CTN - The Home Depot
1/2 in. Liquid tight Conduit 90 fitting is a simple, 1-piece body design. Fitting requires no disassembly of components for installation making it easy to install. The fitting is strong enough on its own that there is no need for a compression nut making this fitting economical. The durable PVC...
www.homedepot.com
Arlington Industries 3/4 in. 90° NMLT Push Connector (1-Pack) NMLT907-1 - The Home Depot
SNAP2IT Non-Metallic Connector 3/4 in. NM liquid-tight connector. Save time and money with SNAP2IT fittings. They offer the fastest, easiest installation on Liquid-tight conduit. You'll get a super-secure,
www.homedepot.com
Halex 3/4 in. Electrical Metallic Tube (EMT) Rain Tight Connector 26252 - The Home Depot
The 3/4 in. Rain Tight Connector secures and bonds EMT conduit to a steel outlet box, load center or other metal enclosure in a wet location. The galvanized-steel construction is insulated and up to code.
www.homedepot.com
anything that is metal on that run has to be bonded with the ground
like a pool. inground the metal stairs has to be bonded even tho the ladder or stairs or hand rail is across the other side of the pool if it's metal it has to be bonded with the motor that is a weird for instance but i just did one 😁
Ashful
Minister of Fire
I would not be putting liquid tight inside of EMT. Don't be creative with electrical work, creativity is rarely a recipe for code compliance.
Sch.80 is recommended for ground penetrations and any place where damage is likely, but as noted, almost no one actually carries of uses the stuff. Nearly all electricians just run sch.40 PVC for their ground penetrations, and you'll likely be fine for that. In cases where repair is neigh-on impossible, I transition to stainless rigid for ground penetration, such as I just did with my new patio. Sch.40 PVC below grade, female NPT adapter, then stainless rigid for the patio penetration, with an LB topside.
As to how to transition from PVC to liquid tight, I thought you already had that done? Usual method is female NPT adapter on PVC end with a male liquid tight adapter on liquid tight end.

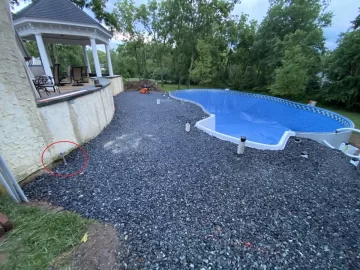

edit: just managed to find a photo of this, from before I poured concrete. See red circle, lower left.
Sch.80 is recommended for ground penetrations and any place where damage is likely, but as noted, almost no one actually carries of uses the stuff. Nearly all electricians just run sch.40 PVC for their ground penetrations, and you'll likely be fine for that. In cases where repair is neigh-on impossible, I transition to stainless rigid for ground penetration, such as I just did with my new patio. Sch.40 PVC below grade, female NPT adapter, then stainless rigid for the patio penetration, with an LB topside.
As to how to transition from PVC to liquid tight, I thought you already had that done? Usual method is female NPT adapter on PVC end with a male liquid tight adapter on liquid tight end.
edit: just managed to find a photo of this, from before I poured concrete. See red circle, lower left.
Last edited:
Yes, I do, as described.
I'm going to stop worrying about using Sch80 PVC or EMT. Only other question: right now, after I transition to liquid-tight, I bring it all the way from under the catwalk and then up the edge of the 6x6 to the EVSE. Does it make sense to transition back to PVC before I come up the 6x6 (basically using the liquid-tight as a flexible elbow in the PVC run) ? IOW, is Sch40 PVC more or less durable than liquid-tight ?
Ashful
Minister of Fire
I guess that depends on durability against what? PVC is pretty durable except when frozen (shatter impact) and abrasion (wear-thru). Liquid tight will never shatter or fail from blunt impact, but can be cut or wear thru.
I’ve seen so many countless swimming pool installers run them side by side, that this is what I did on my own recent panel install. I have 1” and 3/4 sch.40 PVC for mains and pool light, but 3/4” amd 1/2” liquid tight for heat pump and filter pump. Liquid tight is zip-tied to mains PVC with big black UV resistant zip ties.
Primary enemy for wear thru is string trimmer, and primary enemy for impact is mower, so just make ground penetration area a mulch bed or stones, not grass.
I’ve seen so many countless swimming pool installers run them side by side, that this is what I did on my own recent panel install. I have 1” and 3/4 sch.40 PVC for mains and pool light, but 3/4” amd 1/2” liquid tight for heat pump and filter pump. Liquid tight is zip-tied to mains PVC with big black UV resistant zip ties.
Primary enemy for wear thru is string trimmer, and primary enemy for impact is mower, so just make ground penetration area a mulch bed or stones, not grass.
Here's a thought. The O.D. of my 1" conduit is 1.315". The I.D. of 1-1/4" is 1.360". Close enough fit nicely together, with some solvent. And I have some 1-1/4" lying around. So fab my own Schedule 80 !! This doesn't have the grounding issues of sleeving it with metal. Nor, I suspect, does it look as fishy to inquiring eyes.
Ashful
Minister of Fire
You would need to leave the 1" longer on both ends than the 1-1/4", to work with fittings, but I agree it would be tough to damage that. Only potential issue I can even imagine is water getting between the two and possibly freezing, but I suspect that would never cause actual damage.
Then again, I'll repeat what a past commercial electrician once told me, "don't get creative".
Then again, I'll repeat what a past commercial electrician once told me, "don't get creative".

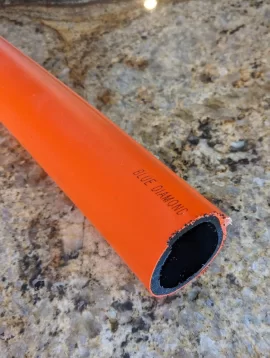

So I found this stuff that I liberated from Spectrum when they were burying cable in our 'hood. They run it first and encase the actual cable inside it. Seems tough as nails.

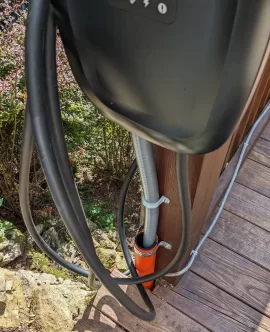

So I just ran it up to above weed-eater and boot height, and then down to where the liquid-tight bends back under the catwalk to connect to the PVC conduit.
So I just ran it up to above weed-eater and boot height, and then down to where the liquid-tight bends back under the catwalk to connect to the PVC conduit.
Ashful
Minister of Fire
I spent a good 12 hours digging conduit today, after a fence company ignored my markings and requested fence location, instead putting the damn thing right on the red line that indicated "high voltage / no dig". No kidding, they punched thru the conduit in at least two locations, and destroyed the wiring inside.
I had the intended track painted in yellow, and even marked the proposed post locations with flags, but for some reason they moved the whole thing over 5-6 feet from that location and dug right on top of the red line designating conduit.
Long day, started digging around 7am, went until dark, and then made the Lowes run to pick up the required repair materials.
I had the intended track painted in yellow, and even marked the proposed post locations with flags, but for some reason they moved the whole thing over 5-6 feet from that location and dug right on top of the red line designating conduit.
Long day, started digging around 7am, went until dark, and then made the Lowes run to pick up the required repair materials.
that sucks you are doing their job. i hit a romex in the ceiling and replaced and repaired it just like they were supposed to. they damaged it.
