bought a quadrafire 1200i this past year which has a simple Luxor psm30sa thermostat. I picked up a lux1500 to replace it and also to add my central a/c. The a/c is 3 wires green/fan yellow/a/c red/power which looks like that will be the same on the 1500. My question is for the 2 stove wires one should go to W/heat and the other ??? Also should I use the jumper from rc/rh ??? Thanks for any and all help. Mogs
Thermostat wiring ??
- Thread starter Mogs
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil. -
Super Cedar firestarters 30% discount Use code Hearth2024 Click here
Lake Girl
Moderator
Hello
Simple
Install jumper from RC to RH if not there already
Then connect one wire from stove T-Stat terminal to W (White) and the other to RH (Red Heat)

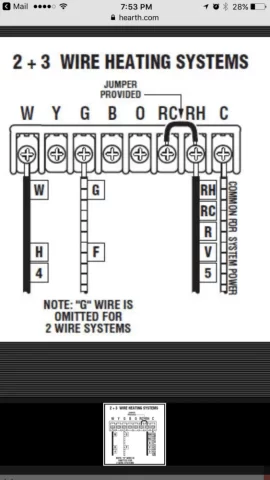

See diagram below
If you want more convenience get the Lowe's Iris Hub and T-Stat then download the free app to your smart phone and control it with that! Same wire hookup too.
Simple
Install jumper from RC to RH if not there already
Then connect one wire from stove T-Stat terminal to W (White) and the other to RH (Red Heat)
See diagram below
If you want more convenience get the Lowe's Iris Hub and T-Stat then download the free app to your smart phone and control it with that! Same wire hookup too.
Attachments
![[Hearth.com] Thermostat wiring ??](/talk/data/attachments/197/197006-1b024dcc3cc4919a634446c8a43e26a7.jpg?hash=sUpZl27TtM)
THello
Simple
Install jumper from RC to RH if not there already
Then connect one wire from stove T-Stat terminal to W (White) and the other to RH (Red Heat)
See diagram below
If you want more convenience get the Lowe's Iris Hub and T-Stat then download the free app to your smart phone and control it with that! Same wire hookup too.
Thanks Don, saw a couple conflicting diagrams on the web but they were for heat pumps not just a stove. Thanks again
Hello
Simple
Install jumper from RC to RH if not there already
Then connect one wire from stove T-Stat terminal to W (White) and the other to RH (Red Heat)
See diagram below
If you want more convenience get the Lowe's Iris Hub and T-Stat then download the free app to your smart phone and control it with that! Same wire hookup too.
Won't that mix the control voltage from the A/C and the stove?
As long as the control voltage from the a/c and stove are both 24 volts, you shouldn't have to hook up the stove red power supply to the thermostat. The stat will be energized from the a/c system. I'd start with rc &rh jumpered. You won't blow anything up. The a/c has a control voltage fuse on the circuit board. The stove should also but I'm not familiar with it
When you jumper R and RH you take the voltage from the A/C control transformer and use it thru the thermostat contacts to the W to energize a heat circuit . If you also hook up the control circuit from the stove to R I don't know what would happen but I sure wouldn't bet my control box on it. The stove only requires a dry contact to operate.
