Vac System Build: Cheap and Effective!

VTPellets Posted By VTPellets, Sep 12, 2015 at 7:53 PM

  1. VTPellets

    VTPellets
    New Member 2.
    NULL


    Aug 14, 2015
    23
    7
    Loc:
    VT
    A few weeks ago I posted here asking for some advice about a pellet transport system. I need to store them in bags in my basement, and the stove is on my main floor. PITA hauling bags up the stairs all winter. So, lazy-engineer-me took over and I got a lot of great advice from you guys.

    My goal was to suck pellets up from a mass storage bag in my basement vertically about 12 feet into a bucket next to the stove that I could then easily dump into the hopper. I've assembled this cheap vertical transport system that's effective and a hoot to watch.

    Album here.

    Parts:
    • Kanaflex 2.5" ID vacuum hose. Before anyone asks, it's grounded. No static. And it won't buckle under pressure. (15ft at $60)
    • Shop Vac 6.5HP wet/dry vac ($120)
    • Dust Deputy cyclonic filter kit with 5-gal buckets ($100)
    • FIBC bag, waterproof ($15)
    • 2.75" hole borer with arbor ($50)
    I was skeptical about it, but damn, it works. The only gripes are that the shop vac is a bit noisy, but no more than vacuuming your house for example. It's also not pretty, so I may build a nice shroud made to look like a chest or something around it.

  2. jinx

    jinx
    New Member 2.
    NULL


    Sep 12, 2015
    3
    0
    Loc:
    towson md
    I love the dust deputy cyclone, I own 2. I can't believe that you get a 12 ft lift out of the shop vac, but I am not familiar with the weight of pellets. Good on you for inventing the lift system. I'd probably be looking at a corkscrew feeding method instead.

  3. LGTWhit

    LGTWhit
    Member 2.
    NULL


    Sep 19, 2014
    111
    29
    Loc:
    Ma.
  4. VTPellets

    VTPellets
    New Member 2.
    NULL


    Aug 14, 2015
    23
    7
    Loc:
    VT
    Does the album not work?

  5. LGTWhit

    LGTWhit
    Member 2.
    NULL


    Sep 19, 2014
    111
    29
    Loc:
    Ma.
    Haha, works fine, didn't see it the first time. Genius for sure, nice work!!

  6. VTPellets

    VTPellets
    New Member 2.
    NULL


    Aug 14, 2015
    23
    7
    Loc:
    VT
    Ah, great. I credit you guys for a ton of clarification and links to similar ideas!

  7. velvetfoot

    velvetfoot
    Minister of Fire 2.
    NULL


    Dec 5, 2005
    9,818
    792
    Loc:
    Sand Lake, NY
    Low cost. I like it. I built a box with 3 sheets of plywood and some bracing and hinges from HD-neater maybe but can't beat 15 bucks.
    Do you think the vacuum filter will pick up a lot of dust?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  8. Arti

    Arti
    Feeling the Heat 2.
    NULL


    Feb 14, 2014
    381
    89
    Loc:
    South West Wisconsin
    Nice setup. I'm sure it will save a lot of work for years to come.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. bogieb

    bogieb
    Minister of Fire 2.
    NULL


    Oct 31, 2014
    2,623
    987
    Loc:
    South Central NH
    Nice visuals and explanation (FWIW - LGTWhit, I missed the album the first time too, so was glad you asked about the pics first ;)). Is that an electrical extension in that last pic (that big red/orange knot near the ceiling)? Ya know, they make shorter extensions ==c

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  10. VTPellets

    VTPellets
    New Member 2.
    NULL


    Aug 14, 2015
    23
    7
    Loc:
    VT
    Haha, yeah it's normally hooked into something across the basement, since outlets are limited down there. I had it running along the joists and needed it for something else a closer so I figured I'd just wrap it up!

    And we'll see about dust in the filter. I've only sucked up a couple hundred pounds of "test" pellets, and so far the filter and shop vac are clean as new.

    velvetfoot likes this.
  11. ironpony

    ironpony
    Minister of Fire 2.
    NULL


    Jan 22, 2010
    2,069
    585
    Loc:
    mid-ohio via St.Croix USVI
    beautiful job, maybe make a second 2.75 inch hole and mount the shop vac in the basement to cut down on noise.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  12. Pass the Pellets

    Pass the Pellets
    Member 2.
    NULL


    Jan 21, 2009
    47
    12
    Loc:
    Southeastern, MA
    Nice job! Interested to hear how that works out over a full season. You'll need to keep us posted. How do you move that big bag of pellets around?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  13. peakbagger

    peakbagger
    Minister of Fire 2.
    NULL


    Jul 11, 2008
    3,782
    970
    Loc:
    Northern NH
    Out of curiosity, are there issues with static buildup in theses systems?. When I was doing a lot of woodworking, I had dust collector system set up and there was a lot of warnings that the entire system needed to be grounded so that sparks wouldn't ignite the dust in the piping. I did ground mine and never had issues but have read over the years of systems exploding due to dust ignition.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  14. VTPellets

    VTPellets
    New Member 2.
    NULL


    Aug 14, 2015
    23
    7
    Loc:
    VT
    @pass: I don't move it around. Once it's full, it stays put. It's pretty heavy!

    @peak: the reason I went with the kanaflex hose was because it is grounded, and specifically designed for waste material/liquid suction. I heard a lot of recommendations for grounding the hose because of the risk of static buildup.

  15. peakbagger

    peakbagger
    Minister of Fire 2.
    NULL


    Jul 11, 2008
    3,782
    970
    Loc:
    Northern NH
    Thanks for the info on the hose, I ran bare wire inside my pipes as I was paranoid about static.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  16. Pass the Pellets

    Pass the Pellets
    Member 2.
    NULL


    Jan 21, 2009
    47
    12
    Loc:
    Southeastern, MA
    So you manually fill the bag in place from individual 40 lb bags? No bulk delivery or buying a 1 ton bag available where you live?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  17. EdC

    EdC
    New Member 2.
    NULL


    May 18, 2018
    2
    0
    Loc:
    Middle River, MD

    VT Pellets: Can't get the album link to work.

  18. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,218
    529
    Loc:
    Salem NH
    Hi VTpellet
    I would really like to see the pics, but

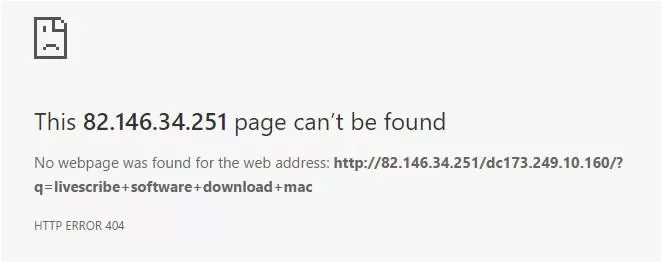

    When I Click on Album
    I See pic 1 below

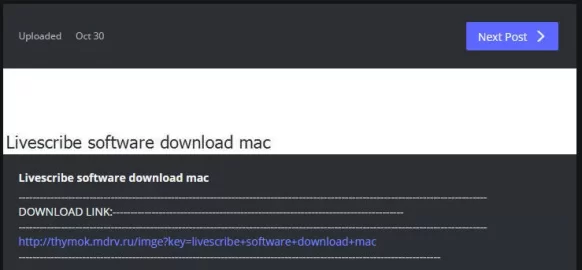

    When I click on the link
    I see pic 2 below

    Am I doing something wrong or has something changed?

    Click on pic below to enlarge:
