Wiring inherited wood furnace

MinnesotaSnow Posted By MinnesotaSnow, Mar 2, 2019 at 11:28 AM

  1. MinnesotaSnow

    MinnesotaSnow
    New Member 2.
    NULL


    Mar 2, 2019
    2
    0
    Loc:
    Minnesota
    I purchased a home this Fall, and the wood stove is in place but electrically disconnected. I'm comfortable with home electrical wiring, but I don't know much about wood stoves. Here are pictures of what I have:

    White, black, brown, green from the fan limit control (first & second pics)
    -Brown and green go to the top of the transformer
    -White currently connected to white from fan
    -Black not connected to anything

    Backside of fan control center (third pic)
    -Black and white come out of center together
    -Separate black (line) and red (load)

    Overview photo- black and white from fan (white connected to white from fan limit)
    -Green and brown from fan limit to transformer
    -Black from fan and black from fan control not connected to anything

    I have power from a switch available (not seen in pics).

    I have a separate gas furnace that works fine. This system to separate. I can't find anyone who will work on a wood stove in the area for liability reasons is what I'm told. I really wood appreciate some help, haha.

    Thanks!

    IMG_0730.jpg IMG_0731.jpg IMG_0732.jpg IMG_0733.jpg IMG_0734.jpg

  2. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,881
    1,391
    Loc:
    NE Ohio
    Look up the make/model online for a wiring diagram...but before you do that, better inspect every inch of that thing first...make sure someone didn't disable it on purpose, due to a failure of some sort or another (looks like it may have had a hard life...)

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    sloeffle likes this.
  3. MinnesotaSnow

    MinnesotaSnow
    New Member 2.
    NULL


    Mar 2, 2019
    2
    0
    Loc:
    Minnesota
    It's a Firepower 2230, supposedly made in the early 1980's... I suppose I should've mentioned I've done a search, and I can't find the manual or wiring diagram as they don't appear to exist on the web. The vent to the chimney appears in good shape, and the chimney has a steel liner in it.

    Thanks for the reply!


  4. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,881
    1,391
    Loc:
    NE Ohio
    Firepower...oh boy, that's a new one to me. Is there any relevant info on that ID tag on the front there? There's usually a manufacturers address...although I'm sure they are gone now...but may have been bought up by someone else...that happened a lot back when it seemed like everybody with a weld shop made a wood burner.
    The wiring on that should be pretty simple really...and many of those types of furnaces are wired more or less the same. That would be fairly easy to troubleshoot in person...but even with your pics and decent description, I'm not gonna be a ton of help.
    Maybe try looking up a Yukon Big Jack wiring diagram...I know they use much the same controls. Here's the manual...there will be a diagram in here...http://store.yukon-eagle.com/content/JackLineManual_May2015_web.pdf

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,881
    1,391
    Loc:
    NE Ohio
    Just another thought...you may not find a HVAC company that wants to work on it...but try posting an ad on CL or some other ad service...chances are good you'll get a HVAC repair guy that will do it as a side job...

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  6. lost in the woods

    lost in the woods
    Burning Hunk 2.
    NULL


    Feb 8, 2016
    125
    66
    Loc:
    Central PA

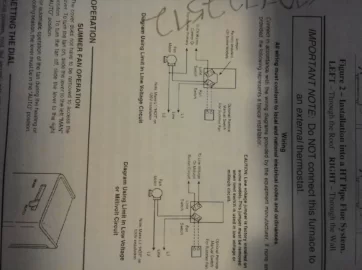

    this is all the give you in the Englander manual. I do have a Honeywell fan control on mine


    Attached Files:

  7. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    9,647
    1,977
    Loc:
    Nova Scotia
    You really should find out why it was pulled so far out of service. Something like a cracked firebox or heat exchanger is nothing to fool around with, it could fill your house with CO.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brenndatomu and sloeffle like this.
  8. Case1030

    Case1030
    Member 2.
    NULL


    Dec 12, 2017
    180
    149
    Loc:
    Manitoba
    Once you figure out the wiring and hvac its best to get a co2 detector near the hot air ducts if you don't already have one. Ofcourse it would be great to know the history of the old unit... if it were my guess, could have a faulty plenum stat if it was disconnected. Tough to know forsure people do weird stuff all the time.

    Who knows might have even been in the middle of installation.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. KC Matt

    KC Matt
    Burning Hunk 2.
    NULL


    Oct 29, 2016
    115
    76
    Loc:
    Kansas City
    As far as the wiring these things are very simple. First, the fact you have a transformer is interesting. What exactly is running off of the (I assume) 24vac? What does the blower on the front of the unit do?

    Basically you have a switch that turns the blower on and off. I use a Johnson Controls 421 box to control the fan on/off. You could just get an RIB relay and a 421 box and run everything on 120vac and eliminate the rest of it. That's what I'd do.
