45 degree elbows no longer meet code?

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Jfk4th, Jan 29, 2010.

Thread Status:
Not open for further replies.
  1. Jfk4th

    Jfk4th
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 8, 2007
    Messages:
    683
    Likes Received:
    0
    Loc:
    NY
    I am trying to sell some Class A chimney pipe and double wall interior elbows, etc and a guy emailed me from Pennsylvania and said 45 degree elbows no longer meet code. True? False?

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. Bobbin

    Bobbin
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 2, 2008
    Messages:
    1,079
    Likes Received:
    158
    Loc:
    So. Me.
    Are you sure you don't mean 90 degree elbows? 45 seems awfully tight... I don't think I've ever seen one.

    Collapse Signature Expand Signature
  3. Fsappo

    Fsappo
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 9, 2008
    Messages:
    4,331
    Likes Received:
    180
    Loc:
    Central NY
    never heard of that one before

  4. Jfk4th

    Jfk4th
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 8, 2007
    Messages:
    683
    Likes Received:
    0
    Loc:
    NY
    Collapse Signature Expand Signature
  5. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    59,205
    Likes Received:
    7,340
    Loc:
    South Puget Sound, WA
    What type of pipe? No 45's are sold for class A, but ok for connector pipe.

    Collapse Signature Expand Signature
  6. SolarAndWood

    SolarAndWood
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 3, 2008
    Messages:
    6,770
    Likes Received:
    63
    Loc:
    Syracuse NY
    compliments of simpson:

    http://www.duravent.com/docs/bulletins/2008/45_elbows_product_bulletin.pdf

    45-Degree Elbows are NOT Allowed in U.S. All-Fuel Chimney Systems
    The Issues
    • A 45-degree elbow in any U.S. all-fuel chimney installation does not comply with UL 103, the standard for factory-built
    chimneys in the U.S.
    • A 45-degree elbow in any U.S. all-fuel chimney installation does not comply with the International Building Code.
    • The language of NFPA 211 can no longer be used to justify 45-degree elbows because the International Building Code requires
    factory-built chimneys to comply with UL 103.
    • Building inspectors, especially in International Building Code jurisdictions, should be aware of the applicable governing
    documents and not allow chimney installations with 45-degree elbows.
    • In the event of chimney fires, homeowners, inspectors and fire/casualty insurers should be aware of non-compliant
    installations.
    • Distributors, dealers, and installers can be held liable for providing or installing non-compliant components. Chimney
    manufacturers do not have authority to override these governing documents.

    Collapse Signature Expand Signature
  7. Jfk4th

    Jfk4th
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 8, 2007
    Messages:
    683
    Likes Received:
    0
    Loc:
    NY
    OK I'll explain more and we can all breath easy ;-)

    I am selling Class A chimney pipe and 45's double wall interior stove pipe, so 45 degree double wall pipe is still OK

    Collapse Signature Expand Signature
  8. Bobbin

    Bobbin
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 2, 2008
    Messages:
    1,079
    Likes Received:
    158
    Loc:
    So. Me.
    Interesting how the image I had in mind was of pipe with a much more acute angle (less than a right angle, or 90 degrees); the linked image is what I'd consider an obtuse angle and more in the range of 135 degrees. I couldn't imagine why you'd need an angle tighter than 90 degrees, lol, and I could understand why something like that wouldn't be "to code", lol.

    Collapse Signature Expand Signature
  9. Jfk4th

    Jfk4th
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 8, 2007
    Messages:
    683
    Likes Received:
    0
    Loc:
    NY
    Collapse Signature Expand Signature
  10. DanCorcoran

    DanCorcoran
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 5, 2010
    Messages:
    2,181
    Likes Received:
    356
    Loc:
    Richmond, VA
    Why, I don't know, but apparently the degree of bend is measured from vertical. That is, think of clock hands at 6:00, then measure degrees from vertical as the minute hand moves forward: first 30 degrees, then 45, then 90, etc.

    Collapse Signature Expand Signature
  11. Bobbin

    Bobbin
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 2, 2008
    Messages:
    1,079
    Likes Received:
    158
    Loc:
    So. Me.
    How an angle is measured really does depend on the point of origination. I work with fabric and cut bias binding for cording on slipcovers and upholstery. Bias is always 45 degrees to the grain of any woven fabric. I also do a lot of stencil work and geometric layouts on floorcloths. It all involves geometry and again, it's a question of perspective.

    I learned something new today. So it won't be a "wasted day"! Thanks.

    Collapse Signature Expand Signature
  12. chad101

    chad101
    Expand Collapse
    Member

    Joined:
    Sep 9, 2009
    Messages:
    144
    Likes Received:
    15
    Loc:
    Erie, MI

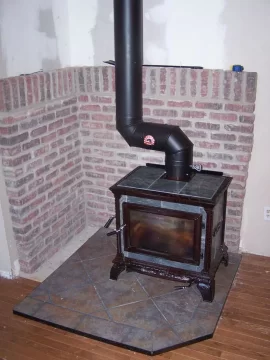

    whoooa! Maybe I'm not understanding this correctly...

    So my install is not up to code?


    Attached Files:

    Collapse Signature Expand Signature
  13. raybonz

    raybonz
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 5, 2008
    Messages:
    6,211
    Likes Received:
    1,036
    Loc:
    Carver, MA.
    That looks like it would restrict the exhaust with 2 close 90's.. I would think 2-45's would be much less restriction and also make the stovepipe sturdier and easier to clean..

    My 2 cents,
    Ray

    Collapse Signature Expand Signature
  14. Archie

    Archie
    Expand Collapse
    Feeling the Heat

    Joined:
    Jul 31, 2009
    Messages:
    254
    Likes Received:
    6
    Loc:
    Northern Virginia
    I'm curious too. Sounds like 45 is a no go inside the chimney, but OK for connector, like from the stove to the chimney pipe.

    Collapse Signature Expand Signature
  15. fossil

    fossil
    Expand Collapse
    Accidental Moderator
    Staff Member

    Joined:
    Sep 30, 2007
    Messages:
    10,508
    Likes Received:
    2,396
    Loc:
    Bend, OR
    Exactly. 45° elbows are no longer approved for Class A chimney installation. No problem in single-wall or double-wall connector pipe (stovepipe). For Class A, you can buy 15° elbows & 30° elbows, but not 45°'s. Rick

    Collapse Signature Expand Signature
  16. Jfk4th

    Jfk4th
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 8, 2007
    Messages:
    683
    Likes Received:
    0
    Loc:
    NY
    Well I guess this post was not too bad then to do overall

    I originally wanted only to ask if 45's for connector pipe was still up to code but thanks to you guys additional info was given for the Class A chimney pipe. Thanks again :) to all and I am sorry if I initially confused people when I said Class A chimney pipe and elbows in the same sentence.

    I am hoping to get a little bit of money for the the 3 sections of 3 foot Class A chimney pipe, my double wall 45's connector pipe, and my adjustable double pipe, Plus I have roof brackets too. I hate to get rid of this but it just sitting in my garage taking up space and I can't find any use for it. I am charging a cheap price for each item so hopefully I will get rid of this fairly quickly

    Collapse Signature Expand Signature
  17. tcassavaugh

    tcassavaugh
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 10, 2010
    Messages:
    1,023
    Likes Received:
    143
    Loc:
    Southern Maryland
    can those 2 x 90s be adjusted into 2 x 45s...might allow bwtter positioning foe the stove in the pic.

    cass

    Collapse Signature Expand Signature
  18. jtp10181

    jtp10181
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 26, 2007
    Messages:
    3,725
    Likes Received:
    1
    Loc:
    Madison, WI
    Pipe looks legal I guess, but why? 45 elbows would be a lot better.

    Also, side clearances on the right looks pretty small, does that meet specs for that stove?

    Collapse Signature Expand Signature
  19. LLigetfa

    LLigetfa
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 9, 2008
    Messages:
    7,361
    Likes Received:
    110
    Loc:
    NW Ontario
    I would offset with tow 15 degree elbows.

    In my former home I had to offset the class A pipe with two 45 degree elbows. 5 years later I sold the house and built my current one. At some point within that 5 years, the 45 degree elbows were taken off the market but I had the chimney inspected by a WETT certified sweep before I sold the house and there was no mention of the 45 degree elbows. I'm guessing they were grandfathered in.

    On my current home I only needed a small offset so a pair of 15's did the trick.

    Collapse Signature Expand Signature
