Fisher Grandma stove needs a screen insert

Post in 'Fisher Stove Information, Parts, History and More' started by Luke Doub, Jan 7, 2013.

  1. Luke Doub

    Luke Doub
    Expand Collapse
    New Member

    Joined:
    Jan 7, 2013
    Messages:
    2
    Likes Received:
    0
    Does anyone know a good source for fisher parts, or anyone who fabricates them since they are out of business? I was looking for a screen for my Grandma stove, but they seem quite rare these days.


    Helpful Sponsor Ads!





  2. Jags

    Jags
    Expand Collapse
    Moderate Moderator
    Staff Member

    Joined:
    Aug 2, 2006
    Messages:
    16,970
    Likes Received:
    5,767
    Loc:
    Northern IL
    I am not sure that the Grandma had a screen option (hopefully some one will pipe up about that). If it DIDN'T have the option, don't go putting one on there. If it wasn't designed for it, don't assume that you can safely run it with one.

    Collapse Signature Expand Signature
  3. Luke Doub

    Luke Doub
    Expand Collapse
    New Member

    Joined:
    Jan 7, 2013
    Messages:
    2
    Likes Received:
    0
    Grandma and Grandpa had the option for a screen. The earlier single door mama/papa/baby bear did not allow for screens.

  4. Jags

    Jags
    Expand Collapse
    Moderate Moderator
    Staff Member

    Joined:
    Aug 2, 2006
    Messages:
    16,970
    Likes Received:
    5,767
    Loc:
    Northern IL
    Ahhh...good to clarify.

    Collapse Signature Expand Signature
  5. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    There is a chrome rectangle style called Contemporary, and a black with arched top called Classic that come up from time to time on eBay.
    The full size Insert, Goldilocks and Grandma all use the same size screen, so it's the easiest size to find.
    Be prepared to pay over $100. I used the screen for open door burning only when starting the fire. They are not considered radiant heaters when burned in "Fireplace mode".

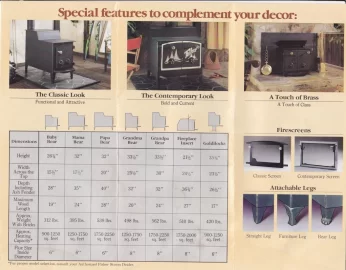

    Below are styles shown for Fisher II Stoves after 1980;


    Bottom Rear.jpg

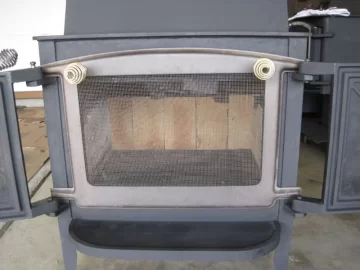

    Contemporary also fit earlier model stoves with flat top doors since they grip to the door opening that's the same size as stoves with arched top doors.. The Classic will only fit arched top doors correctly, since the support ears sit on top of the hinges. Flat top doors are not as high, and the lower ears will not reach the lower door hinge plates as shown in the mismatch below.

    Arched Screen mismatch 1.jpg

    There is an entire sub-forum (Fisher Stove Information, Parts, History and More) with this information and MUCH more listed under the "Classic Stove Forum" where this thread has been moved. Enjoy;
    http://www.hearth.com/talk/forums/fisher-stove-information-parts-history-and-more.28/

    Collapse Signature Expand Signature
  6. CamFan

    CamFan
    Expand Collapse
    Member

    Joined:
    Aug 21, 2011
    Messages:
    239
    Likes Received:
    14
    Loc:
    North East Georgia
    I have plenty of Grandma and Insert screens and Honey Bear
    Screens. All New, send a PM

  7. CamFan

    CamFan
    Expand Collapse
    Member

    Joined:
    Aug 21, 2011
    Messages:
    239
    Likes Received:
    14
    Loc:
    North East Georgia
    I also have HB blowers all new in the box.

  8. briish

    briish
    Expand Collapse
    New Member

    Joined:
    Nov 22, 2014
    Messages:
    3
    Likes Received:
    0
    Loc:
    massena ny
    ok i need one for a mama bear fisher send info to briish@msn.com t/y

  9. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    Mama Bear is a single door stove that doesn't use a screen for open viewing. That was the reason for double door stoves to make a larger viewing area.

    Collapse Signature Expand Signature
  10. briish

    briish
    Expand Collapse
    New Member

    Joined:
    Nov 22, 2014
    Messages:
    3
    Likes Received:
    0
    Loc:
    massena ny
    ok i guess i need one for a double door @ camp measurements 19" x 12" t/y

  11. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    If that is the screen size, the door opening should be 17 wide X 10 high. If that is the case, you need a screen for Grandma, Insert, Goldilocks or Teddy that uses the same size. (If your stove has 4 legs, it's a Grandma; No legs, is an Insert; Pedestal is a Goldilocks or Teddy Bear)
    The rectangular type will fit both flat top and arched top doors. The newer arched top screen will only fit arched top doors.

    Collapse Signature Expand Signature
  12. briish

    briish
    Expand Collapse
    New Member

    Joined:
    Nov 22, 2014
    Messages:
    3
    Likes Received:
    0
    Loc:
    massena ny
    that is the rough opening on the stove yea it has 4 legs 12 x 19 you think you have one to fit? t/y

  13. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    Message CamFan and tell him you need a Grandma / Insert screen. They come up from time to time on eBay, but can go for over a hundred. Yeah, dollars.

    Collapse Signature Expand Signature
  14. CamFan

    CamFan
    Expand Collapse
    Member

    Joined:
    Aug 21, 2011
    Messages:
    239
    Likes Received:
    14
    Loc:
    North East Georgia
    I just mailed one to someone else lol. I have them.

  15. Yooper291

    Yooper291
    Expand Collapse
    New Member

    Joined:
    Mar 27, 2015
    Messages:
    1
    Likes Received:
    0
    Loc:
    Michigan
    Do you still have these I am in need of ine

  16. CamFan

    CamFan
    Expand Collapse
    Member

    Joined:
    Aug 21, 2011
    Messages:
    239
    Likes Received:
    14
    Loc:
    North East Georgia
    Yes. I have them. What state do you live?

  17. Phab4

    Phab4
    Expand Collapse
    New Member

    Joined:
    May 31, 2015
    Messages:
    1
    Likes Received:
    0
    Loc:
    Raleigh, NC
    I need one too (Grandma insert-- 1982ish) I'm in NC

  18. bucketlip

    bucketlip
    Expand Collapse
    New Member

    Joined:
    Oct 27, 2015
    Messages:
    1
    Likes Received:
    0
    Loc:
    KITTANNING, PA.
    also i need of one.

  19. jotoh

    jotoh
    Expand Collapse
    New Member

    Joined:
    Dec 23, 2015
    Messages:
    3
    Likes Received:
    0
    Loc:
    maine
    I am looking for a fire screen for my 1976 Bicentenial Grandma Bear. Do you have one?
    Thank you
    JOtoh

  20. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    The '76 would have been all black with chrome T handle. This one like new sold a while back on eBay for $175. The Contemporary chrome new ones from CamFan will fit, just not time period correct.

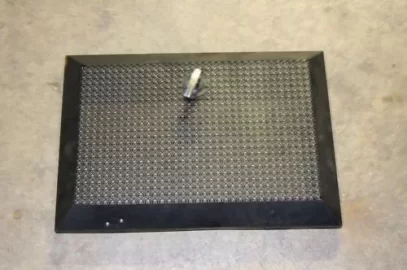

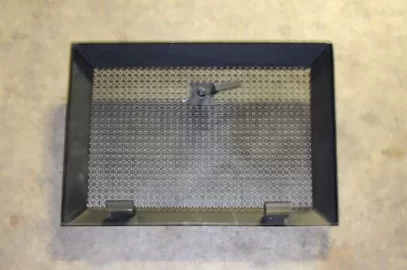

    This is the first screen;
    Screen Grandma 1.jpg Front Screen Grandma 175.jpg Back

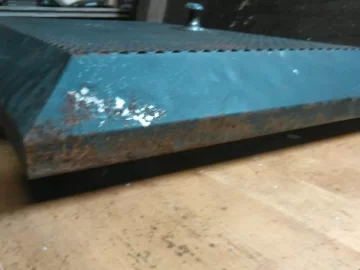

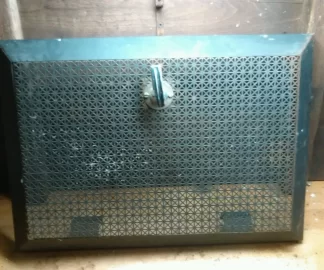

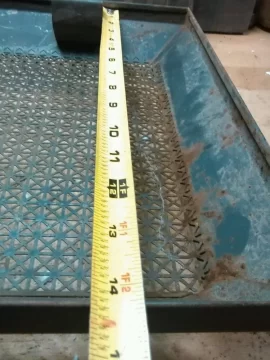

    This one needs work and sold on eBay Nov. 8 2015 for best offer; went for under $65.99 from Indiana.
    http://www.ebay.com/itm/Fisher-wood...567924?hash=item35f1b6fc74:g:WzkAAOSwu4BV03OE

    GM 65.99 sold best offer eBay IN 11-8-15.jpg GM 65.99 Indiana eBay 11-8-15.jpg GM 65.99 Indiana eBay 11-8-15 jaybird.jpg

    Collapse Signature Expand Signature
  21. jotoh

    jotoh
    Expand Collapse
    New Member

    Joined:
    Dec 23, 2015
    Messages:
    3
    Likes Received:
    0
    Loc:
    maine
    T

  22. jotoh

    jotoh
    Expand Collapse
    New Member

    Joined:
    Dec 23, 2015
    Messages:
    3
    Likes Received:
    0
    Loc:
    maine
    Thank you very much for getting back to me with information. I am unsure what CanFam is. Right now I would probably take any screen that would fit and remain on the Ebay lookout as long as it takes to find an original.
    Is CanFam a stove company or an individual who makes and sells?

  23. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    Back up to post #16 in this thread and click on his member name. Then hit "start a conversation". That is a private message.
    He was a welder from the Southeast Fisher plant in Georgia who married into the licensee's family. The front of the building is still used for hearth and patio retail products. They also bought out Dunn Brothers left over stock when they closed the Virginia plant. His avatar is the stove #1 made at the Georgia Fabricator supplying the southeast.
    This is left over new old stock on the shelf since they closed !

    Collapse Signature Expand Signature
    rowerwet likes this.
  24. PNWwoodsman

    PNWwoodsman
    Expand Collapse
    New Member

    Joined:
    Dec 23, 2015
    Messages:
    1
    Likes Received:
    0
    Loc:
    Mead, WA
    Do you have anymore of those screens for a fisher Goldilocks ?

  25. coaly

    coaly
    Expand Collapse
    Fisher Moderator
    Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    2,291
    Likes Received:
    299
    Loc:
    NE PA
    Ask him for the same screen as Grandma and Insert.

    Collapse Signature Expand Signature
