Help! A piece of my Jotul System 18 Fireplace fell out this morning

Post in 'Classic Wood Stove Forums (prior to approx. 1993)' started by Ati, Jan 5, 2013.

  1. Ati

    Ati New Member

    Joined:
    Jan 5, 2013
    Messages:
    4
    Hi
    I was adding wood to my fireplace this morning and knocked a piece of cast iron from somewhere in the chimney - the number on the part is P-18 KAT NR 103720. I am not sure where it fell from, and would appreciate any info on how to put it back.
    Thanks!

    Helpful Sponsor Ads!





  2. KaptJaq

    KaptJaq Minister of Fire

    Joined:
    Jan 31, 2011
    Messages:
    706
    Loc:
    Long Island, NY
    I am not familiar with that part number. If I have the right stove the link below is the exploded parts diagram. Either post a picture of the part or find it on the diagram and maybe somebody can help you...

    http://www.jotul.com/FileArchive/Technical Documentation/Wood Built-ins/Jøtul I 18 Harmony/Exploded_view_I_18_P09_120505.pdf

    This is a parts list but the part number you gave is not on it:

    http://www.jotul.com/FileArchive/Technical Documentation/Wood Built-ins/Jøtul I 18 Harmony/Spareparts_I_18_2-1541-P25_090811.pdf

    Your part may be a component of the exhaust assembly that is sold as a unit and the parts list does not have the individual part numbers.

    EDIT: See next post.

    KaptJaq
  3. KaptJaq

    KaptJaq Minister of Fire

    Joined:
    Jan 31, 2011
    Messages:
    706
    Loc:
    Long Island, NY
    part number 10372012 is the baffle plate. If this is the part, it sits on two ridges at the top on either side of your firebox and two slots in the back. Put it in via the loading door, curve in the front goes up, narrow end in first. Once in the firebox, and before it is all the way to the back, lift it up above the ridges on either side near the top. Then slide it all the way into the slots at the back and lower it onto the side ridges.

    This is the user manual. See pages 16 &49.

    http://www.jotul.com/FileArchive/Technical Documentation/Wood Built-ins/Jøtul I 18 Harmony/Manual_I_18_10024405_P05_121211.pdf

    KaptJaq
  4. Ati

    Ati New Member

    Joined:
    Jan 5, 2013
    Messages:
    4
  5. Ati

    Ati New Member

    Joined:
    Jan 5, 2013
    Messages:
    4

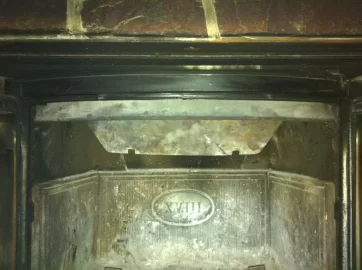

    thanks so much for this. i think we got it, but not sure. the top (curved) part of the baffle plate is resting on the ledge at the top of the fireplace, just above the doors, and the sides are sitting on the side ridges. what i am not sure about is whether it should be hanging down, or whether the two slots at the bottom of the plate should be attached to something else. see the attached picture.
    does this look right to you?
  6. KaptJaq

    KaptJaq Minister of Fire

    Joined:
    Jan 31, 2011
    Messages:
    706
    Loc:
    Long Island, NY

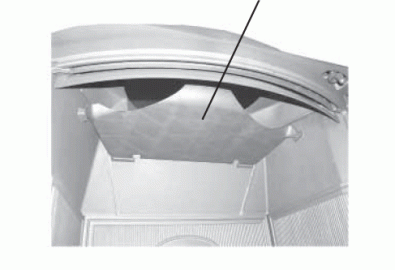

    I cannot see the front edge of the baffle in your picture but it appears to be correct. The image below shows it properly installed. Due to revisions during the production run yours might be slightly different but this should give you a good idea.


    KaptJaq
  7. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,484
    Loc:
    South Puget Sound, WA
    I'm not sure this piece is in correctly. Note in the picture that KaptJaq posted that the edge with the two notches is toward the back of the stove, resting on the ledge. In your picture those notches are hanging down in front.

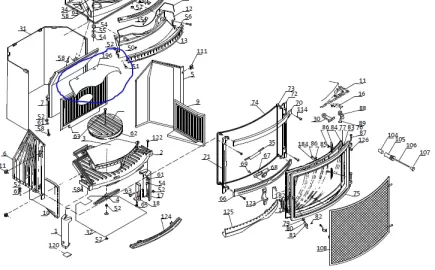

    Here's another view. Click on it to see full sized:

  8. Ati

    Ati New Member

    Joined:
    Jan 5, 2013
    Messages:
    4

    thanks so much!
    fixed it this weekend
  9. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,484
    Loc:
    South Puget Sound, WA
    Great! How is it burning now?
