Honey Bear with removable pedestal ?

Post in 'Fisher Stove Information, Parts, History and More' started by mike zimmerman, Jan 31, 2013.

  1. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    im new to this site , the info is great and a very good forum . i have loved fisher stoves for 30 years . just bought a1986 single door brass glass honey bear non mobile home model want to put the cast bear legs on it instead of pedastal base. coaly this question is sort of to you. i was hoping maybe you would know where i might find a set for sale . or if anyone else has a set for sale please give me a call my number is 304-667-3372 im in lewisburg wv .also if anyone has info or opinion on this stove i would like to learn about it . first one i have ever seen for sale got it for good deal i think $200 its in excellent shape. im going to clean it up and paint it. will post pics when done . any help would be greatly appreciated .. thank you

    Helpful Sponsor Ads!





  2. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    Mike, Welcome to the Forum, and congrats on the find.
    We need pictures of this thing !!
    If this is something rare, I'll start a new thread with your original post.

    I've only seen the single door Honey Bear in the freestanding model with 4 legs. All the pedestal models have had double doors. (and older than '86) Is there a tag that states it's a Honey Bear?

    As far as I know, the stoves were made either in pedestal or freestanding styles. The optional furniture or bear legs mount where the standard legs are bolted to each corner under the freestanding stove. The pedestals I've seen don't have a lip around the bottom to match the radius on the removable legs. This overhang keeps the leg from rotating and pulls tight to the stove bottom corner.
    I've only seen welded pedestals that are not removable. Never heard of anything different. If this is what you have, it would loose it's UL rating if modified. You certainly don't want to cut the pedestal off this rare of a model, if that's the case.

    Does the tag have where it was made and manufacturer name? By then they were available through distributers and sold at many hardware stores, plumbing shops, or any retailer that wanted to add revenue to their sales.
  3. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    thanks for the response nice to meet u guys . the pedastol comes off by removing 3 bolts .there are nuts welded in each corner to accept legs.the door is solid brass with fisher cast in bottom right corner . the corners are rounded to accept legs . it has a heat shield on back that curves up at top .the pedastol is three sided open in back.air vent is in middle bottom of stove above pedastol . the tag on right side of stove says warnoc herzig And fisher stoves . I will take pics tommorrow and post . any thoughts about what I have will be appreciated . googled this stove 4 hrs last night found very little . thanks mike
  4. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    coaly the tag doesn't say honey bear . I was just guessing from what I found on net
  5. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
  6. WeldrDave

    WeldrDave Feeling the Heat

    Joined:
    Nov 14, 2012
    Messages:
    460
    Loc:
    New Jersey
    This one's got my interest_g....... If there is an answer, you'll get it from Coaly...
  7. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36

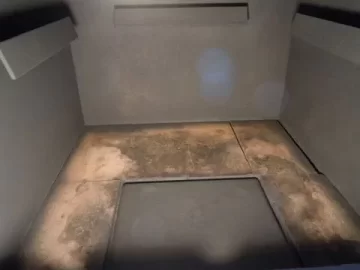

    coaly the stove does have a lip around the bottom and also has what i believe is a secondary burn chamber shelf with a small slot opening across .it sort of looks epa inside to me . thanks mike
  8. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
  9. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    this is the exact stove that i have except mine has the removable pedestal mount . i think the bear legs look great. thats why i want a set . this is the only pic i could find that is exactly my stove . mine is in this shape but is dusty and the brass is not polished and is dull from sitting in a garage for 20 years
  10. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    sorry about big picture new at this forum thing
  11. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    this picture was in google images and beside the image it said , hearth .com honey bear
  12. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    48
    Loc:
    Western North Carolina
    Hey Mike, Welcome to the forum. Lots of great info here and Coaly is the man to answer alot of ?. Check out the thread "Someone help identify this old fisher" It is in the fisher stove info also. Would like to get a pic of the ul label also as mine was unreadable. And of the inside baffle plate if it has one. Thanks
  13. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    Here's the stove you found the picture of Mike. It belongs to mtn man on this forum.
    http://www.hearth.com/talk/threads/someone-help-identify-this-fisher.81062/
    Notice the double question mark after my guess of what he had. (post #6)

    Here's his updated thread with finished stove;
    http://www.hearth.com/talk/threads/someone-help-identify-this-old-fisher-update.95446/

    Until a stove like these surfaces with a readable tag, we won't know what it's called. I don't have this stove shown on any Fisher literature I have.
    Also notice I mentioned IF it was 20" wide, and measurements were needed.
    **Width of top plate, outside box dimension, and door opening size of these stoves will verify if we're on the same page.**

    The problem with tags, and the only info I can give you is from welded pedestal type, (residential) is the tag is a metallic sticker, very small, about the size of a playing card. Adhesive only, applied all the way at the bottom, next to floor plate where it is most difficult to read. The print is so small, it takes a magnifying glass to see it. They called it "Freestanding Pedestal Honey Bear" and the welded pedestal is 3 sided, open in the back. Here's a picture of a tag, maybe it will help mtn man compare to his tag?

    Honey Bear 6.jpg Honey Bear CL OR 4.jpg

    Honey Bear Tag.jpg

    The defining thing on the stove in resemblance to the Honey Bear (other than size when known) is the ash fender with no edge trim. All other pedestals (Goldi and Teddy) had the 1 inch channel iron as used for door seals around the edge. Honey Bear had a steel stamped ash shelf with holes in the outer corners.

    Honey Bear Tags.JPG

    Every stove has an exception when it comes to Fisher ! With so many fabricators making them, all sorts of variations can be found.
    Here's a Honey Bear with rounded fender with edge trim! Notice the length of door handles that are the same size as full size stove's handles. This is the way to determine a Honey Bear in a pic since the stove body is so small compared to the hardware.
    Honey Bear.jpg Honey Bear with regular fender.jpg

    Sized your picture Mike, I did the same with mtn mans threads to allow faster loading. When posting pics, always choose "thumbnail" to get the smaller picture to post.
    Full size pictures on the Fisher Forum threads are hosted on other websites. (or I just haven't gotten to 'em yet)
  14. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    mtn man my stove is identical to yours everything except it sits on a bolt on pedastol. my stove has a metal tag pop riveted on right side of stove and is in very readable shape .on the tag it has the name of the person who built it . i will try to upload the picture i took and hopefully yyou can read it . mr jones i am new at forums i didnt know how to start new thread ,im sorry if i encroached on this one . maybe coaly could move mine ??
  15. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    I moved all posts pertaining to your stove to a new thread Mike.
  16. mtn man

    mtn man Member

    Joined:
    Jan 14, 2012
    Messages:
    48
    Loc:
    Western North Carolina
    Hey Mike, my stove measures 20x20 and was built for pedastal or bolt on legs too. It just didn't have either when I started my project. My tag was rivited on right side too but to demolished to read. Also had a label rivited on the ash pan that was missing. Curious to see what yours says. It reallys puts some heat out and have really enjoyed burning it and learning how to operate it to perform the best way. Mine is heating almost 2000 sq ft.
  17. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    Here's the best pictures of mtn mans stove I've got. He sent them to me as he was restoring his stove.
    I keep them with many others in a file named "Undocument Fishers".

    001 Resized.JPG 004.JPG


    Here's a few more from Craigslist over the years. So they are "around";

    Fisher on Door CL $500 3.jpg Honey Bear CL Maryland 10-2011 1988-3.png.jpg Honey Bear CL Nov. 2011.jpg

    Fisher on Door CL $500 1.jpg
  18. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    Was the tag huge like this Honey Bear ?

    Honey Bear after 8.jpg
  19. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    My "Freestanding Pedestal" double door Honey Bear measures 20" across top plate.
    The box is 19" square outside.
  20. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    ok the first time i looked at tag i didnt see it but it says honey bear right on it, dont know how i missed it .. the tag is the same size as pic. it is 20x20 . thank you coaly for moving post i guess this is not a mystery stove any more . it is definitely a honey bear . if all goes good my pics should be coming in a minute
  21. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    guys i apologize cant get pics of cell phone so i will take with camera because i know how to load those . probably tommorrow or sunday
  22. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    We don't like phone pics anyway. ;)
    Is the tag the same as the tags pictured in post #13 , or the large tag as shown in post #18? None pictured in #13 at pedestal are are rivited on, they are all stickers.

    Can I ask what it measures across top plate??
  23. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    20130201_172733.jpg 20130201_172757.jpg 20130201_172835.jpg 20130201_172525.jpg im sorry it took so long , mtn man i saw your stove and knew i had to restore this one . i hope you dont mind if i copy yours .. you did a great job .. im glad you told me they heat well .. i wonderd about that . its going in my small hunting camp . mtn man i hope you can read this if not let me know and i will take more pics of tag . coaly do you know how to get ahold of camfan to see if he will part with a set of legs .. thanks mike
    WeldrDave likes this.
  24. mike zimmerman

    mike zimmerman New Member

    Joined:
    Jan 31, 2013
    Messages:
    36
    coaly the tag is like #18 except on other side and riveted and aluminum . and i will measure top and stove tomorrow i have it at my friends shop . by the way the date is 85 not 86 altzheimer i guess .... or sometimers
  25. coaly

    coaly Fisher Moderator Staff Member

    Joined:
    Dec 22, 2007
    Messages:
    1,546
    Loc:
    NE PA
    Go to one of his posts, and under everyones name and avatar is a "Start a Conversation". By clicking it, you will get a page just like a forum page but it will post only to him. Same as a 'Private Message' in most forums.
    I think he was down to his last set for himself. They do come up on ebay occasionally.

    Your stove makes more sense after reading the tag ! Your first post says "single door brass glass honey bear non mobile home model". So I had no clue as to what you had. The tag reads it IS mobile home certified with use of intake air kit (supplied by DuraVent with rodent guard) and mobile home pedestal. (intake air through floor from under mobile home) So, yeah, I know what you've got.

    To install in conventional housing, you need either the residential pedestal, (uses inside air and raises stove higher than legs) or legs with the radiation shield. (UL testing is done with these in place to come up with floor clearance) So you'll need to figure out if you have the mobile or residential pedestal if you use it.
    Below is the radiation shield for lowered leg use. This is easily fabricated. Shield was discussed here as well;
    http://www.hearth.com/talk/threads/someone-help-identify-this-fisher.81062/

    Honey Bear Bottom Shield.jpg

    Maas polish on the door ! Try it, you'll like it. (it's a Mikey thing)
