hot floor concern

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by cc rangeley, Jan 7, 2013.

  1. rideau

    rideau Minister of Fire

    Joined:
    Jan 12, 2012
    Messages:
    1,920
    Loc:
    southern ontario
    double wall pipe allows such close clearances I'm surprised it could be the culprit here, causing heating of the pad two feet below it? Could there be an area in the back bottom of the stove that isn't being shielded? Or could the shield be mounted incorrectly?

    Helpful Sponsor Ads!





  2. KaptJaq

    KaptJaq Minister of Fire

    Joined:
    Jan 31, 2011
    Messages:
    706
    Loc:
    Long Island, NY
    Pics would be nice...

    The shield has a flat bottom with three flaps that fold out. The side flaps connect to the bottom edge of either side of the stove, the back flap connects to the bottom edge of the back. They slope down to the main part of the shield just under the ash pan. If the installer forgot to unfold the back flap then the heat shield would appear to be in place but would not be protecting the entire bottom. This would explain the higher temperature towards the back of the stove. The ash pan also helps shield the bottom but only the front two-thirds of the stove.

    I feel 200 degrees is too warm for an ember-only hearth on a stove running in the <500 degree range. Something is not right.

    KaptJaq
    Joful and Jags like this.
  3. SIERRADMAX

    SIERRADMAX Feeling the Heat

    Joined:
    Jan 13, 2011
    Messages:
    290
    Loc:
    RI
    I have a Harman Oakwood, which by most is a large stove. I am also concerned about my hearth. I have a single layer of brick used as a hearth which I knew wouldn't suffice for the Oakwood without the bottom heat shield. According to the isntructions, with the heat shield, the stove can be installed on a non-combustable floor protector with zero insulating value. I've never ran the IR gun underneath the stove but last night, the brick is quite warm to the touch. It's got me concerned now, too.
  4. Joful

    Joful Minister of Fire

    Joined:
    Mar 7, 2012
    Messages:
    6,213
    Loc:
    Philadelphia
    KaptJaq knows his stuff...
    rideau likes this.
  5. wkpoor

    wkpoor Minister of Fire

    Joined:
    Oct 30, 2008
    Messages:
    1,854
    Loc:
    Amanda, OH
    I had the post awhile back about my hearth reaching 300. The pad says it has an insulation factor of 1.58. Downstairs underneath the sub floor was just ambient. I installed a heat shield and temps are now 150 on the tile. I'm perfectly happy with that. I noticed the tile has the abilty to absorb and hold heat well past when the stove has gone cold so I actually like storing some heat there.
    A week ago I was over at a buddies house and the tiles under his Serria was nearly room temp with te stove at 650. I guess every stove is a little different in where and how it radiates heat out.
  6. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    You are right, KaptJaq. I got my answer yesterday from Jotul. The bottom heat shield is missing! The store I bought it from had asked me to send photos so they could see what was going on, but I called Jotul first and was so pleased they called me back. They said it was OK without the heat shield, but I dont feel comfortable to go much longer without it. The store I bought it from is going to give me one. Do I need the installer to come back & mount it or is it something I could do (easily)? ...Thanks for your input & to others who helped me get my answer. I knew something wasn't right.
  7. KaptJaq

    KaptJaq Minister of Fire

    Joined:
    Jan 31, 2011
    Messages:
    706
    Loc:
    Long Island, NY
    It is something you should be able to easily do yourself. The instructions are in your manual. Unfold it and bold it onto the back & side bottom edges...

    I think you will be much more comfortable with the heat shied in place...

    KaptJaq
  8. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    I have to say that right after the stove was installed I was reading the manual & saw the diagram of the bottom geat shield and wondered it it was attached. Plus I saw four extra nuts/screws left over from the installation. But then I figured of course he wouldve installed it... I did read the manual and it said the attached heat shield before attaching the sides of the stove, so I wonder if the sides need to come off to mount shield? If that's the case, my installer needs to get back here and do it himself. Thanks for your help. You were spot on!
  9. KaptJaq

    KaptJaq Minister of Fire

    Joined:
    Jan 31, 2011
    Messages:
    706
    Loc:
    Long Island, NY
    I haven't done a Rangeley in a while. The document I have for the installation of the heat shield (linked below) refers to the sides of the heat shield not the sides of the stove. See page 6.

    It should be a fairly simple install, the only complication is twisting your hands to work under the stove. Let the stove cool first, then try it.

    http://www.jotul.com/FileArchive/Technical Documentation/Wood Stoves/Jøtul F 50 TL/Install_139262_Rev_A Manual, F50TL.pdf

    KaptJaq
  10. MasterMech

    MasterMech Guest

    I was able to install mine after the stove was set in place.
  11. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    Really? Did you burn without it?
  12. MasterMech

    MasterMech Guest

    No, it was installed before the first fire.
  13. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    Well I got the heat shield & tried to install it, but I broke it along the perforations that you're supposed to unfold! Wow, do I feel stupid. Im thinking as long as each piece is screwed in, it will at least have some shielding. Im going to ask my installer to take over bc I dont want to make it worse - do you think I can still use it?
  14. rideau

    rideau Minister of Fire

    Joined:
    Jan 12, 2012
    Messages:
    1,920
    Loc:
    southern ontario
    I have no idea! Probably a really good idea to have your installer take over....good luck with this. A shame you are having trouble. If they had only done the job properly in the first place....
  15. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    Can any Rangeley folks post a picture that shows the bottom heat shield?I wonder what it looks like installed .
  16. MasterMech

    MasterMech Guest

    These aren't awesome pics but you can see the heat shield.

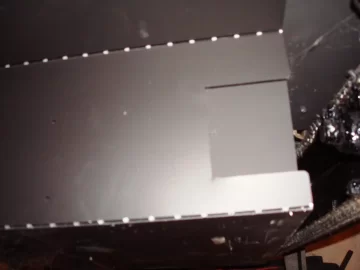

    DSC03900.JPG H/S is the bottom most piece of sheet metal under the ash pan.

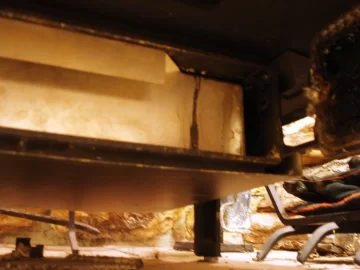

    DSC03905.JPG Another view.

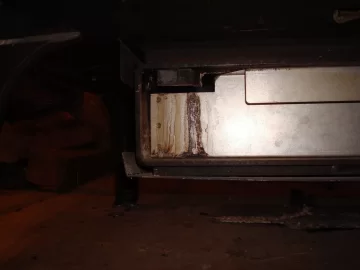

    DSC03902.JPG Side view (left side standing in front of the stove)

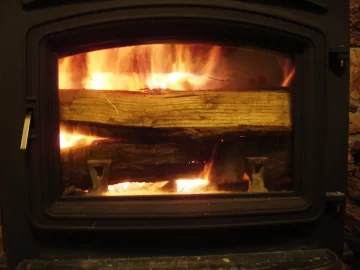

    DSC03897.JPG Doin' it's thang. :cool:
  17. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    Nice photos. Thanks so much! Turns out since it heat shield broke when I unfolded the rear piece to attach it I will need to find a welder to fix it so it can be mounted. I may just give it to stove store to get fixed as I'm tired of this saga. If only the installer had read the manual!
  18. Heather

    Heather New Member

    Joined:
    Nov 14, 2012
    Messages:
    16
    Loc:
    Washington State
    Don't feel stupid...ours snapped at the perforations too when we installed it. Even with the heat shield in place we decided that it was too hot under the stove for our comfort. We had a sheet metal heat shield fabricated. It is on 1" legs and extends the full length of the stove and about 4" beyond the cast iron ash shelf. It is sprayed black, and actually looks like it belongs there. Someday we will have our hearth re-done (it is from another era), but in the meantime this gives us peace of mind.
  19. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
  20. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    Thanks, Heather. That's interesting. I will be looking for a welder to fix my sheet. How much did your custom made one cost? As an aside- I left the broken shield on the floor under the stove and neither it nor the hearth beneath is getting hot. I wonder if it's due to a pretty full ash pan. In any case this whole heat shield thing has been a saga!
  21. Heather

    Heather New Member

    Joined:
    Nov 14, 2012
    Messages:
    16
    Loc:
    Washington State
    It cost about $100 to have the shield made. I think the full ash pan might help a bit, but I also think this stove generates a lot of heat out of the bottom. Our old stove had firebricks on the floor of the firebox and the hearth never got uncomfortably warm. With the Rangeley there just isn't much between the fire and the floor.
  22. cc rangeley

    cc rangeley New Member

    Joined:
    Jan 7, 2013
    Messages:
    37
    I agree but still jotul requires only ember protectio with the heat shield so they must be OK with the heat.
