I might get really madd today. what is this?

Post in 'The Pellet Mill - Pellet and Multifuel Stoves' started by Buc White, Oct 11, 2012.

  1. Buc White

    Buc White
    Expand Collapse
    Member

    Joined:
    Sep 13, 2012
    Messages:
    71
    Likes Received:
    16
    Loc:
    Connecticut

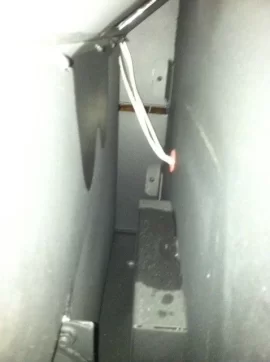

    So after the install about three weeks ago I had smoke from an unsealed pipe. I called the company and they sent the same installers back out. I couldn't see the smoke but I could smell it now. Somebody else comes out and fixes my problem. I do a check over and find this. I have never looked in there before so I don't know if its normal. Any ideas? something to worry about or is it something the gentleman did yesterday sealing something? photo (7).JPG

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. nailed_nailer

    nailed_nailer
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 29, 2007
    Messages:
    855
    Likes Received:
    127
    Loc:
    Cape Cod, Ma
    Can't tell what you are questioning.
    Don't see any part of the vent path in the picture?

    Not familiar with that stove so don't know what the picture is showing.

    If you are referring to the oil stain, Then it looks normal to me.
    The question is...... what was oiled. Again, hard to tell from the picture.

    Did your smoke smell go away?

    Easiest way to check for smoke leak is in a dark room with a bright flashlight.
    When stove is first started it will produce the most smoke.
    Examine all areas of venting using a flashlight across the seams.
    Thoroughly check the appliance adapter at the rear of stove and it's connection to the exhaust blower.

    Good Luck,
    ---Nailer---

    Collapse Signature Expand Signature
  3. Buc White

    Buc White
    Expand Collapse
    Member

    Joined:
    Sep 13, 2012
    Messages:
    71
    Likes Received:
    16
    Loc:
    Connecticut
    sorry, i was talking about the stains. the smoke smell is gone. they took care of the that

    Collapse Signature Expand Signature
  4. smwilliamson

    smwilliamson
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 28, 2009
    Messages:
    4,411
    Likes Received:
    747
    Loc:
    Southcoast, MA
    What are we looking at?

    Collapse Signature Expand Signature
  5. Eatonpcat

    Eatonpcat
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2011
    Messages:
    2,070
    Likes Received:
    956
    Loc:
    Eaton Township, Ohio
    Sheet metal!

    Collapse Signature Expand Signature
  6. DexterDay

    DexterDay
    Expand Collapse
    Guest

    Prob oil/grease coming out of auger. Right above that area on the Classic Bay is the auger.

    I say, no worries :) The augers on these are unlike other stoves. Not a very good seal on them. IMO.

  7. smwilliamson

    smwilliamson
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 28, 2009
    Messages:
    4,411
    Likes Received:
    747
    Loc:
    Southcoast, MA
    where...what part of the stove? that picture shows me nothing really. I see some wet but I cannot tell where it is on the stove

    Collapse Signature Expand Signature
  8. DexterDay

    DexterDay
    Expand Collapse
    Guest

    It is between the firewall and the back wall of the heat exchanger (actually the back ash trap/clean out) on the Classic Bay.

    There is a cut out, in the heat exchange plenum and the auger flight is directly above it.

    Grease/Oil from auger got hot and leaked down.

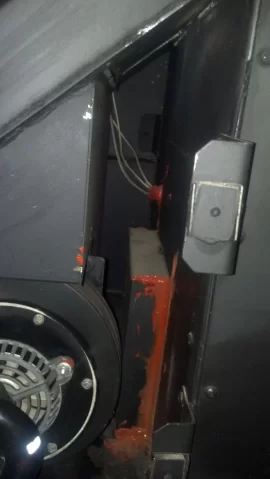

    Here is a farther pic. Dont judge the High temp silicone. I have an OAK hooked up and I have sealed almost every little Nook and Cranny, to make it a sealed system. All I had was Red the day I wanted to do it (and a Few Cold ones :))



  9. Buc White

    Buc White
    Expand Collapse
    Member

    Joined:
    Sep 13, 2012
    Messages:
    71
    Likes Received:
    16
    Loc:
    Connecticut
    Can i seal that on my stove dexter with no OAK?

    Collapse Signature Expand Signature
  10. SmokeyTheBear

    SmokeyTheBear
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 10, 2008
    Messages:
    13,363
    Likes Received:
    1,662
    Loc:
    Standish, ME
    What the guy did yesterday is likely between the combustion blower and the vent pipe.

    Snap a few more pictures down lower and towards the back.

    Collapse Signature Expand Signature
  11. DexterDay

    DexterDay
    Expand Collapse
    Guest

    Without an OAK it wont really matter. Your gonna suck inside air either way. With an OAK hooked up, it helps to seal the system and make sure you suck outside air (mainly) .

    Once you hook up an OAK, hit me up and I will show/tell you what all needs sealed. There are lots of points of air entry (holes in the bottom hearth section of stove, cracks in the plenum, hole for ignitor and thermocouple wires, etc)

  12. smoke show

    smoke show
    Expand Collapse
    Guest

    I've seen 3 year olds finger paint better than that... :p
