My New "Log Rite" Log Arch

Post in 'The Gear' started by Battenkiller, Jul 21, 2011.

Thread Status:
Not open for further replies.
  1. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line

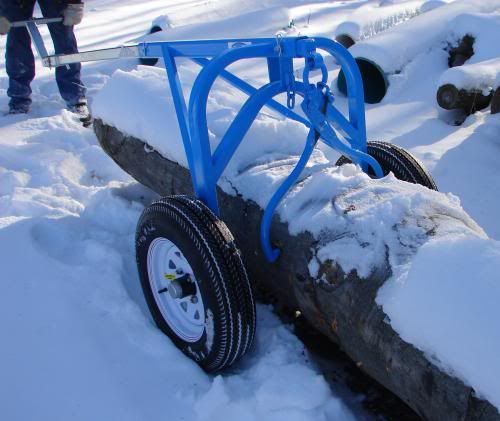

    I've been wanting one of these for a while now, but the smallest one that will fit my needs is about $1000.


    [​IMG]



    I downloaded some pics of the older (welded) design from the Log Rite site and realized I could make a clone for next to nothing. I overlaid a grid onto the photos (not the model shown above) so I could figure out the scale of everything from the measurements given on the website. I determined that they used 1 1/2" square steel tubing, and by using the weight given for the device, I was able to calculate the gauge of the steel from the cut list I made.


    I went to the local steel yard and bought one 21' piece of 1 1/2" X 1 1/2" welded steel tubing with 3/16" wall thickness. $54. I went home and cut it up with my cheap used tool sale horizontal band saw. Here's the layout of the arch itself:



    [​IMG]



    A buddy gave me one of those wheeled jacks for moving trailers around the lot. I pulled the wheels and mounted them on the arch frame. Then I welded a 6' piece of the square tubing to the top (using a sheetrock square to get it as square as I could), braced the handle heavily near the fulcrum area with more square tubing, added side braces made from some scrap pipe, and stuck a pipe into the end to determine the best resistance arm length for the wood I want to lift. Here's a pic of the front with my log tongs hanging off the pipe, grabbing onto a piece of pine about 3 1/2' long and 22" across - about 300 pounds.


    [​IMG]



    Here's a side view of the arch with the log held up:


    [​IMG]



    Here's Lady BK, all 5'6" and 142 pounds of her, lifting up the log all by herself. The welding gloves are only because I just completed that weld at the handle end and the steel was still hot.


    [​IMG]



    Now she's having a real easy time of it because I slid the ring on the tongs back and shortened up the resistance arm a bunch. Notice how relaxed she is, and she isn't even having to hold the handle at the very end for more leverage. As soon as I can find a piece of 1 1/8" cold-rolled steel that will fit snug inside the front of the handle, I'll drill a few holes through it so I can make it as adjustable as I want it. I'll be making a 4' extension handle for pulling long logs (up to 16'), welding on some pipe for pull handles, then sanding, priming and painting it.

    I may spring for new wheels and put these ones back on the trailer jack, but I kinda like having the whole thing for under $60 for now. I already had the lifting tongs for lifting logs out in the field onto the truck bed, but you could go with skidder tongs to save a bit of money, or just use some chain, or even some HD rope to hold it tight so you can lift it. The tongs are fast, though.


    [​IMG]

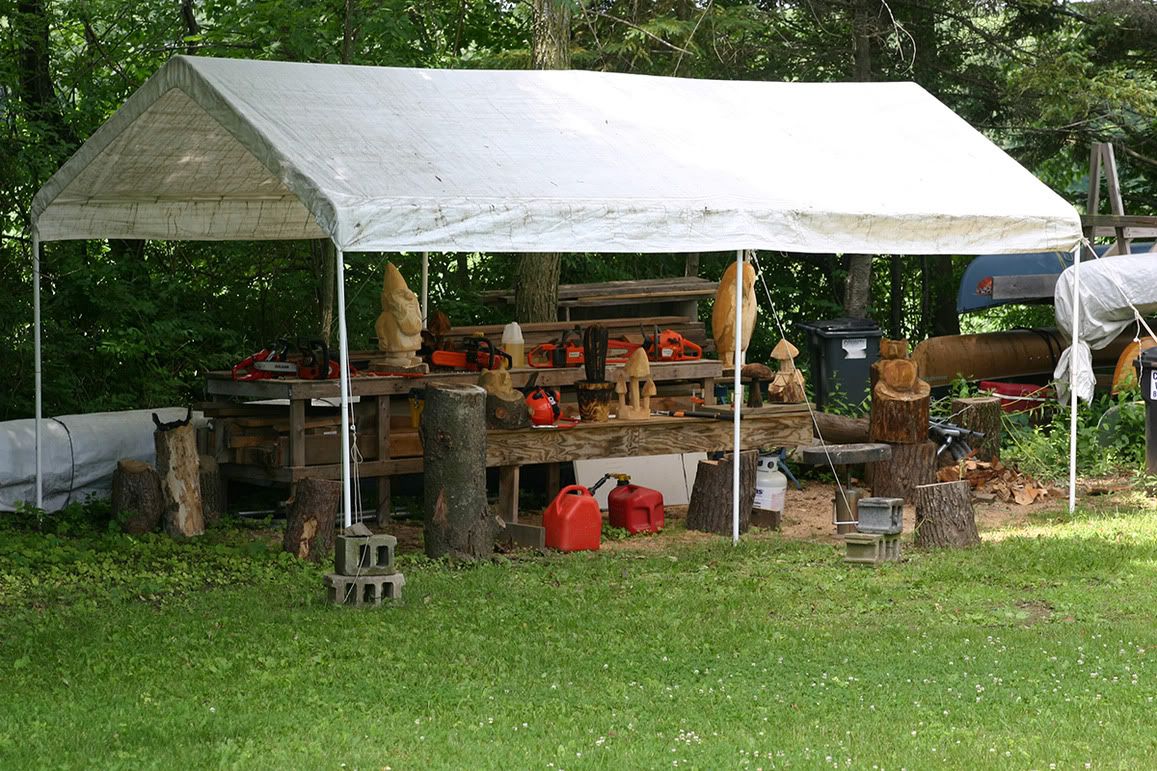

    Here's what I want to use it for.


    [​IMG]



    I have to get the logs about 150' away from where I'm storing and cutting them, and up a slight grade as well. I ain't gonna try it with a hand truck (some of them I need to move will be 600-700 pounds), and I don't want to winch them up onto the truck bed and do the same to get them off again, over and over again. It'll come in handy for bucking up logs for firewood as well, or rolling them off somebody's property during a scrounge instead of digging up their lawn with the truck.

    I'll post some more pics of it once it's finished, hopefully with some bigger logs. It rolls real nice, even up the hill. I'd love to eventually mount some 12" wheels with 20" tires on it, but that means spindles, hubs and the wheels themselves. Lotsa dough. I'll make due with it the way it is until it won't do what I want it to do. Nice thing about this stuff is you can cut it apart and put it back together any way you want, all you need is a wee bit of time.

    I'll also get together a complete BOM and an accurate cut list, so anybody wanting to make one won't have to start from square one.

    Helpful Sponsor Ads!





  2. RNLA

    RNLA Minister of Fire

    Joined:
    Sep 18, 2010
    Messages:
    762
    Nice to do it yourself! cool!
  3. snowleopard

    snowleopard Minister of Fire

    Joined:
    Dec 9, 2009
    Messages:
    1,495
    That is incredibly cool!

    So that's the little lady that bought your line? That gorge behind her, is that the one where you dumped the ashes and almost burned down the neighborhood last winter?
  4. maxed_out

    maxed_out New Member

    Joined:
    Jan 19, 2010
    Messages:
    592
    Loc:
    Central Pa
    +1, nice job. Will be a great tool.
  5. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line
    Thanks, guys, it was a fun project. Been putting it off for a while now. Amazing how easy things get when you stop procrastinating and just do it. Dare I try my own splitter next?

    Yes, Snow, that's the gal. She not only bought my line, she bought the whole hook, line and sinker. Apparently, she's still fallin' for it, too. After 32 years, I still feel like the luckiest man alive. :)

    And for the record... SHE dumped the ashes over the bank. I'm the one who saved the neighborhood. :coolgrin:
  6. smokinj

    smokinj Minister of Fire

    Joined:
    Aug 11, 2008
    Messages:
    15,972
    Loc:
    Anderson, Indiana
    Very Sweeeeet set-up!
  7. snowleopard

    snowleopard Minister of Fire

    Joined:
    Dec 9, 2009
    Messages:
    1,495
    She bought the line AND she's still covering for you . . . you are a lucky guy indeed . . . . :)
  8. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line
    SJ, you guys doing milling could really benefit from one of these arches. With the extension handle for added leverage, you can lift a 2000 pound log (22" walnut log 12' long) in an instant, then strap it to the handle and tow it with a quad or garden tractor to where you want to mill. Mine will take a 25" diameter log between the legs. By going to 2" square tubing you could make it even bigger, maybe 30", and still be light enough to hoist it onto the truck by yourself.
  9. golfandwoodnut

    golfandwoodnut Minister of Fire

    Joined:
    Sep 25, 2009
    Messages:
    1,427
    Loc:
    Pittsburgh PA
    Nice job, I have to learn to weld one of these days. I guess you will find your limits on weight, I am sure pushing up hill is alot tougher than holding on down hill (at least when you let go it will stop itself). I remember we were pushing our boat around in the driveway because my wife did not like its location. I realized it was getting away from us and had to let go, that was not a fun day as it ended up at the base of a tree (glad we had insurance).
  10. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line
    Me, too. :red:

    Don't look too closely at those welds, a real welder would laugh. But they have multiple passes and excellent penetration, so they're strong as hell. That's all I care about.

    My friends keep telling me, "Well... you're a welder." I say, "No... I have a welder." Those little pocket MIGs are easy to use, just need a little practice. You practice on the scrap cutoffs, they're free. The units themselves have come way down in price since I bought mine over ten tears ago. Even if you don't weld, you can cut the stuff up in your spare time, one cut at a time with a Sawzall, or even a HD hacksaw. I worked for years with only a Lenox HD hacksaw frame and an angle grinder. With those tools to cut and prep the steel, a Craigslist ad will likely turn up dozens of amateur welders in your area who will put it together for chump change.
  11. Jags

    Jags Moderate Moderator Staff Member

    Joined:
    Aug 2, 2006
    Messages:
    15,247
    Loc:
    Northern IL
    BK - that is looking good. I was going to ask about the possibility of a trailer hitch (quad, garden tractor, etc.) but I see you have thought of that. Keep an eye out for old trailers (even boat or snowmobile trailers). The spindles and hubs are usually still useable, even if the rest of the rig is shot.

    The other thing I have seen done that appears to work well is a hand crank winch in place of tongs. Loop the cable under log, reattach to arch and winch it up. I think that may be used for larger logs. For your carving blanks, I bet that tong setup your using is slick.
  12. smokinj

    smokinj Minister of Fire

    Joined:
    Aug 11, 2008
    Messages:
    15,972
    Loc:
    Anderson, Indiana

    Yea I can see where it would be handy for lots of stuff... ;-)
  13. Backwoods Savage

    Backwoods Savage Minister of Fire

    Joined:
    Feb 14, 2007
    Messages:
    27,815
    Loc:
    Michigan
    Nice job Batten!
  14. Jutt77

    Jutt77 Feeling the Heat

    Joined:
    Dec 18, 2010
    Messages:
    371
    Loc:
    Idledale, Colorado
    Nice job BK. I didnt even know such an animal existed until I saw your post. That would come in really handy...
  15. Capt

    Capt Burning Hunk

    Joined:
    Jun 13, 2009
    Messages:
    124
    Loc:
    Michigan
    Looks great! Good luck with it.
  16. oldspark

    oldspark Guest

    Nice job BK, love your wood carvings, I wanted to try them but I have no talent for it.
  17. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line
    Neither do I. Thankfully few others do, either. Lots of bad chainsaw artists out there. It comes quickly, just set a block of wood up on top of another and go at it. Think about what a bear or a cross or a mushroom or whatever you want to carve looks like in your head and slowly take away everything that's not that. Nice thing about chainsaw carving is that they all have their own individual charm... even the butt-ugly ones.

    Give it a rip, it's a real blast. Then burn the evidence and try it again. Nothing ventured, nothing gained. Ten logs in, you'll have the feel for it, guaranteed. If nothing else, it's a fun way to break in a new saw.
  18. oldspark

    oldspark Guest

    Sounds good, it would be fun to see pictures of what hearth members could come up with.
  19. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line
    Hey, we should do that. We could try to do something each week for a month and post pics here. Nothing fancy, maybe make something creative out of one of those unsplitable rounds we all love to hate instead of just noodling the thing. Could be as simple as some abstract shape, done the best you can. That's how 99% of the guys doing this got started, getting bored with a saw in their hands. Beats racing your buddy cutting cookies, at least for me it does.
  20. Flatbedford

    Flatbedford Minister of Fire

    Joined:
    Mar 17, 2009
    Messages:
    5,235
    Loc:
    Croton-on-Hudson, suburbs of NYC
    Does she know you put her height and weight on the internet? Why not really get yourself in trouble and post her age too!
  21. Battenkiller

    Battenkiller Minister of Fire

    Joined:
    Nov 26, 2009
    Messages:
    3,732
    Loc:
    Just Outside the Blue Line
    C'mon... Does a 50 year-old woman really still care about such things? :roll:
  22. Flatbedford

    Flatbedford Minister of Fire

    Joined:
    Mar 17, 2009
    Messages:
    5,235
    Loc:
    Croton-on-Hudson, suburbs of NYC
    :lol:
  23. PapaDave

    PapaDave Minister of Fire

    Joined:
    Feb 23, 2008
    Messages:
    5,740
    Loc:
    Northern MI - in the mitten
    Well BK, nice knowin' 'ya. :coolsmile:
  24. thewoodlands

    thewoodlands Minister of Fire

    Joined:
    Aug 25, 2009
    Messages:
    10,825
    [quote author="Battenkiller" date="1311223752"]I've been wanting one of these for a while now, but the smallest one that will fit my needs is about $1000.


    [​IMG]



    I downloaded some pics of the older (welded) design from the Log Rite site and realized I could make a clone for next to nothing. I overlaid a grid onto the photos (not the model shown above) so I could figure out the scale of everything from the measurements given on the website. I determined that they used 1 1/2" square steel tubing, and by using the weight given for the device, I was able to calculate the gauge of the steel from the cut list I made.


    I went to the local steel yard and bought one 21' piece of 1 1/2" X 1 1/2" welded steel tubing with 3/16" wall thickness. $54. I went home and cut it up with my cheap used tool sale horizontal band saw. Here's the layout of the arch itself:



    [​IMG]



    A buddy gave me one of those wheeled jacks for moving trailers around the lot. I pulled the wheels and mounted them on the arch frame. Then I welded a 6' piece of the square tubing to the top (using a sheetrock square to get it as square as I could), braced the handle heavily near the fulcrum area with more square tubing, added side braces made from some scrap pipe, and stuck a pipe into the end to determine the best resistance arm length for the wood I want to lift. Here's a pic of the front with my log tongs hanging off the pipe, grabbing onto a piece of pine about 3 1/2' long and 22" across - about 300 pounds.


    [​IMG]



    Here's a side view of the arch with the log held up:


    [​IMG]



    Here's Lady BK, all 5'6" and 142 pounds of her, lifting up the log all by herself. The welding gloves are only because I just completed that weld at the handle end and the steel was still hot.


    [​IMG]



    Now she's having a real easy time of it because I slid the ring on the tongs back and shortened up the resistance arm a bunch. Notice how relaxed she is, and she isn't even having to hold the handle at the very end for more leverage. As soon as I can find a piece of 1 1/8" cold-rolled steel that will fit snug inside the front of the handle, I'll drill a few holes through it so I can make it as adjustable as I want it. I'll be making a 4' extension handle for pulling long logs (up to 16'), welding on some pipe for pull handles, then sanding, priming and painting it.

    I may spring for new wheels and put these ones back on the trailer jack, but I kinda like having the whole thing for under $60 for now. I already had the lifting tongs for lifting logs out in the field onto the truck bed, but you could go with skidder tongs to save a bit of money, or just use some chain, or even some HD rope to hold it tight so you can lift it. The tongs are fast, though.


    [​IMG]



    Here's what I want to use it for.


    [​IMG]



    Saw freaks, the both of you! ;-) How did the dinner go yesterday?

    zap
  25. Bigg_Redd

    Bigg_Redd Minister of Fire

    Joined:
    Oct 19, 2008
    Messages:
    3,965
    Loc:
    Shelton, WA

    Feminine vanity has no expiration date
