New Heatilator Eco WS22 Install

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by PhilDeez406, Mar 16, 2013.

  1. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5
    Yes the chimney will be replaced. Since the stove company was five to six weeks out on installs, I left the old chimney, rain cap, and storm collar in till then.

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5

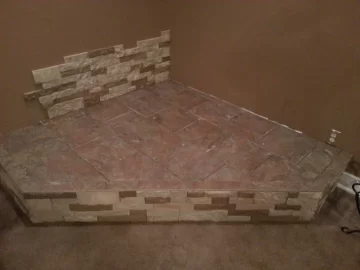

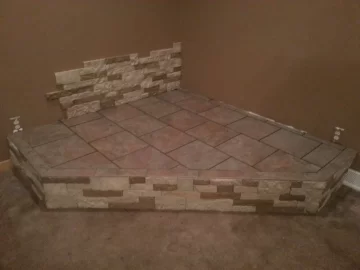

    tilelow.JPG tilemid.JPG

    Update: After being down and out for about a week with bronchitis, I've finally managed to get the hearth pad tiled. Now I have to wait a few days before grouting and finally calling it good. Well except for the wall stone. Man it seems like it never ends. On the plus side I found a local logging company that said they have about 50 truck loads of splits laying in their yard that they will give me for free. I just have to go get them. They said most have been laying there for several years, so hopefully they are pretty much seasoned. According to them it's all hickory and walnut. Score one for me.

    Collapse Signature Expand Signature
    Brokenwing, weatherguy and DexterDay like this.
  3. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5

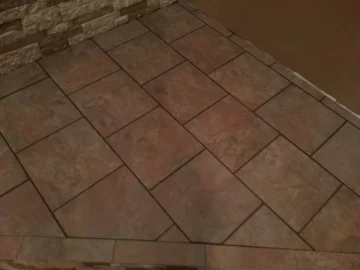

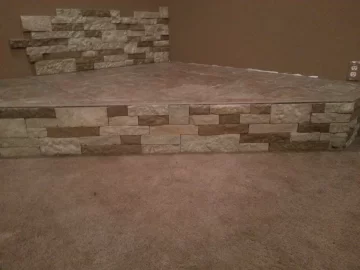

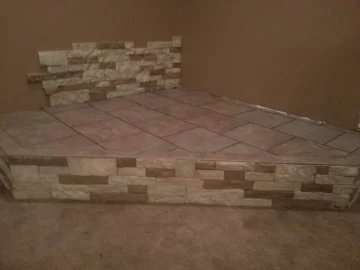

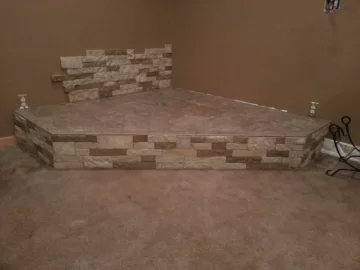

    Update: Finally done with the heath. I got the tile grouted thursday night. Looks great I think. Now only the wall stone to finish. What do you think?
    overhead.JPG grout.JPG lowegrout.JPG

    Collapse Signature Expand Signature
  4. BrotherBart

    BrotherBart
    Expand Collapse
    Hearth.com LLC Mid-Atlantic Division
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    32,380
    Likes Received:
    9,608
    Loc:
    Northern Virginia
    Nice.

    Collapse Signature Expand Signature
  5. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5

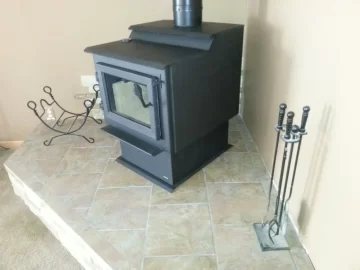

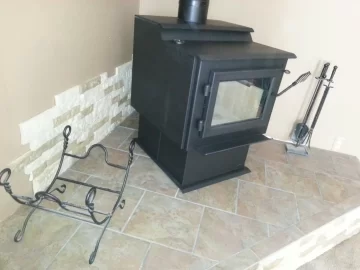

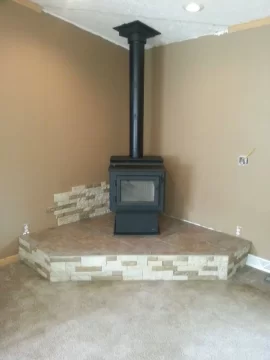

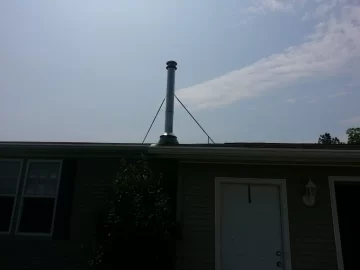

    Update: Finally had my install today. The guys showed up right on time and got it installed perfectly. Now only to finish the wall stone and mantle. My chimney is a heck of a lot taller than the old one... Kinda suprised me. What do you think?? right side.JPG left side.JPG chimney.JPG center.JPG

    Collapse Signature Expand Signature
  6. DexterDay

    DexterDay
    Expand Collapse
    Guest

    Looks beautiful and the taller chimney you will be thankful for. Should help the stove overall in all weather. Both shoulder seasons when draft can be weak and in the dead of Winter, it will allow you to shut it down a little more.

    Congrats. Thats gonna be beautiful when finished

  7. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5

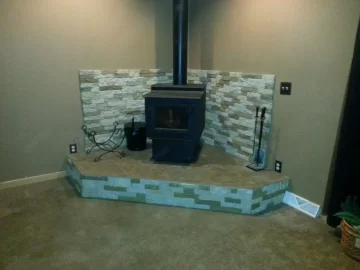

    Update: Everything is done except for the mantle. I have started burning pretty regulary, and wow this thing will throw out the heat. I can throw two splits in and it will burn all night and leave me a nice bed of coals in the morning. It is something to see when the secondarys light and take off. Anyways here's a couple pictures of the mostly completed project and one of it burning. Let me know what you think. stove.jpg fire.jpg

    Collapse Signature Expand Signature
    Brokenwing likes this.
  8. ffjosh

    ffjosh
    Expand Collapse
    New Member

    Joined:
    Nov 6, 2013
    Messages:
    15
    Likes Received:
    0
    Loc:
    Columbia City IN
    This fireplace is almost exactly like mine! If you dont mind me asking what did the new chimney cost you?

  9. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5
    If I remember right the chimney was about 2000 installed.

    Collapse Signature Expand Signature
  10. Hogwildz

    Hogwildz
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 3, 2006
    Messages:
    7,741
    Likes Received:
    1,520
    Loc:
    Next to nuke plant Berwick, PA.
    Are you going to use metal lath on the wall and then mortar the stone to it? Nothing is going to adhere to painted dry wall for very long.

    Collapse Signature Expand Signature
  11. ffjosh

    ffjosh
    Expand Collapse
    New Member

    Joined:
    Nov 6, 2013
    Messages:
    15
    Likes Received:
    0
    Loc:
    Columbia City IN
    Holy cow lol

  12. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5
    I put up the stone on the wall using loc tite adhesive. I haven't had any problems with the stones coming loose, even with the stove running around 550-600 degrees. The heat shields on this stove are amazing. The stone isn't even hot to the touch.

    Collapse Signature Expand Signature
  13. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,453
    Likes Received:
    7,632
    Loc:
    South Puget Sound, WA
    Normally adhesive is not used near a wood stove. Most are combustible and are not rated for service much above 120F. It's good to hear the walls are staying cool and that the stove has nice shielding.

    Collapse Signature Expand Signature
  14. PhilDeez406

    PhilDeez406
    Expand Collapse
    Member

    Joined:
    Dec 4, 2012
    Messages:
    32
    Likes Received:
    5
    The clearances from the corners are only 3 inches, but i'm almost six inches from the corners. I wanted to make sure nothing got to warm.
