New Install - LOPI 1750

Post in 'The Inglenook' started by Greg123, Jun 13, 2009.

Thread Status:
Not open for further replies.
  1. Greg123

    Greg123 New Member

    Joined:
    Jul 21, 2006
    Messages:
    196
    Loc:
    WNY

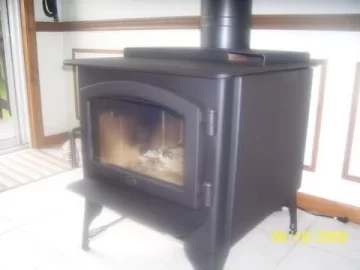

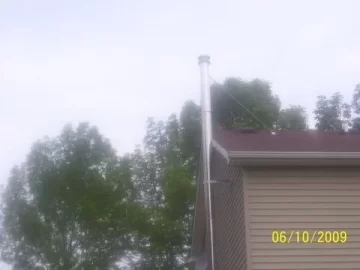

    Just had my new stove & Stainless Chimney installed. It's a lopi republic 1750. The building inspector signed off on it yesterday. I took some pics of the stove and chimney, and my wood pile. I have approx. 5 cord total, with 95% of which is ash.

    Attached Files:

    Helpful Sponsor Ads!





  2. Wood Heat Stoves

    Wood Heat Stoves Minister of Fire

    Joined:
    Jun 12, 2009
    Messages:
    1,901
    Loc:
    Nevada City, California
    nice tee system, i see you opted to extend out beyond the eve increasing your horizontal run by a bit..
    looks like a fun job!
    i sell the Avalon 1750, very nice stove, especially for the price.
  3. wldm09

    wldm09 New Member

    Joined:
    Mar 16, 2009
    Messages:
    151
    Loc:
    Northwoods, WI
    Nice stove. Is that chimney the solid packed insulation type? I'm interested in if you experience any creosote problems because of the temperature change with the chimney out in the open air. If you don't have issues, I might do the same thing.
  4. Highbeam

    Highbeam Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    9,470
    Loc:
    base of Mt. Rainier on the wet side, WA
    I see the swingset by your nice long pile. Something about a woodpile attracts kids and you would feel pretty bad if that pile dumped over on them. Not only for their pain but because the whole thing might tip.

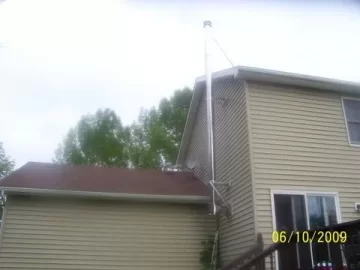

    I see you did a break in fire. Dit the paint smoke real bad? Your chimney is tall. Did you really need to ge that high above your ridge? High enough to make sweeping more difficult and necessitate the brace?

    That looks like a nice rugged stove with stout hinges. Should serve you well.
  5. Greg123

    Greg123 New Member

    Joined:
    Jul 21, 2006
    Messages:
    196
    Loc:
    WNY
    Thanks everyone

    Woodsman I have no Idea about the creosote just got it installed and I have only done a break-in fire, but some members have had no problems. See the link below. The chimney is solid packed insulation.

    http://www.hearth.com/econtent/index.php/forums/viewthread/38313/


    Highbeam - I agree kids love woodpiles, but my kids are a little older now, and they have always been around woodpiles since they where little, I taught them at a young age that they are not play gym.

    The paint smell was too bad, it's nice doing a break-in fire when the weather is nice to keep all the windows open.

    There is a total of 5 section of class A each section is 4 feet plus the tee and cap. Following the 2/10 rule it's approx 2 inches higher than it needs to be the picture does make it look higher. I always sweep from the bottom up, this setup is perfect for this with the tee on the outside, the only time I would go on the roof is if the chimney cap gets cloged with creosote, which burning seasoned wood does not happen to often.
  6. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    29,153
    Loc:
    Northern Virginia
    Good looking stove and woodpile. Always good to see another steel stove kinda guy.
  7. savageactor7

    savageactor7 Minister of Fire

    Joined:
    Jan 25, 2008
    Messages:
    3,700
    Loc:
    CNY
    Yikes...glad I don't have to clean that.... but lovely stove and wood pile. Very neat too.
  8. wldm09

    wldm09 New Member

    Joined:
    Mar 16, 2009
    Messages:
    151
    Loc:
    Northwoods, WI
    Greg - thanks for sending that link on. A friend of mine has problems with an "up and out" but I don't think he has the hard packed insulation style and not sure on his seasoning techniques. Now I need to go get a quote! I was thinking of going with pellets but now.... hmmmm... Thanks! Woodsman

    Attached Files:

  9. Greg123

    Greg123 New Member

    Joined:
    Jul 21, 2006
    Messages:
    196
    Loc:
    WNY
    The “up and out” was really the only option for me, without doing some major renovating, which is just not cost effective for me. Cleaning is easy and would take no time at all, if I find creosote building faster than expected its easy to go outside unscrew the access to the tee and run the brush up.. What’s nice too is all the mess stays outside. To give you an Idea of cost the total for the Stove + Double wall stove pipe + Chimney + installation was around $4,500, and with the tax credit I would get $1,350 back.

    I had the stove itself installed exceeding manufactures recommendation for clearances; I figured I had the room why not. The LOPI Republic 1750 requires 4 ¼ inches clearance from back wall with a double wall stove pipe; I had the installers go 10 inches. I figured when this thing is cranking in the winter, it will give me a little extra peace of mind having the extra clearances.
  10. gzecc

    gzecc Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,035
    Loc:
    NNJ

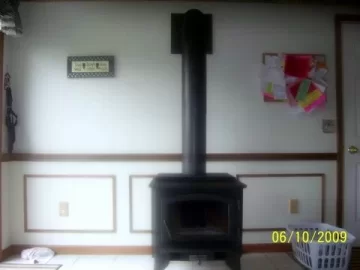

    I am not an expert. I have a question regarding the wall behind the stove. I thought that wall needed to be non combustible or a certain distance from the stove? In the pic it looks close and combustible.
  11. Greg123

    Greg123 New Member

    Joined:
    Jul 21, 2006
    Messages:
    196
    Loc:
    WNY
    Clearance to a combustibles back wall for this stove 4 1/4 inch's using double wall pipe, I had it installed at 10 inches using double wall pipe. I have more the doubled my clearances.
  12. JR82

    JR82 New Member

    Joined:
    Apr 20, 2009
    Messages:
    24
    Loc:
    NNJ
    Looks good makes me even more excited for my 1750 to show up! Did you have to order it or was it stocked by the dealer? I'm wondering how long its going to take, I ordered mine about a month ago.
  13. Greg123

    Greg123 New Member

    Joined:
    Jul 21, 2006
    Messages:
    196
    Loc:
    WNY
    My dealer had them in stock, it took only a week to get the appointment, they where very meticulous with there work, took around 7 hours to finish install, which includes working with the building inspector.
