Pictures of my Homemade Log Splitter-Ideas for Hydraulic Tank?

Post in 'The Gear' started by Stihl_WoodBandit, Aug 1, 2010.

  1. Stihl_WoodBandit

    Stihl_WoodBandit Member

    Joined:
    Dec 24, 2008
    Messages:
    46
    Loc:
    West Central Ohio
    Hey everyone.

    These are some photos of the homemade log splitter I built recently. I used it to split 6 cords of oak and hackberry, then sold it to a guy in Florida (of all places) and am now looking to build another. Ideas for this 2nd one include:

    *10HP Diesel (china clone) engine (just because!)
    *16GPM 2 stage pump
    *auto return valve
    *horizontal only
    *8" wedge

    I'd like to have your input on the following:
    *bottom 2" of wedge in front of upper wedge (to start splitting where the rotational forces are not as bad)
    *what to use for the hydraulic oil tank


    In some of the pictures that i'm attempting to upload, you'll see where i had to beef up the wedge end with 1/2" bearing plates because a piece of oak was too much for the 12" tall wedge. This time I'll use a maximum 8" tall wedge.

    Here is the axle, springs and angle iron frame taking shape...
    [​IMG]

    Here's me happy the beam is finally welded down to the frame...
    [​IMG]

    Close up of the push plate. Grade 8 bolts used.
    [​IMG]

    Helpful Sponsor Ads!





  2. Stihl_WoodBandit

    Stihl_WoodBandit Member

    Joined:
    Dec 24, 2008
    Messages:
    46
    Loc:
    West Central Ohio
    My beefed up wedge end...
    [​IMG]

    Hydraulics and Honda GX160 mounted on stall mat and springs for vibration isolation/reduced wear and tear...
    [​IMG]

    View from hitch end...
    [​IMG]

    Finished Log Splitter after 6 cords through her...
    [​IMG]
  3. Stihl_WoodBandit

    Stihl_WoodBandit Member

    Joined:
    Dec 24, 2008
    Messages:
    46
    Loc:
    West Central Ohio

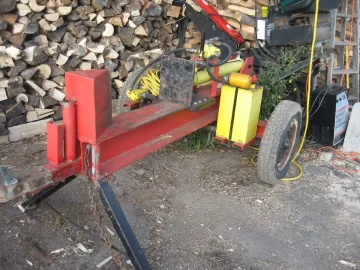

    Not fond of the color scheme but....this is the one off ebay from a couple years ago that i wanted to mimic the hyd tank and axle setup. It appears he welded his spindles between two pieces of angle.

    [​IMG]

    closeup of tank and rear of splitter
    [​IMG]

    [​IMG]
  4. BucksCoBernie

    BucksCoBernie New Member

    Joined:
    Oct 8, 2008
    Messages:
    450
    nice splitter!
  5. leaddog

    leaddog Minister of Fire

    Joined:
    Sep 24, 2007
    Messages:
    912
    Loc:
    Hesperia, Michigan
    Tanks can be made out of alot of things. I'd look around for what you have. 6 or 8in pipe, sq. or retangular tubeing. Some people use pipe or tubeing for the axles and a tank. Old beer kegs work nice also but don't try and tap them for a cool one. When I fab. things I try and reuse to keep the cost down and so that steel stuff dosen't get sent to China to get melted down. Check out the local salvage yards and farm auctions and you just might find a treasure.
    Nice job by the way
    leaddog
  6. smokinj

    smokinj Minister of Fire

    Joined:
    Aug 11, 2008
    Messages:
    15,972
    Loc:
    Anderson, Indiana
    Looks Awesome and my Favorite Green! Ok yours is not green but it should be! lol
  7. JustWood

    JustWood Minister of Fire

    Joined:
    Aug 14, 2007
    Messages:
    3,472
    Loc:
    Arrow Bridge,NY
    air tank off wrecked semi or trailer.
  8. Stihl_WoodBandit

    Stihl_WoodBandit Member

    Joined:
    Dec 24, 2008
    Messages:
    46
    Loc:
    West Central Ohio
    Thanks for the comments guys.

    If I'm not running this thing any more than half day at a time how concerned do I need to be with heat dissipation? I mean a cylindrical tank is more easily adaptable for me, but if something long, tall and skinny is what i need what is a good size??

    I've seen the threads on 'lets see the homemade log splitters', but am having trouble visualizing "how" to build up the space between whatever I use for my axle and the bottom of the beam. Kind of thinking about making a 4' wide by 3' long table to support the engine and hyd. tank, plus a toolbox or milk crate-something to hold my junk.

    Surplus Center sells a 10"x10"x24" tank for $150, if I'd make this out of 1/8" plate would that be sufficient?

    Thanks again.
  9. gandrimp

    gandrimp Member

    Joined:
    Feb 12, 2010
    Messages:
    88
    Loc:
    South central MO
    I used a fuel tank off an H farmall. Its thick enough you can weld to it and it'll hold 20 gal completly full so 15 gallon of hyd fluid which is plenty.
  10. JustWood

    JustWood Minister of Fire

    Joined:
    Aug 14, 2007
    Messages:
    3,472
    Loc:
    Arrow Bridge,NY
    eyed bet u get an air tank from a big truck junk yard for less than $30. i just took 3 good ones to the scrap yard thursday cuz no one wanted them.
  11. Stihl_WoodBandit

    Stihl_WoodBandit Member

    Joined:
    Dec 24, 2008
    Messages:
    46
    Loc:
    West Central Ohio
    Ironically I bought one at the scrap yard for $20 a few weeks ago. Not sure of the gallons, but it is about 16-18" in diameter and 20" long. Downside is that there are a boat load of fittngs I'll need to plug off ( I know-better than not enough) and it is HEAVY. I'll start thinking about using that old thing.
  12. SolarAndWood

    SolarAndWood Minister of Fire

    Joined:
    Feb 3, 2008
    Messages:
    6,770
    Loc:
    Syracuse NY
    I run a 16gpm pump with this tank that is 9.5x7.5x16. FWIW, its fine when its below 40 or so but overheats when it is warm out within an hour and the pump starts to complain. I haven't bothered with it because I complain splitting when its hot out as well.
