    So, I'm putting a stove in my shop and plan to vent straight up and out of the roof.

    The issue is, this is not your typical roof. It's flat, plywood with of course flat roofing on top.

    I have explored ceiling supports. Most of these are square with insulation shield. There is no insulation. The plywood roof is about 1/4 inch thick.

    How would one do this?

    Open to pretty much anything..

    This is very new land for me, as the only thing I have inside is masonry chimney with liners..

    Dustin

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    Another note, the ceiling supports I have seen will stick out above the roof line a ways if I went that route..

    Collapse Signature Expand Signature
  3. Heatsource

    Heatsource
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 19, 2011
    Messages:
    986
    Likes Received:
    152
    Loc:
    Northern CA
    1/4" ply wood is not sturdy enough to support a chimney. what is the roof support framing like?
    - you could use a roof support package instead of a ceiling support box.

    Collapse Signature Expand Signature
  4. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,657
    Likes Received:
    7,676
    Loc:
    South Puget Sound, WA
    Could a short, cathedral support be box-framed in?

    Collapse Signature Expand Signature
  5. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    Framed really good actually. I think the roof sheathing may be thicker then 1/4.

    Collapse Signature Expand Signature
  6. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    I imagine it could. Again this is new land for me. What's a cathedral support box... And what's a roof support package :)

    Thanks fellas

    Collapse Signature Expand Signature
  7. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,657
    Likes Received:
    7,676
    Loc:
    South Puget Sound, WA
    cathedral ceiling support box: http://www.dynamitebuys.com/store/cart.php?m=product_detail&p=775
    roof support: http://www.dynamitebuys.com/store/cart.php?m=product_detail&p=772

    I'd recommend you also download the installation instructions for high temp pipe like this one:
    http://www.dynamitebuys.com/store/cart.php?m=product_detail&p=772

    PS: Are you sure the decking on the roof is just 1/4" plywood? That seems really thin.
    PPS: What stove will you be connecting and how tall do you anticipate it being from stove collar to the flue cap?

    Collapse Signature Expand Signature
  8. Heatsource

    Heatsource
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 19, 2011
    Messages:
    986
    Likes Received:
    152
    Loc:
    Northern CA
    roof support clamps on the pipe and is anchored to the roof sheeting- supporting chimney from the roof.
    ceiling support is framed in on 4 sides inside the home- if you need to you can trim off some of the top metal
    you will also need ceiling trim and a pipe end plate if you go with roof support

    Collapse Signature Expand Signature
    nate379 likes this.
  9. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    BG, she's an old earth stove with an 8 inch flu. From stove top to cap will be a total of about 18 feet of chimney.

    I had thoughts of running 8 inch single wall inside ( maintaining the minimum clearance to combustible) of course, and then terminating to a 6 inch flue. But, I'm seeing too much of a cost savings with that thought process..

    Collapse Signature Expand Signature
  10. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon

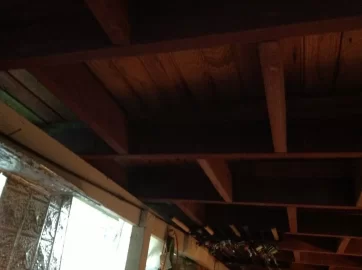

    This is where I would like to punch the chimney through...


    Attached Files:

    Collapse Signature Expand Signature
  11. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    I'm thinking a cathedral support box might work best?

    Collapse Signature Expand Signature
  12. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,657
    Likes Received:
    7,676
    Loc:
    South Puget Sound, WA
    Is the ceiling the roof decking underlayment?

    Collapse Signature Expand Signature
  13. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    It looks like tongue and groove.....

    Collapse Signature Expand Signature
  14. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,657
    Likes Received:
    7,676
    Loc:
    South Puget Sound, WA
    Yes, is this the underside of the roof?

    Collapse Signature Expand Signature
  15. Dustin

    Dustin
    Expand Collapse
    Feeling the Heat

    Joined:
    Sep 3, 2008
    Messages:
    418
    Likes Received:
    89
    Loc:
    Western Oregon
    Sure is. It's exposed as such in the entire shop.( I didn't build it ) :) the picture is from standing on the floor, there is no attic..

    Collapse Signature Expand Signature
  16. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    60,657
    Likes Received:
    7,676
    Loc:
    South Puget Sound, WA
    Ah good. I didn't think a roof would be supported with 1/4" ply (though it wouldn't surprise me if you found it to be 1/2" ply).

    Collapse Signature Expand Signature
