So it begins

Post in 'The Inglenook' started by DonCT, Mar 28, 2006.

Thread Status:
Not open for further replies.
  1. wg_bent

    wg_bent Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    2,248
    Loc:
    Poughkeepsie, NY
    I feel your pain. I had a few of these moments during my install too. In retrospect, I think I should have pulled out the 0 Clearance fireplace and done an install more like yours....maybe in my next house.

    Helpful Sponsor Ads!





  2. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Does anyone know if the stove pipe can be angled off the stove? Or does it need to run straight for a specific length before any bends? Now, I'm not talking about a 90, just something slight to get it more behind the wall.

    I may still rip down the wall, but if I can bend the pipe back, then I won't HAVE to. I think I'm gonna call the stove place tomorrow and see what they say.
  3. elkimmeg

    elkimmeg Guest

    Don there are a few issues here single wall pipe or elbow requires 18" clearance to combustiables in all directions If you use a swivel single wall elbow you may have to deal with combustiable issues with the rear walls. Many elbows are adjustiable angled for 90 degrees to straight.
    The stove position may be 11 " from combustiables but one has to factor the clearances of the vent pipe most double wall connector pipe is 6 or 9" clearance to combustiables but if you use a single wall elbow that is 18" regardless of the stove position.
    Don I'm thinking I might be able to sneek away one day this comming weekend and look your situation over. Pm me your location I have a mother in law in Simsbury. I think we can map out the easiest way to complete your setup even lend a hand. I will pack up some anticipated tools. Knowning me, You will have a safe code compliant setup

    What is Fire code sheet rock? It is a product designed to protect combustiable framing a certain time limit. 5/8" will provide one hour protection doubling it up 2 hours. However the paper face is considered combustiable. the product therefore is a barrier but not non combustiable. Non rated 1/2" drywall is just that not rated for protection there is a different composition of the drywall core for fire core to conventional sheet rock. Dura rock Wonder board ie cement board is considered non combustiable. I applaud your effort but lets come up with the proper solution that affords you a safe install not guessing
  4. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    I figured as much. What about a T off the back of the stove? Do they make double wall T's? I just need to move the pipe back a couple inches, or move the wall a couple inches. As of right now, the pipe would be only 1 1/8" from the wall. I don't think a ceiling box will fit that ;)

    The Heritage can be setup for rear vent.
  5. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Found a picture of what I was thinking about. Notice how the pipe takes a slight bend to the rear. If I can do that, I should be able to get the clearance on the wall. DuraTech makes 15 and 30 degree double walled sections. It's just a question of length.

    Thoughts?

    Attached Files:

  6. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    I called the stove store and they said they make a black double wall T. If I use that with the rear vent for the stove, That will set the stovepipe back enough to clear the alcove front wall.
  7. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Well now that I have more motivation (stove being installed on the 15th!!!!!), I'm really starting to make headway on the alcove :)

    Here, the 2 sheets of 1/2" Durock are installed with a layer of thinset between to help bond them together.

    Attached Files:

  8. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut

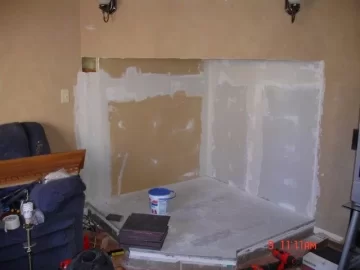

    All taped up and now where to go :)

    Just have to fill in the little gap on the corner. That was my access point to behing the wall to run the wiring for the new sconces and wall plate. And for some bizzare reason, I find taping quite enjoyable!!!

    Now that I've got the walls going pretty well, I'm going to start on the tile perhaps tonight, or tomorrow. That should allow me to have it all ready for the installers this saturday.

    Attached Files:

  9. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut

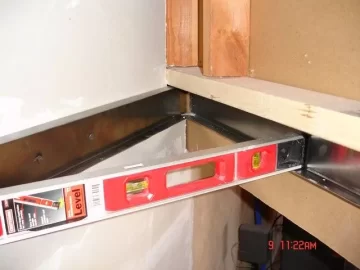

    Here's the metal channel I've installed to frame the ceiling of the alcove. Once the stove is installed, I'll frame in around the ceiling box and sheetrock it.

    Attached Files:

  10. MountainStoveGuy

    MountainStoveGuy New Member

    Joined:
    Jan 23, 2006
    Messages:
    3,629
    Loc:
    Northern Colorado Mountains
    one cool thing about that install is that you get to use the cook plate on the top of the stove. Gives you more area, and a little more restriction, which can make the stove a little more efficient but could also effect draft as well. If you have plenty of chimney it shouldnt be a issue.
  11. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Well, the total chimney run is about 25', with only the slight bend to mate the chimney to the stove pipe. Hopefully that should be good :)

    Arrrrrrghhhhh, figuring out the best way to tile (design wise) is a pain in the arse!!!! I think I'm gonna do some more taping to chill out ;)
  12. elkimmeg

    elkimmeg Guest

    Looks good so far
  13. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,057
    Loc:
    South Puget Sound, WA
    Don, I find the best way to design tile layouts is on the computer. It allows one to work with dimensionally correct patterns and to rearrange things to one's heart's content. I haven't tried this program, but it's tiling specific and free. http://www.irisceramica.com/merchandising/cad_design_free.php?lang=en

    This does assume that one is comfortable with computer graphics softwre. If not, do it on some 1/4" graph paper. That way you can experiment with layouts that are to scale. If you want, post some ideas and maybe we can help.

    - Will
  14. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Thanks for the link!!! I laid out my design using CADKEY though, and I think it worked out ok. Here's the tile going on:

    Attached Files:

  15. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Gout time!!!!!!! :)

    Attached Files:

  16. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Finish product. I have to say, I'm pretty proud of myself. This is my first time designing and building a hearth, taping drywall, and laying tile. :)

    The stove will be installed tomorrow, so more pictures to come!!!!!!

    Attached Files:

  17. elkimmeg

    elkimmeg Guest

    I think you deserve a Sam Adams kick off your shoes and enjoy it. You see what effort and determination can do
    great job
  18. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Thanks!!!!! I will definitely have to go to the package store and pick up atleast a sixer ;)

    It's going to be sooo easy to finish out the alcove once the stove is in. I just need to patch the final piece of the wall, hang the ceiling, and paint.
  19. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    46,057
    Loc:
    South Puget Sound, WA
    Super job Don, it looks great! It's nice that you are documenting all of this. I expect to be doing a similar project later in the summer, so I'm getting good ideas and lessons from your experiences.
  20. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Yipeee!!!! The day of the install. I'm like a kid on Christmas morning :)

    As for the pictures, I know that pictures have helped me design and build my set up. It's soooo much easier to visualize (obviously). If I can help people along the way, it's even better. Since I don't have that much experience in the wood heating sector, this is my way of contributing to helping others ;)
  21. wg_bent

    wg_bent Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    2,248
    Loc:
    Poughkeepsie, NY
    What sucks is that you won't be able to use it for a good 8 months now. Congrads though.
  22. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    I won't see the full benefit till atleast October. But you better believe I'm going to fire it up after it's inspected ;) I don't care if it's 80 out, it's still firing up!!
  23. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    Install pics

    Attached Files:

  24. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    More....

    Attached Files:

  25. DonCT

    DonCT Minister of Fire

    Joined:
    Dec 9, 2005
    Messages:
    609
    Loc:
    Bristol, Connecticut
    More......

    Attached Files:
