Splitter valve return

Post in 'The Gear' started by gzecc, Feb 5, 2013.

  1. gzecc

    gzecc
    Expand Collapse
    Minister of Fire

    Joined:
    Sep 24, 2008
    Messages:
    4,394
    Likes Received:
    855
    Loc:
    NNJ

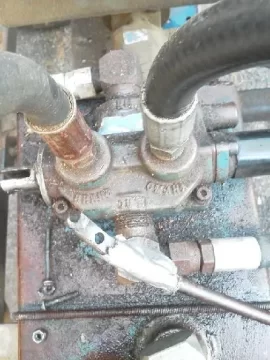

    Now that my splitter is running nicely, I wonder if it has a return function that maybe just needs adjusting or a new spring. It has never retracted on its own since I've owned it. I bought it used in non working condidtion. Its a Brand valve. There is a allen key behind the lower part of the lever on the body of the valve. Anyone have experience with these models?
