Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Marty, Sep 10, 2006.

Thread Status:
Not open for further replies.
  1. Marty

    Marty Feeling the Heat

    Joined:
    Jul 11, 2006
    Messages:
    284
    Loc:
    Pittsburgh
    Install progress on the Mansfield(2,450.00 including tax and delivery), Olympic 20' 316 Ti liner kit (475.00 including tax) and 25' ceramic wrap with mesh surround kit (275.00 including tax) = total cost so far 3,200.00


    Last weekend I used a bag of morter (type S) to reenforce the interior of the chimney above the firebox and fill the gaps and cracks that had developed over the years.

    Yesterday I cut out the damper cross piece and put 4 notches in the brick to get the stove in deep enough for a better shot up for the liner out of the flue collar (now about 2 1/2" back from the upper inner steal 'L' cross support).

    Today I made the block off plate, according to the instructions on this site, out of what appears to be 24 gage )might measure out as 25) galvinised sheet metal that I had sitting in the garage for years. And I cut out two 17x20" sheets of same to mount on the side walls of the firebox to reflect out some of the heat.

    Unfortunately I am looking at about 20" recessed into the box and 4" out in front on the hearth. This is the only way to get a good clean shot up through the chimney. (Mansfield is top exit only)

    The current plan is to use lots of mineral wool to center the ceramic blanket insulated liner in the 16" clay flue and get the added insulation it provides.

    Now I'm off to get a heavier gage steel for the top plate and mix up some more morter for the final touch up work inside the box...

    The plan is she goes in next weekend.

    Speak now or forever hold your peace.

    Helpful Sponsor Ads!





  2. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    29,153
    Loc:
    Northern Virginia
    T-Minus seven days and counting. Peace hold activated.

    Lookin good guy.
  3. elkimmeg

    elkimmeg Guest

    Projects do have a way of expaning sounds like you recieved a lot of good advice here. When Hot flame and I installed his stove we attached mineral wool Micore to the back of the blockoff plate prior to installation. Again for two reasons to reflect heat back and prevent cold decending
  4. Marty

    Marty Feeling the Heat

    Joined:
    Jul 11, 2006
    Messages:
    284
    Loc:
    Pittsburgh
    After a little reading today, I am a little concerned about possible downdraft through the water heater only chimney cap that will sit about 12" (closest edge) from the stove chimney cap.

    The bottom edge of water heater cap lid is aprox 3" below the top or the flexliner inside the cap.

    I wish they had a little more verticle seperation.
  5. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    29,153
    Loc:
    Northern Virginia
    Boy has Craig got a deal for you.
  6. webbie

    webbie Seasoned Moderator Staff Member

    Joined:
    Nov 17, 2005
    Messages:
    12,101
    Loc:
    Western Mass.

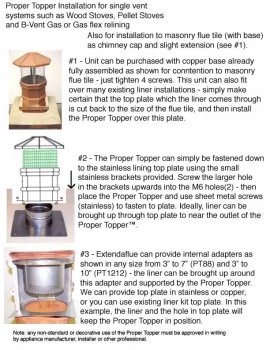

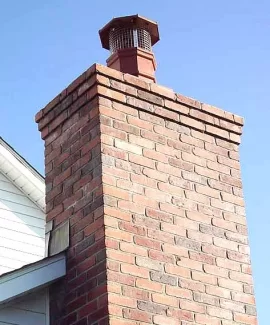

    Yeah, heck....why use that ugly cap when you can use a Proper Topper or Cast Classic to add to the chimney height and make it look really good.

    Attached Files:

  7. Marty

    Marty Feeling the Heat

    Joined:
    Jul 11, 2006
    Messages:
    284
    Loc:
    Pittsburgh
    I read through the link to your boosta and extenda offerings on that other thread craig in the section where it calls for a 4-12" verticle seperation and you recomend at least 7". so I climbed up on the roof again this AM with a cup of joe and a tape measure.

    The top of the pipe on the water heater sits at 2".
    The top plate termination collar sits at 4" and the instructions say to cut the lliner 4" above that. (8")

    So now I'm looking at a 6" difference and thinking about cheating it up another inch to get to 7.

    I would like nothing more than to get one of those extendaflues and bring it up another 2-3' and use the whole 20' flex but, to be perfectly frank, the budget is pretty much in the sh!ter at this point and I am trying to get a new clutch in the toyota PU and still have less than a cord of seasoned wood to face the winter with... but that's a topic for another thread...

    I guess I'll take a shot with my 6-7" seperation and keep my fingers crossed.
  8. elkimmeg

    elkimmeg Guest

    In code somewhere I remembering the separation distance of 9" but in your case every additional inch will help
  9. Rhone

    Rhone Minister of Fire

    Joined:
    Nov 21, 2005
    Messages:
    824
    Marty, make sure you read the installation instructions for your liner. My liner instructions, in the boldest and largest text states
    So, just a caution about adding the mineral wool insulation. My feeling is, the extra insulation may let your liner heat hot enough to set creosote off and increase your chances of a chimney fire or, if you do have a chimney fire the extra insulation won't let the heat disappate fast enough and you'll pass the safety design of your liner.
  10. Marty

    Marty Feeling the Heat

    Joined:
    Jul 11, 2006
    Messages:
    284
    Loc:
    Pittsburgh
    Project expands again.

    called my dealerto see if he had a pipe extension that could buy me 4-6" at the top...

    He said the propper way to do it would be to add a 4-6" piece of 16"x16" (matching whats below it) clay tile to the top of the stack and silicone it in place (cost $20). Then silicone the top plate to that and have the 10-12" seperation between pipes.

    My clay tile currently ends at brick level on top of the chimney.

    This sounds ok to me as I would be able to use almost 19' of my 20' liner, be in code, and only spend another $20...

    let the flaming begin.


    Rhonemas, I can't find any reference in the liner install manual to over insulating. Besides that I plan on stuffing it ,not the whole way through, but in about 3 sections... near the top, about the middle, and at the bottom. I think it will be stiff enough to cut an oversized hole in the middle, get it up into position and then pack in some loose stuff.
  11. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    29,153
    Loc:
    Northern Virginia
    Sounds like a plan to me.
