Those in the know??? Question about stove mods?

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by BobUrban, Dec 29, 2011.

Thread Status:
Not open for further replies.
  1. BobUrban

    BobUrban
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2010
    Messages:
    1,903
    Likes Received:
    1,112
    Loc:
    Central Michigan
    Just curious as I have not read or seen anything like this on here but why are there no stoves with radiator fins? It seems that if you had fins on the sides/top of a stove you would be able to gain more heat radiation from the same fuel and therefore be more eficient. Am I missing something or is it just asthestics and maintenance that is the issue?

    As an experienced welder and fabricator it would be pretty easy to fab up something that looks nice(at least to me) and attach it to the stove rather simply. I even thought about the weight issue but that could be rectified with a bolt or slide on part. Some fasionable fin system that just slides onto a light set of angles tacket to the side of the stove with very limited mod to the stove itself. Not anything that would damage or penetrate the stove itself.

    Also, what about something like a 1 or 2" tall grate that is placed on top of the stove. Could still have a cut out for the thermometer to set directly onto the stove but the grate would radiate heat from the top of the stove more eficiently.

    Again, I may be thinking to far outside the box here so correct me please. I have no plan to modify my stove or go total Frankenstove, just trying to gather why this is not something that is offered. Other than cost I cannot see any downside and I have access to steel and welders so cost would be relatively free.

    Help me out with my thinking here - I am just enjoying the heat from my stove, reading Hearth.com and thinking to much.

    Bob Urban

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. rdust

    rdust
    Expand Collapse
    Minister of Fire

    Joined:
    Feb 9, 2009
    Messages:
    4,200
    Likes Received:
    891
    Loc:
    Michigan
    I'm not 100% sure but I think I remember the new Woodstock stove with the bad name having fins on the back of it? I thought I read that posted somewhere, maybe one of the new owners can comment.

    My stove has what they call a convection deck on top of it, it takes up a little less than half the stove top.

    Collapse Signature Expand Signature
  3. LLigetfa

    LLigetfa
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 9, 2008
    Messages:
    7,361
    Likes Received:
    110
    Loc:
    NW Ontario
    The answer is that most stoves already extract as much heat as necessary without the need for fins. For those that think there is surplus heat, there is the Magic Heat. What heat remains is needed to service the flue draft. The choice of singlewall versus doublewall smokepipe is often based on reclaiming versus preserving heat that is going up the flue.

    Collapse Signature Expand Signature
  4. Peter B.

    Peter B.
    Expand Collapse
    Feeling the Heat

    Joined:
    Feb 27, 2008
    Messages:
    453
    Likes Received:
    0
    Loc:
    SW Wisconsin
    I'm 'with you' in your thinking, though I had a different (or supplemental) approach in mind.

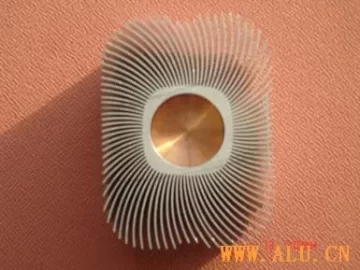

    Cast aluminum vertically finned 'sleeves' to fit over single wall stove pipe... something (sort of) like the image below...

    Tried to find something 'approximate' on the web a while ago, and even asked one or two mfr's if they could/would make up something of the like. I didn't get far.

    Likely, someone here will post to the effect that you'd be robbing the pipe of needed heat... and blah, blah, blah. I'd still like to (be able to) give it a try.

    PB

    -----


    Attached Files:

    Collapse Signature Expand Signature
  5. LLigetfa

    LLigetfa
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 9, 2008
    Messages:
    7,361
    Likes Received:
    110
    Loc:
    NW Ontario
    It is a complex topic WRT how much heat to pull out of the stove and how. There is a lot of ancdotal evidence that the use of blowers to aid in heat removal may take a stove out of the sweet spot causing it to burn dirty.

    In the same vein as a finned stove is the Bullerjan "free flow" stove with convection tubes.

    [​IMG]

    Collapse Signature Expand Signature
  6. LLigetfa

    LLigetfa
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 9, 2008
    Messages:
    7,361
    Likes Received:
    110
    Loc:
    NW Ontario
    If you want to see a finned design, look at this from Harrie Leenders.

    [​IMG]

    Collapse Signature Expand Signature
  7. BobUrban

    BobUrban
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2010
    Messages:
    1,903
    Likes Received:
    1,112
    Loc:
    Central Michigan
    Thanks for the input folks - again, just thinking outside the box so to speak. I never considered the "robbing" heat from the draft thing, which is an obvious concern.

    My plan would be to make something that hung from pins or simple hinges and could be removed easily. It would lay flat against the side of the stove and offer more surface area to dispense heat. I would imagine when in peak season with the stove firing full bore this would be ok but shoulder season it would need to be romoved.

    No plans just yet - input here is what I am after and any more examples that others have tried.

    Bob Urban

    Collapse Signature Expand Signature
    ScotO likes this.
  8. Scott2373

    Scott2373
    Expand Collapse
    Member

    Joined:
    Nov 9, 2011
    Messages:
    145
    Likes Received:
    21
    Loc:
    Williamson, New York
    On my Jotul Rangeley there are side heat shields that are open at the top and bottom to create a convection effect...and they ARE effective. A lot of heat is transferred out from between the side of the steel firebox and the cast iron shields. They aren't "heat sinks" per se, but do retain heat and disperse it out into the living space similar to what a heat sink would do.

    Collapse Signature Expand Signature
  9. precaud

    precaud
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 20, 2006
    Messages:
    2,305
    Likes Received:
    39
    Loc:
    Sunny New Mexico
    If you've ever used a stove with a cookplate that had ribs on the bottom (inside) surface, and measured the temp difference of the cookplate to the cast iron it sits in, you might want to see those fins on the inside, not the outside, and especially on the top plate. That is where the increased surface area will do the most good.

    Collapse Signature Expand Signature
  10. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    59,280
    Likes Received:
    7,353
    Loc:
    South Puget Sound, WA
    I seem to recall the Hearthstone Bennington having a heat exchanger built in.

    Collapse Signature Expand Signature
  11. precaud

    precaud
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 20, 2006
    Messages:
    2,305
    Likes Received:
    39
    Loc:
    Sunny New Mexico
    Jotul designed the F100 top plate with this in mind. But it only really helps when the top exhaust outlet is used; the rear one draws the exhaust gasses down away from it.

    Collapse Signature Expand Signature
  12. woodmiser

    woodmiser
    Expand Collapse
    New Member

    Joined:
    Oct 20, 2011
    Messages:
    390
    Likes Received:
    3
    Loc:
    Garnet Valley, PA
    Keep in mind stoves a certified as designed. Pulling off more heat might take it out of it's efficiency zone too easily.

    Collapse Signature Expand Signature
  13. precaud

    precaud
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 20, 2006
    Messages:
    2,305
    Likes Received:
    39
    Loc:
    Sunny New Mexico
    What's an "efficiency zone" ?

    Collapse Signature Expand Signature
  14. woodgeek

    woodgeek
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 27, 2008
    Messages:
    3,400
    Likes Received:
    572
    Loc:
    SE PA
    a picky internet nerd comment: Fins like the above improve convective heat loss, not radiative heat loss.

    Collapse Signature Expand Signature
  15. woodmiser

    woodmiser
    Expand Collapse
    New Member

    Joined:
    Oct 20, 2011
    Messages:
    390
    Likes Received:
    3
    Loc:
    Garnet Valley, PA
    That would be where the stove is burning the least amount of wood, putting out the least amount of smoke and generating usable heat.

    Collapse Signature Expand Signature
  16. LLigetfa

    LLigetfa
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 9, 2008
    Messages:
    7,361
    Likes Received:
    110
    Loc:
    NW Ontario
    Some stoves have a double-wall construction and air is drawn through the cavity to superheat it for secondary combustion. Modifying such a stove could reduce the heat needed for good secondary combustion.

    Collapse Signature Expand Signature
  17. DevilsBrew

    DevilsBrew
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 21, 2013
    Messages:
    687
    Likes Received:
    232
    Bob, I am interested to know if you modified the stove. Thanks.

    Collapse Signature Expand Signature
  18. tekguy

    tekguy
    Expand Collapse
    Feeling the Heat

    Joined:
    Nov 12, 2009
    Messages:
    368
    Likes Received:
    126
    Loc:
    west mass
    i would think in the case of a house fire or other damage modifying the stove or pipe would give you trouble with your insurance policy

    Collapse Signature Expand Signature
  19. BobUrban

    BobUrban
    Expand Collapse
    Minister of Fire

    Joined:
    Jul 24, 2010
    Messages:
    1,903
    Likes Received:
    1,112
    Loc:
    Central Michigan
    Never did any mods other than upgrading to a modern EPA stove and relegated the old VC to the fab shop.

    Collapse Signature Expand Signature
  20. mellow

    mellow
    Expand Collapse
    Resident Stove Connoisseur

    Joined:
    Jan 19, 2008
    Messages:
    4,379
    Likes Received:
    584
    Loc:
    Salisbury, MD
    [​IMG]

    http://www.maderightstoves.com/

    Collapse Signature Expand Signature
  21. begreen

    begreen
    Expand Collapse
    Mooderator
    Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    59,280
    Likes Received:
    7,353
    Loc:
    South Puget Sound, WA
    Any robbing of heat will have a penalty that needs to be compensated for it the goal is a clean burning system. Rob the stack and you will get creosote accumulation if the chimney gas temp is below 250F. Rob the firebox of heat and you risk incomplete combustion. It can be done, but there are trade offs. One is usually faster combustion in order to keep the burn clean. This is the way masonry stoves are run and it does work.

    Collapse Signature Expand Signature
    ScotO likes this.
  22. Highbeam

    Highbeam
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    11,130
    Likes Received:
    1,709
    Loc:
    Cascade Foothills, WA
    While the fin system extracts heat from the stove using conduction, it releases it using both radiation and convection from hot fins exposed to air.

    Collapse Signature Expand Signature
  23. DevilsBrew

    DevilsBrew
    Expand Collapse
    Minister of Fire

    Joined:
    Apr 21, 2013
    Messages:
    687
    Likes Received:
    232
    Since there is no mass, would the fins be a decent trade off? Not the best choice but better than nothing?

    Collapse Signature Expand Signature
  24. Highbeam

    Highbeam
    Expand Collapse
    Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    11,130
    Likes Received:
    1,709
    Loc:
    Cascade Foothills, WA
    Efficiency is defined as the amount of heat delivered to the room per lb of wood. You determine this by measuring the amount of heat wasted up the stack.

    When I burned a non-cat stove I would stare at my flue probe meter and see the 800-1000 degree temps all the time. There is heat being wasted with those flue temps. A magic heat, or other device on the flue, would allow you to reclaim this heat with little or no effect to the fire. Used wisely, you could keep flue temps high enough to prevent cresosote accumulation. This reduction in waste heat is the only way to improve efficiency of the stove.

    If your stove is the proper size then you have nothing to gain from adding fins to the firebox. If you need more btu than your stove can give off at max firebox temp then yes, more HE area will get you more btu. This would not be an efficiency improvement but rather an improvement in heat extraction and you'll need to burn more wood to maintain the same stove temp.

    Collapse Signature Expand Signature
  25. woodgeek

    woodgeek
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 27, 2008
    Messages:
    3,400
    Likes Received:
    572
    Loc:
    SE PA
    Re the 'made right'...yuck. The emissivity of aluminum (or aluminum oxide) is very low....shiny Al is a poor radiator surface. Sounds like a cheaply made low mass steel stove wrapped in cheap extruded Al fins and thin gauge Al sheet. Wonder how it looks after a couple burns...

    I also liked the bit about recommending an open flue cap....the ones with mesh clog up too fast!! :rolleyes:

    Collapse Signature Expand Signature
