American heritage #8202 primary air manifold

[BrianWoods]

Hello. The unit I bought at auction is 001638 ser# 92-3-76ah93. I'm trying to find an obsolete part. Or possibly A drawing of one, maybe I can repair the old one or make it?Any ideas?
Thanks , Brian



[begreen]

Try here

American Heritage (8202)

www.hearthstoneparts.com



[EatenByLimestone]

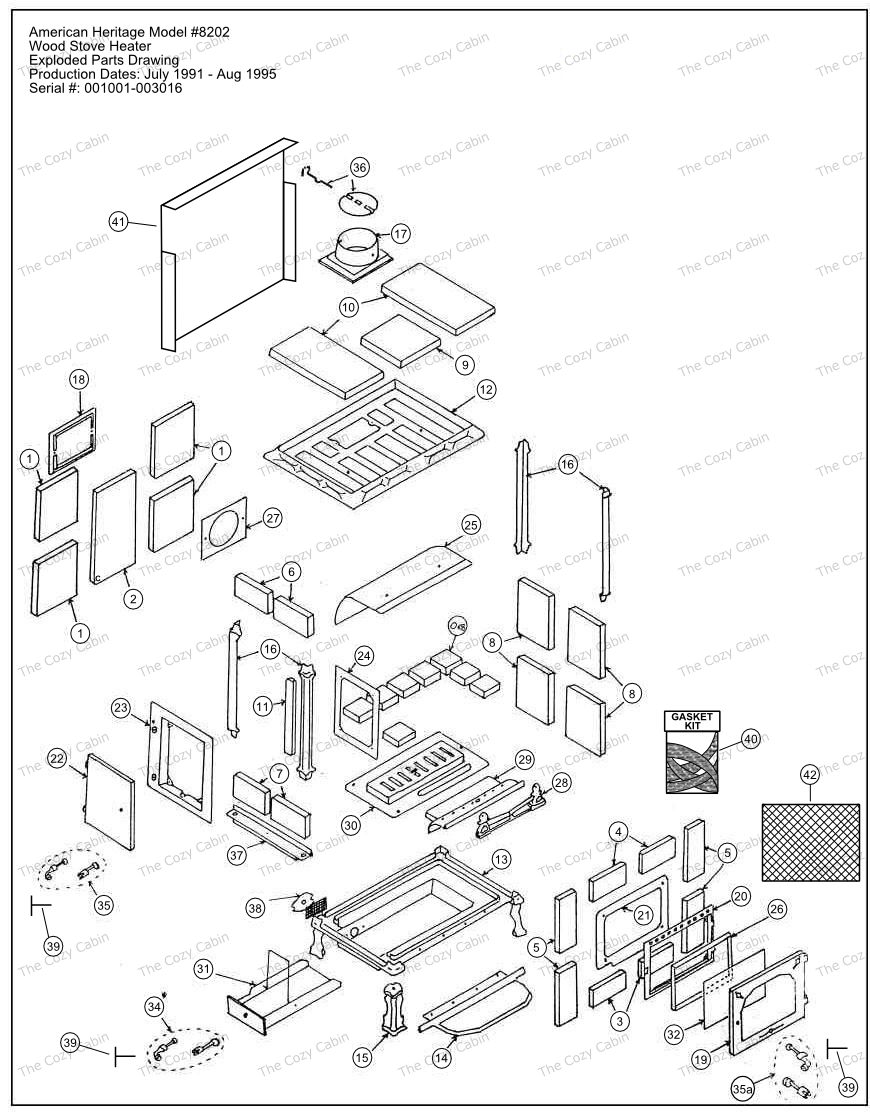

Here’s a parts list and manual for your stove!

American Heritage – 8202

Stove History Production Run Dates Serial Numbers Notes Start 07/91 001001 EPA exempt, no air control End 08/95 003016

hearthstonetech.com



[EatenByLimestone]

Oops, looks like BG beat me, lol



[begreen]

They say they don't have the part anymore, but maybe they can offer a suggestion of where to look. Otherwise, it may need to be fabricated.



[BrianWoods]

Thanks. I've tried several times to speak to someone at Hearthstone without success.
Do you think they have a dimensional drawing? Is there another way I could find a replacement part or more info that will help?



[begreen]

A used part or old stock may be the only option.



[EatenByLimestone]

Do you have a pic of the old part? Maybe it is repairable.



[BrianWoods]

Do you have a pic of the old part? Maybe it is repairable.



[BrianWoods]

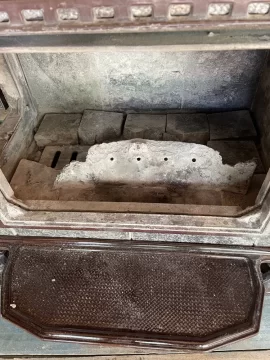

This is the piece. Do you think it would work as is? Is it a necessary part for operation? Does anyone know if there are used ones available?Or could it be repaired?
Thanks for taking interest in my project.
Brian



[EatenByLimestone]

It’s definitely a needed part, but that might still work. It’s been pretty beat up though.



[BrianWoods]

Great. Maybe it will work. If anyone knows where I might find a used one that would be nice to look into.
Thanks
