Fixing a pellet burnpot burned out bottom?

Don2222 Posted By Don2222, Aug 4, 2018 at 7:02 PM

  1. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,360
    571
    Loc:
    Salem NH
    Hello
    This burnpot similar to it not the same as US Stove 5660 steel burnpot and many others, is burned through in the middle of the bottom just below where the hot Igniter air comes in. The Saranac has been out of production for many years and not fully supported anymore. Some parts are still available, but parts like an Auger is no longer available so a small fix like this may help to keep it going longer. :)
    Therefore since I do not like the slats in the bottom, I just got a sheet of 11 Guage perforated Steel with 1/4” holes. Enviro uses 1/4” holes in their high Ash Burnpot.
    Here is the link to the metal
    https://www.metalsdepot.com/shape/Perforated-Sheet

    Burning fuels other than wood pellets, the hole size maybe smaller. You can get it in stainless steel also from metalsdepot.com The Pot is 12 Gauge so 11 is thicker!
    I order a 1 foot by 2 foot sheet so I can fix a lot of pots.
    Anyway, the easiest way to cut it is to just zip it out with a Plasma cutter but those cutters do not like perforated material unless you get a Hypotherm with extended mode.
    So we just put a small piece of aluminum flashing over it to keep a nice arc and cut them both!
    Then just cut out the bottom of the Burn pot and weld the new piece on. Grind and paint for good looks.
    The Plasma cutter when the trigger on the cutter gun is depressed should be 75 PSI to get a good arc and cut.
    Anyone else do this?

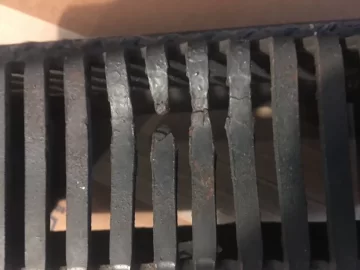

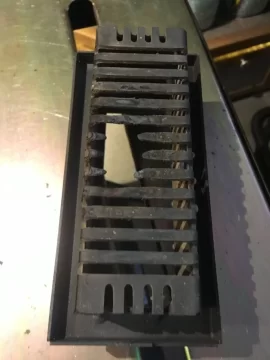

    Pic 1-3 - Burn Pot with burned out slay in the middle

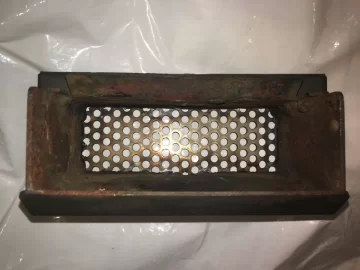

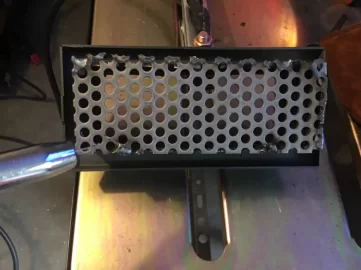

    Pic 4 - trace burn pot bottom on aluminum on top of perforated Steel.

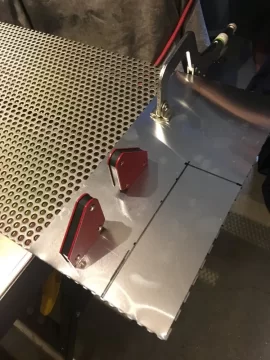

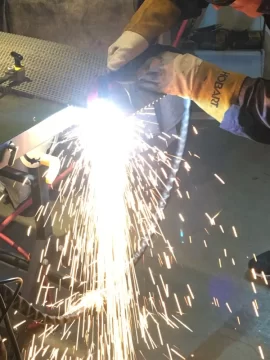

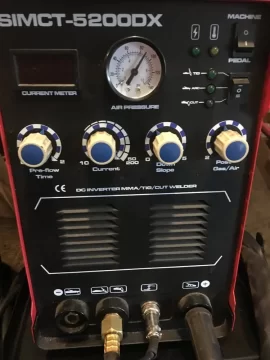

    Pic 5 - Set up Plasma cutter to 40-50 amps

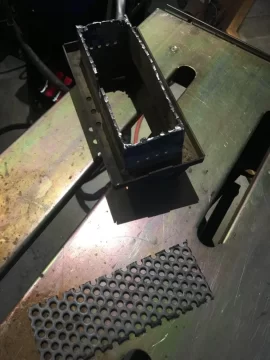

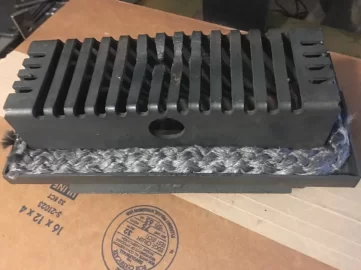

    Pic 6 - cut out perforated Steel

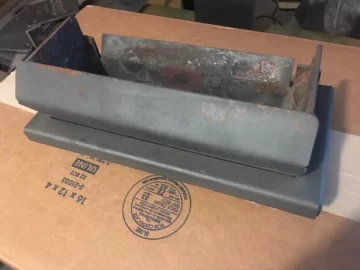

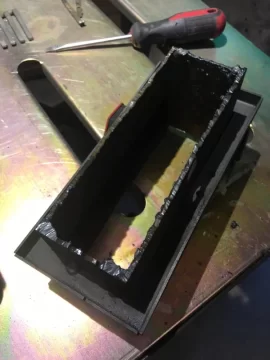

    Pic 7 - burnpot with bottom cut out

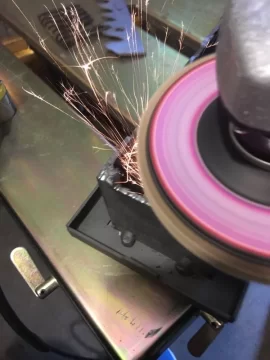

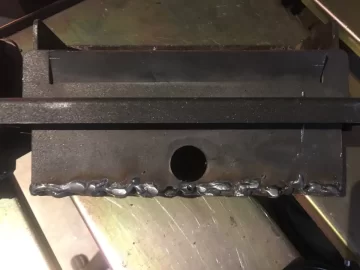

    Pic 8 - grind flatter to accept new bottom

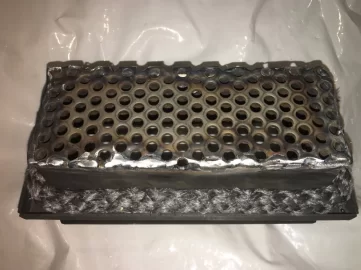

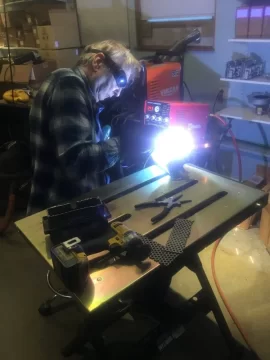

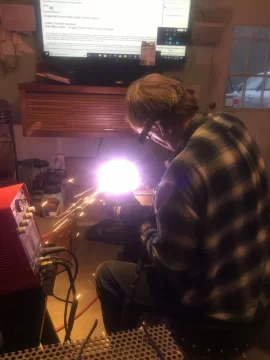

    Pic 9 - put in 4 tack welds then spot welded the rest


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  2. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,360
    571
    Loc:
    Salem NH
    More pics

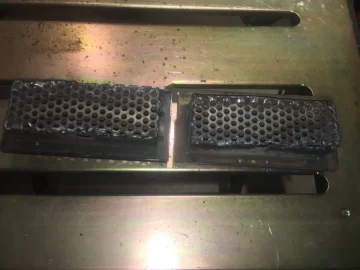

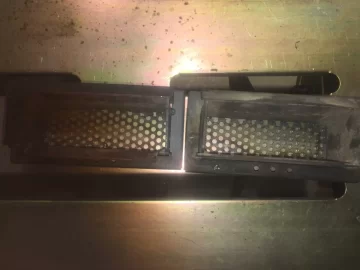

    Pics 10 & 11 - Grind and paint - all done


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,360
    571
    Loc:
    Salem NH
    Just did 2 more burned out burn pots.

    Anyone else do this??



    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    vinny11950 and coutufr like this.
  4. chamas

    chamas
    Member 2.
    NULL


    Dec 13, 2011
    158
    17
    Loc:
    PNW
    No, but it gives me ideas. Seems simple enough. Makes me wonder why the basic Enviro EF-series screens are so expensive.

    Do they perform the same? Just curious to see if the perforated flow rates are similar to the slats.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,360
    571
    Loc:
    Salem NH
    I think the airflow is more evenly distributed and also it is 1 Guage thicker so much stronger :)

    Got the new perforated metal here
    https://www.metalsdepot.com/shape/Perforated-Sheet

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  6. vinny11950

    vinny11950
    Minister of Fire 2.
    NULL


    May 17, 2010
    1,575
    323
    Loc:
    Eastern Long Island, NY
    Nice work, Don.

    Is there anything you can't do?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Don2222 likes this.
