Jamestown J1000 Circuit board question

  • Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.

    We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.

    We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.

chr103yod

New Member
Nov 21, 2022
1
PA

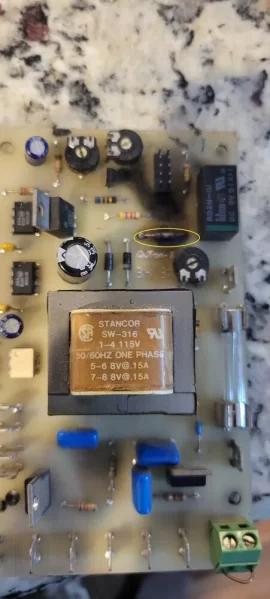

I have a Jamestown J1000 stove and a resistor on the circuit board burned up. There is no way to see the resistor value and I haven't been able to locate a good enough picture to see what size the resistor is. Does anyone have a component level diagram or just a picture of the board? The part number on the board is C880. Here's a picture of the board with the resistor circled. Any help would be appreciated. Thanks.



Mike85

Member
Dec 13, 2012
14
Boston,MA
I’ll upload a pic of my J1000 board, but I think it’s newer than that one. Hope it helps.
