Need help from wood stove folks

Bikerguyforlife Posted By Bikerguyforlife, Jul 13, 2018 at 9:41 PM

  1. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    Hi my name is Den i live in erin tn i just bought a salvaged home and discovered the heat unit is shot..can someone guide me as to who sells the best and cheapest wall thimbles? And guide me into hooking up these hand me down wood stoves? Im new to all this and could sure use help...im trying to get these 2 wood stoves in before winter hits tennessee...thanks guys!>

  2. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn

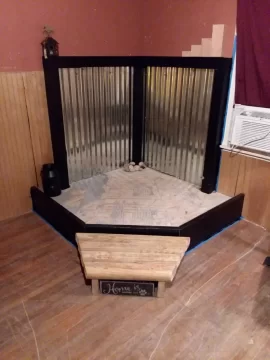

    Here is the hearth i just built from 2x6 and repurposed lumber...


    Attached Files:

  3. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,881
    6,423
    Loc:
    Northern IL
    You might want to slow down a bit. Different stoves have different r ratings for the hearth as well as clearance to combustibles. Consider getting the stove(s) first.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    begreen and Blazingembers7749 like this.
  4. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    Agreed

  5. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    I have the stoves..one is an old atlantic 224 and also a vermont resolute..the resolure however has very small log length 13" i think

  6. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,881
    6,423
    Loc:
    Northern IL
    If u haven't already done so, check out the install manuals for each. Make sure you meet or exceed the requirements.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  7. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    Does anyone know the cheapest place to buy stove pipe online? I also need to wall thimbles...no codes here in tn but would like to do it safe...is it required to have double wall going outside? Its quite expensive any insight would be good

  8. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    Where possible i like using the insulated wall thimbles

  9. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    Assuming your going into a masonry thimble otherwise class a.

  10. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    i just ordered 2 of the Selkirk Corp 206463 6,...could sure use help when i get them...lol cutting into my vinyl siding is scarey

  11. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    Generally anything passing thru a wall or on the exterior needs to be class a pipe

  12. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    I use a 4.5" grinder with a lennox dimond blade very easy to control the cut.

  13. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    Thanks blaze...appreciate your help brother ☺

  14. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    Ok before we get ahead of ourselves let me make sure i have this right... you have no masonry thimble/ chimney you are going into correct? If at all possible i recommend going straight up if not possible or to much of a hassle you can go out the wall then up just make sure you follow both the pipe and stove manufactures instructions. If the stove does not rear vent the manufacture will generally list how many ft of rise the pipe needs before going horizontal. Usually you want class a pipe to extend into the room the appliance is in at least 6 inches but still make sure to check the manufactures instructions. Clearances are of the utmost importance and remember they list minimum clearances its always better to give yourself a little play in this area. A picture of the exterior would help if you need a parts breakdown

  15. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,109
    10,670
    Loc:
    South Puget Sound, WA
    How was the hearth constructed? Is there adequate R value (heat resistance) built in for the proposed stoves? What clearance to combustible is being honored assuming the nearest combustible is the wall behind the metal. The old Atlanta may be an unlisted stove. That means 36" clearance to combustibles all around. Either stove will need to have 16" of hearth in front of the door.

    I suspect the wall heat shield may need modification to qualify for a clearance reduction. It may need to be the full width of the sides of the hearth depending on the stove. It will need to be on 1" standoffs, and open 1" top and bottom to allow air to freely convect behind it.

    From the looks of things the Resolute may be the better fit. It takes up to a 16" split. The manual is here:
    https://www.hearth.com/talk/wiki/vermont-castings-older-stove-models/

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  16. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,109
    10,670
    Loc:
    South Puget Sound, WA
    A good starting point for understanding the stove pipe and chimney installation is the manual provided by the flue manufacturer. This can be downloaded from their website. www.woodstovepro.com has some decent pricing on chimney pipe. If you need help call them up and ask for Sean so that you get the right parts.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  17. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    There are others on here much more knowledgeable than myself on where to get pipe from as i am new to this field

  18. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn

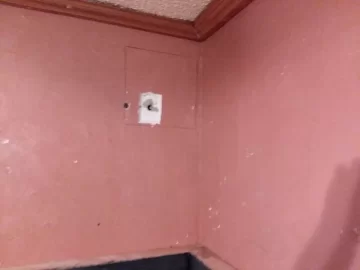

    I will be using river rocks underneath a depth of 2-3 inches i bought at home depot, im mounting it in corner of room i will be using the resolute stove my question is...how far from wall does stove pipe need to be? I attached a pic..im trying to figure where to mount thimble...might need to go on left side of outter stud


    Attached Files:

  19. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    No masonry thimble im using going thru standard wall...vinyl on other side...FORGIVE THE HORRIBLE UGLY PAINT...ITS A RENOVATION IN PROGRESS

  20. Bikerguyforlife

    Bikerguyforlife
    New Member 2.
    NULL


    Jul 13, 2018
    30
    0
    Loc:
    Erin,tn
    I also forgot to mention the wifey wants one of those steel black heat shields with the wildlife scene cut out at the top..so there will be an additional heat shield behind the stove

  21. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,109
    10,670
    Loc:
    South Puget Sound, WA
    That's pretty close to the wall. Single wall stove pipe needs at least 18" clearance from the wall or ceiling. Double-wall stove pipe needs 6" clearance from the wall and ceiling clearance will vary with the brand pipe, but allow 9". This is from the edge of the pipe, not the center.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  22. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    What he said

  23. Blazingembers7749

    Blazingembers7749
    Member 2.
    NULL


    Jun 26, 2018
    120
    17
    Loc:
    Maryland
    Not that you would want to but is there a rule code standard or manufactures instructions saying you cannot connect class a pipe with 2 inch clearances all the way to the stove with an adaptor instead of using connector pipe

  24. coaly

    coaly
    Fisher Moderator 2.
    NULL

    Staff Member

    Dec 22, 2007
    3,208
    481
    Loc:
    NE PA
    No codes??

    The State of Tennessee has adopted the 2006 International Building Code (IBC), the 2009 International Residential Code (IRC), the 2006 International Fire Code (IFC), and the 2006 International Energy Conservation Code.

    Codes for stove installation are adopted from NFPA Standard 211 which has been in effect for the entire US before codes were adopted. So anywhere in the US that NFPA Standard must be followed. That is where the criteria comes from for the entire installation including chimneys, clearance to single wall pipe, stove clearance to wall, reduced clearance for non-listed (untested to UL standards) stoves and appliances, as well as stove construction. Jurisdictions simply adopt the NFPA Standard into their Code, which would be the 2006 Mechanical Code which covers venting and stove installation in your case. (ICC or International Code is also called "The Int. Family of Codes)

    The Atlantic 224 is not a UL approved appliance, so that's a no go right there.
    Does your Resolute have a UL tag on the back? If not, it is not UL Listed. (All appliances must be UL listed (tested) to comply with the ICC code you are under).

    Cheapest chimney parts I've found is Dura-Vent at Home Depot. If you're using a "through the wall" configuration you start with the "through the wall kit" and add chimney sections as required for proper height. That is much more expensive than a "through the roof" configuration that also works better where possible.

    You must use black pipe for wood stove connection to chimney, not cheaper thin walled galvanized pipe for heating system duct work. Code requires the thicker pipe and the zinc galvanization burns off causing toxic fumes.

    Your heat shield doesn't have air space for air intake under it, and it must have a 1 inch air space from shield to wall behind it for reduction down from 36 inches. I assume the black posts that support shield are metal or not combustible material??

    Start here;
    https://www.hearth.com/talk/threads/the-basics-on-how-to-install-a-wood-burning-stove.147798/

    How to make a UL approved heat shield; (All heat shields in US must conform to the NFPA Standard of constructing them)
    https://www.hearth.com/talk/threads/wood-stove-wall-clearances-primer.147785/

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    bholler likes this.
  25. bholler

    bholler
    Minister of Fire 2.
    NULL


    Jan 14, 2014
    12,965
    2,577
    Loc:
    central pa
    Yes you have codes without question. And yes you need chimney pipe through the wall or ceiling and outside.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
