Passing a class A chimney through roof eave

[Rob_Red]

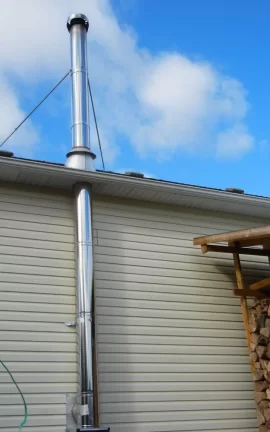

How is this done while maintaining 2 inch clearance to combustibles when going through the soffit? Most of the pictures I see look like the example below where the soffit comes right to the pipe. Should their be a metal trim ring? By the way this is not my house but I have a similar setup going in.



[gthomas785]

Maybe those soffit vents are metal? If they are wood or plastic then that picture is not to code.



[Rob_Red]

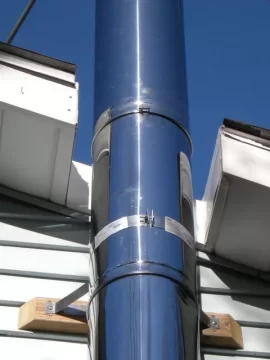

I already have this notch from the old chimney and am thinking about going this rout. Are there any cons to this?



[bholler]

How is this done while maintaining 2 inch clearance to combustibles when going through the soffit? Most of the pictures I see look like the example below where the soffit comes right to the pipe. Should their be a metal trim ring? By the way this is not my house but I have a similar setup going in.

View attachment 278531

Either extended offset brackets to go past the soffit or through maintaining clearances. Like gthomas said above that soffit may be aluminum if so it's fine if not it needs cut back and trim installed.



[bholler]

I already have this notch from the old chimney and am thinking about going this rout. Are there any cons to this?

Just that it looks kind of crappy. Otherwise no problems if done properly



[andym]

I already have this notch from the old chimney and am thinking about going this rout. Are there any cons to this?

As mentioned it looks like a hole in the roof. However it eliminates any potential for leaking around the chimney flashing.



[gthomas785]

So what happens to the water coming off the roof. Just runs down the wall?



[Rob_Red]

So what happens to the water coming off the roof. Just runs down the wall?

I already have a diverter that diverts water off of the notch and into the gutter
