Pe super27 side rail insulation

[Mark1000]

Does anyone know how the side rail insulation is supposed to run should the cut line face the wall of the stove or towards the inside of the fire box . Also is the top half suppose to bend down and tuck between the baffle and outer wall of the chamber or just rest ontop of the baffle box or should they run right up to the top of the stove to the top of the brick rail.

I've found this forum helpful in the past I'm sure someone knows the answer I couldn't find anything in the manual .



[begreen]

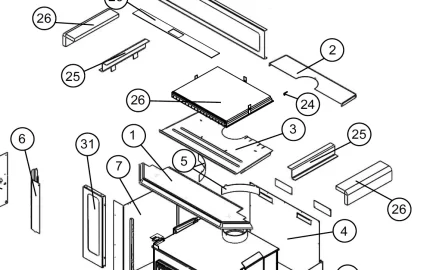

Each one sits in the side rails with a downward leg vertical in the rail and then bent over at a 90º inward horizontally towards the baffle.



[Mark1000]

Thanks Begreen that picture is a good one



[Tech Guru]

The cut line faces outwards, in order to have the insulation bend over the edge of the baffle more easily.
