Pellet Master PM-3000 Titan snap disc style - surface or stream mount? See Wire Diagram

Don2222 Posted By Don2222, Apr 13, 2018 at 8:02 PM

  1. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,179
    527
    Loc:
    Salem NH
    Hello

    Does anyone know the mounting of the Pellet Master Stove snap discs?

    I have seen the Auger Over Heat F120 Deg F snap disc which is a surface mount. No mounting hole.

    How about the F110 Deg F Exhaust Temp Sensor or the Convection Fan F100 Deg F sensor or the F170 Deg F Stove Over Heat sensor? How do they mount?

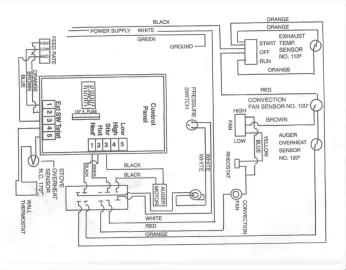

    Pic 1 - Wire Diagram

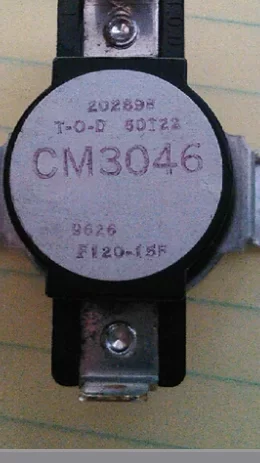

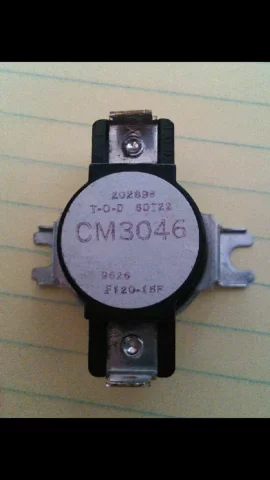

    Pic 2-3 — Auger Over Heat Sensor

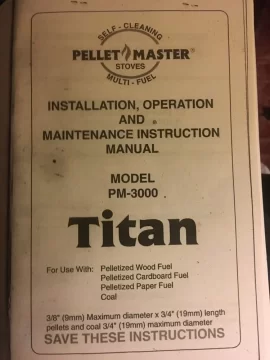

    Pic 4 - Manual cover


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  2. Watcher1

    Watcher1
    Member 2.
    NULL


    Sep 11, 2014
    116
    20
    Loc:
    Ironton WI
    The half round tabs are where the screws go to hold it.

  3. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,179
    527
    Loc:
    Salem NH
    Yes and they are even with the bottom of the snap disc meaning it is a flush mount.
    My question is, Do the other snap discs in the stove mount this way or do they go into a hole in an air stream mount configuration?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  4. heat seeker

    heat seeker
    Minister of Fire 2.
    NULL


    Feb 25, 2011
    3,029
    476
    Loc:
    Northern CT
    Well, I guess the obvious question is: Are there holes for them to mount into? (Assuming you have the stove to look at.)
