Pellet Stove Control Board -- Info needed

[CladMaster]

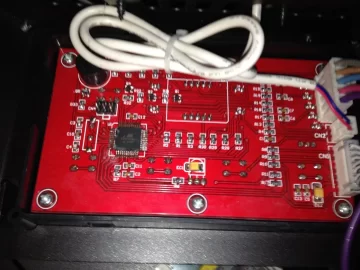

Does anyone have technical specs on this board ? (picture enclosed)

I'm after the technical spec in relation to the 6 pins on the reverse of the board, it looks like they may be pins that can have jumpers on them for changing settings (I could be wrong, hence the request for info).

Who makes this control board ?

I know this board comes on the following stoves

Vogelzang - VG5770, VG5790

Ashley AP5660 (2014 model)

There may be others, but I have yet to find them.

Thanks.



[CladMaster]

Really ? No info / takers on this ?



[SidecarFlip]

Does anyone have technical specs on this board ? (picture enclosed)

I'm after the technical spec in relation to the 6 pins on the reverse of the board, it looks like they may be pins that can have jumpers on them for changing settings (I could be wrong, hence the request for info).

With the proper electronic test equipment you can answer that question yourself....

Who makes this control board ?

Good question, I'd be willing to be it's not in the United States....

I know this board comes on the following stoves

Vogelzang - VG5770, VG5790

Ashley AP5660 (2014 model)

There may be others, but I have yet to find them.

Thanks.



[CladMaster]

I lack the tools to do that, hence the questions / request here !



[LordmetalZ28]

I have the same stove and all i know is the manuals not right for this board. You cannot adjust anything ie feed rate or prime auger.if its anything like hvac motors the board could be using resistors for speeds. But im not 100 percent sure.



[CladMaster]

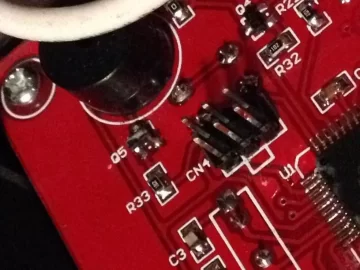

Added two extra pictures which shows the pins.



[SmokeyTheBear]

Looks like it might be a connector for an additional board or diagnostic device. Just a WAG.



[CladMaster]

I had thought of that too.

This same board is used on 4 stoves that I am aware of.....

Ashley 5660
US Stove 5660
Vogelzang VG5790
Vogelzang VG5770

The first two seem to be the same stove with it's specs.

The VG5790 has a higher btu rating @ 65,000

The VG5770 is very close in spec's to the first two stoves listed above.
