Selkirk DT venting. question?

[glenc0322]

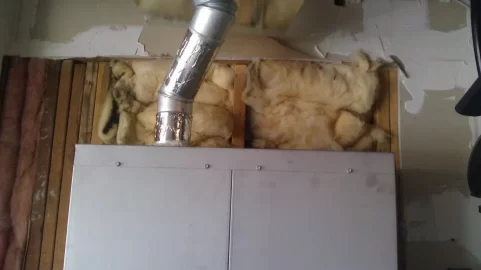

I am looking to change out my venting over the summer and replace it with the Selkirk DT vent. I want to add an oak to my inset, My stove has a zero clearance box and extends into my garage so the vent pipe goes through the roof of my garage and I dont want to make another hole in the roof. I know the parts I need and how to do it. My question is on the cap. How is the exhaust and the outside air separated. I would think that if they were close to each other there would be a potential to draw in the exaust from the stove and draw it in with the fresh air during a high wind? I like the fact that the air would be heated before it enters the stove and would cut down on the draft in the house. thanks for your help



[smoke show]

I'll be back in a second with a link to a really sexy install that should answer your question.



[smoke show]

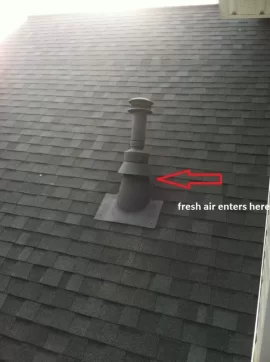

pic taken from this thread. https://www.hearth.com/talk/threads/englander-evolution-25-ep-install-w-pics.69261/ My setup is similar except I don't have the 12" extension on mine.



[Mr. Spock]

Smoke, I was wondering if the Selkirk had the potential to generate more creosote due to the cooling of the exhaust pipe.



[smoke show]

I really only notice a little build up right on the termination cap, of my 26ish' vertical. I also have an up and out for my basement install with no evidence of creosote.



[Bioburner]

View attachment 91942
pic taken from this thread. https://www.hearth.com/talk/threads/englander-evolution-25-ep-install-w-pics.69261/ My setup is similar except I don't have the 12" extension on mine.

Now I see said the blind man. Great illustration-pic to give us not in the know a better idea. Will have to check the system out to install the new stove I ordered today.



[glenc0322]

I'll be back in a second with a link to a really sexy install that should answer your question.

Thanks for the photo can the fresh air intake be raised higher ? I am sure it can but asking anyway. And is there any product to clean the fresh air inside the pipe? or only where the exhaust comes out? just a thought if something gets caught or builds up in the pipe thanks again smoke



[smoke show]

Thanks for the photo can the fresh air intake be raised higher ?

yep just add another section of double wall length of choice.

T And is there any product to clean the fresh air inside the pipe? or only where the exhaust comes out?

only the inner portion. theres supports between the inner and outer that would not allow any sort of cleaning.

thanks again smoke

no prob. every once and a while I'm helpful.



[Don2222]

Hello

Great Pic Smoke Show!

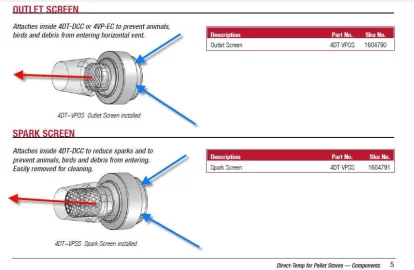

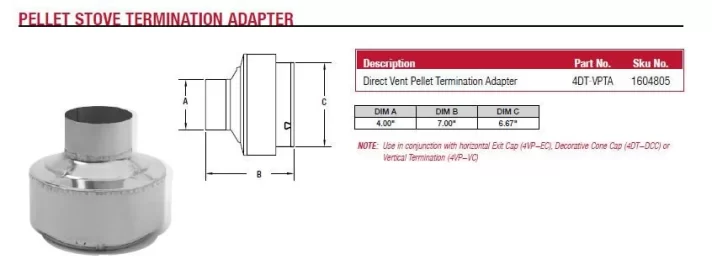

I was just going to add the the "Pellet Stove Termination Adapter" part # 4DT-VPTA 1604805 is what separates the burn air from the intake air. These pics are from the Selkirk Catalog. The Blue arrow shows the cool input air for burning and the Red arrow shown the hot flue air exiting the pipe.

Direct Temp for pellet catalog.
(broken link removed to http://www.selkirkcorp.com/WorkArea/showcontent.aspx?id=1878)
or Multi-Fuel
http://www.dynamitebuys.com/store/pdf/Selkirk-Direct-Temp-Multi-Fuel-Catalog.pdf

I just got some parts in for my big Selkirk DT masonary conversion and it is complicated! ! !
Thanks again for the good pic, that really helps alot!



[smoke show]

glenc0322, heres a pic of a left over piece I have. You can see the supports between the inner and outer.



[smoke show]

Hello



I was just going to add the the "Pellet Stove Termination Adapter" part # 4DT-VPTA 1604805 is what separates the burn air from the intake air.

yes that is the adapter for a horizontal termination.



[glenc0322]

Hello

Great Pic Smoke Show!

I was just going to add the the "Pellet Stove Termination Adapter" part # 4DT-VPTA 1604805 is what separates the burn air from the intake air. These pics are from the Selkirk Catalog. The Blue arrow shows the cool input air for burning and the Red arrow shown the hot flue air exiting the pipe.

I just got some parts in for my big Selkirk DT masonary conversion and it is complicated! ! !
Thanks again for the good pic, that really helps alot!

So you need the termination cap plus the spark screen and the outlet screen ?



[smoke show]

So you need the termination cap plus the spark screen and the outlet screen ?

vertical termination caps are different than that. Grahams setup is what you would need.



[glenc0322]

yep just add another section of double wall length of choice.


only the inner portion. theres supports between the inner and outer that would not allow any sort of cleaning.


no prob. every once and a while I'm helpful.

Thanks the picture helps and you are right there is no way to clean it and every once in a while you are helpful LOL thanks again



[Don2222]

Hello Smoke Show

What is that cone shaped skirt where the outside air comes in? Is that a separate part? I do not see it on the 4DT-VPTA?

I just found it. The skirt is:
4DT-SC Diredt Temp Storm Collar $ 9.22



[glenc0322]

vertical termination caps are different than that. Grahams setup is what you would need.

Got it he is venting through a chimney



[smoke show]

Hello Smoke Show

What is that cone shaped skirt where the outside air comes in? Is that a separate part? I do not see it on the 4DT-VPTA?

I just found it. The skirt is:
4DT-SC Diredt Temp Storm Collar $ 9.22

yep just a storm collar. for some reason grahams setup doesn't have any of the double wall extended past the cone flashing.

my double wall extends past the flashing cone but doesn't have the single wall extension that grahams does.



[Don2222]

Hello Guys

Don't forget the MOST important part! ! !

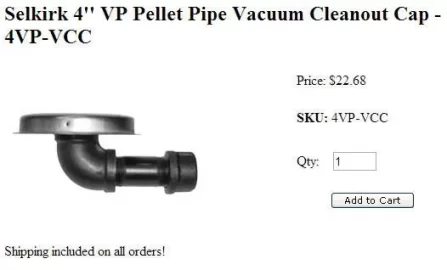

The easy peasy Vacumm Cleanout! ! ! Selkirk Part # 4VP-VCC
https://www.dynamitebuys.com/store/cart.php?m=product_detail&p=6542



[smoke show]

Don't forget the MOST important part! ! !

The easy peasy Vacumm Cleanout! ! !

I prefer this vacuum clean out method.

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

Accept third party cookies



[Don2222]

yep just a storm collar. for some reason grahams setup doesn't have any of the double wall extended past the cone flashing.

my double wall extends past the flashing cone but doesn't have the single wall extension that grahams does.

Yes, I think the single wall extension is a great idea to separate the flue more from the intake air!
Just another single wall Selkirk Part # 4VP-12 $36.55



[glenc0322]

Hello Guys

Don't forget the MOST important part! ! !

The easy peasy Vacumm Cleanout! ! !
https://www.dynamitebuys.com/store/cart.php?m=product_detail&p=6542

I cant use that on my install I need to come out with 2 45's then straight up and out. I am coming out of a zero clearance box



[mepellet]

I really only notice a little build up right on the termination cap, of my 26ish' vertical. I also have an up and out for my basement install with no evidence of creosote.

Same here. Just a little bit on the end. Little bit of hot water cleans it right up.



[glenc0322]

I prefer this vacuum clean out method.

To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.

Accept third party cookies

think you just fertilized the entire field with all that soot lol



[smoke show]

think you just fertilized the entire field with all that soot lol

good thing the dog is black, she had no idea what was about to happen.



[smoke show]

Yes, I think the single wall extension is a great idea to separate the flue more from the intake air!
Just another single wall Selkirk Part # 4VP-12 $36.55

actually its probly this part.

Selkirk 4'' Direct-Temp Multi-Fuel Tall Rain Cap - SC04RCX
