stacked storage tanks

rippa25m Posted By rippa25m, Sep 5, 2015 at 9:13 PM

  1. rippa25m

    rippa25m
    Member 2.
    NULL


    Jun 12, 2015
    39
    5
    Loc:
    Hopkinsville kentucky

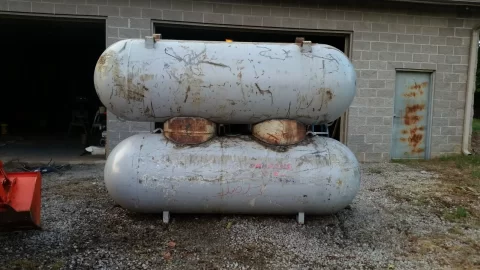

    I don't get on here and post but I do read a lot of threads and take notes. This is a pic of my two 500 gallon propane tanks I'm stacking.


    Attached Files:

    macattack_ga and velvetfoot like this.
  2. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    Nice set up

    i stacked 500 also,

    Are the denter pieces gonna be completely open for enhanced flow?

  3. Bob Rohr

    Bob Rohr
    Minister of Fire 2.
    NULL


    Jan 9, 2008
    1,153
    167
    Loc:
    SW Missouri

    Got enough room to stand them on end? You will get a lot more temperature stacking and "use-ability" especially if you can run down to a low temperature for radiant or panel rads.

  4. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    I scored two 1000 gallon propane tanks for cheap.

    Thinking about cutting them in half and welding plate in order to set them on end in new boiler room.

    any thoughts on cutting them in half like this?

  5. 711mhw

    711mhw
    Feeling the Heat 2.
    NULL


    Dec 7, 2010
    473
    112
    Loc:
    Western ME
    It maybe overly cautious, but I'd worry about the thickness that you would need for a flat plate end (bottom). I'm guessing that you'll be in a closed system and the potential power of pressure is something that I would want an engineer type person's opinion on. I'm curious on what (thickness) "they'll" say here. What's the dia. of your tanks?

  6. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    7,497
    1,311
    Loc:
    Nova Scotia
    I might be overly cautious too - but I wouldn't do any more cutting/drilling of an LP tank than I absolutely had to. If you're lucky it will have enough tappings already that you can plumb in to. You only really need two on each tank, one at the top & one at the bottom. Temp & stat wells can be replaced by strap on & external temp probe controls. Aside from possible leaky welds (I had a couple pinholes even using a pro welder), they were engineered & built that way for a reason. I think cutting in half & welding a plate on will introduce extra stress in the weld area once the tank is stood up & pressurized. Can't say whether it would lead to a problem though - but could see the weld opening up if not done right.

    I stacked mine & wouldn't hesitate to do it again - much easier to do, those things are heavy. And tall. I get great stratification, although no doubt that's easier to attain with vertical tanks. Minimizing your flow rates helps tremendously there.

  7. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    Yep
    ive had similar thoughts
    initially i thought 1 inch plate and make it wider for stability while standing on end

    i will talk with an engineer as you said
    ill post the result of that conversation

  8. Tennman

    Tennman
    Minister of Fire 2.
    NULL


    Mar 4, 2009
    971
    128
    Loc:
    Southern Tenn
    NP, took a picture of my wife with the 30' Santa in North Pole, AK last week. What pressure do you run your system? We've done some flat plate end flanges, but never for large diameter pressure vessels. In general this is a bad practice for a pressure vessel. Imagine welding a piece of flat bar onto the end the cylinder section of your tank and pulling on the end of the flat bar from inside the cylinder. The load on the weld tries to peel the weld from the inside. In theory that's how your loading a flat plate end disc weld.

    Much better to shorten the center section and re-weld the dome back on. The flat plate can be made to work safely as long as it's thick enough to minimize deflection in the center. The calculation for the center deflection assuming steel isn't difficult. 20 psi on that area is a huge force.

    If your system is unpressurized, ignore all the above.

  9. warno

    warno
    Minister of Fire 2.
    NULL


    Jan 3, 2015
    860
    232
    Loc:
    illinois
    X2 on the plates being a bad idea. Like tennman said cut some of the "belly" out of the tanks and put the ends back on. Then build a stand with legs if you need to stand them up.

  10. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    Thanks for all the help

    Im 5 minutes from that Santa:)

    On another note, can a person buy the dome ends?
    this would allow me to make 4 tanks for vertical installation

  11. warno

    warno
    Minister of Fire 2.
    NULL


    Jan 3, 2015
    860
    232
    Loc:
    illinois
    I don't know about around your area but near me we have a place that refurbishes and makes propane tanks ready to buy. They sell the old decommissioned tanks. Still good enough to hold pressure, just out of date tanks. If you could find something like that you could get as many ends as you wanted. But I'm sure you could find them online too. You'll just have to shop around.

  12. 711mhw

    711mhw
    Feeling the Heat 2.
    NULL


    Dec 7, 2010
    473
    112
    Loc:
    Western ME
    I wouldn't give up yet, just get a opinion/solution from some one that is qualified. Depending of the dia of the circle you need, I would guess, repeat guess that the 1" you were thinking of would be plenty. I would think that this would also require pre-heating the heavy plate prior to welding to the maybe 1/4" wall tank. You might ask over at; http://weldingweb.com/forumdisplay.php?10-Welding-Projects-amp-Pictures
    Not sure what would be the best "section" to post your question. There is a wide range of knowledge there and I', sure that some of them have worked on "pressure vessel's".

  13. Boardroom

    Boardroom
    Member 2.
    NULL


    Sep 9, 2014
    108
    3
    Loc:
    Ottawa, Ontario
    I sure hope you guys are wrong. Take a look at my avatar. 1000 gallon tank cut in half and a plate welded on the bottoms. Last winter was their first in operation. They function beautifully but now you have me worried. I bought them from a guy who repurposes these tanks specifically to be used as storage for these kinds of systems. I assume I am not the only one he has made this type for.

  14. 711mhw

    711mhw
    Feeling the Heat 2.
    NULL


    Dec 7, 2010
    473
    112
    Loc:
    Western ME
    30-35 psi may not be that much pressure, my cylinder of 80/20 gas for the MIG welder is over 10k psi when filled. If you made it through last year, and the guy makes these regularly, I wouldn't loose sleep over it. I'm sure that a properly sized expansion tank and a properly working p.r valve might just be a little more important in your situation.

  15. warno

    warno
    Minister of Fire 2.
    NULL


    Jan 3, 2015
    860
    232
    Loc:
    illinois
    I can say from experience that a flat bottom will work. It's just not ideal. If the plate is properly welded with the proper reinforcement on the plate, usually on the inside to prevent bulging out, it will work for mild pressure. I wouldn't trust a very high pressure application with plate vs. dome ends.

  16. Boardroom

    Boardroom
    Member 2.
    NULL


    Sep 9, 2014
    108
    3
    Loc:
    Ottawa, Ontario
    I checked with my guy and he says the plates are reinforced with channel iron on the bottom . He also tests to 35 psi before the tanks are shipped. I usually run at around 20-22 psi max. Sorry, I forgot to ask how thick the plate was.

  17. kjahnz

    kjahnz
    Burning Hunk 2.
    NULL


    Oct 14, 2012
    139
    33
    Loc:
    Minnesota

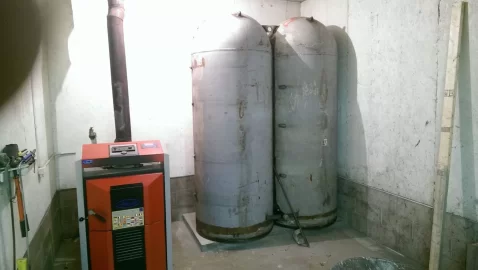

    I think I went pretty far, with my tanks. If I did it again, i'd do flat bottoms.


    Attached Files:

  18. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    Nice, well Im feeling better about things
    But still plan to research the best way ahead

  19. PassionForFire&Water

    PassionForFire&Water
    Minister of Fire 2.
    NULL


    Jan 14, 2011
    651
    124
    Loc:
    Billerica, MA
    These tanks are non-pressurized, correct?
    This type of construction will not be able to hold 5 psi, unless there are some stays inside to keep it "flat"

  20. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    Pressurized for sure
    35 psi pop off
    the flat plate on the bottom will be reinforced

  21. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    ote="kjahnz, post: 1967571, member: 23979"]I think I went pretty far, with my tanks. If I did it again, i'd do flat bottoms.[/quote]
    What made you decide to cutt tank and invert dome
    Was it clearance

  22. NP ALASKA

    NP ALASKA
    Burning Hunk 2.
    NULL


    Feb 3, 2008
    221
    40
    Loc:
    North Pole, ALASKA
    I am interested in the size and thivkness of the plat used for your tanks.
    I got two 1000 gallon tank; i want to cutt them in half and weld them same as yours.
    4 tanks for a total of about 2000 gallons of storage.
    The will be much easier to handle and move like this. If i stack them the entire unit becomes very combersom to handle.

    Thnx Morgan

  23. PassionForFire&Water

    PassionForFire&Water
    Minister of Fire 2.
    NULL


    Jan 14, 2011
    651
    124
    Loc:
    Billerica, MA
    Below a picture of an ASME rated tank (section VIII) with flat bottoms (Hydronic Specialty Supply)
    You can clearly see the stays, and there are many of them.
    [​IMG]

  24. kjahnz

    kjahnz
    Burning Hunk 2.
    NULL


    Oct 14, 2012
    139
    33
    Loc:
    Minnesota

    Sorry, but yes they are pressurized, tested to 45 psi. Stays, yes, to keep them from cracking open like eggs.


    Attached Files:

  25. kjahnz

    kjahnz
    Burning Hunk 2.
    NULL


    Oct 14, 2012
    139
    33
    Loc:
    Minnesota
    What made you decide to cutt tank and invert dome
    Was it clearance[/quote]

    Not clearance, just repurposing cost and convenience.

    If I did it again, I would cut a circle of the same thickness of the tank wall. Recess that 3 or 4 inches into the tank, weld in place. Then using 3 inch flat stock, weld bracing to wall and plate, every 3 to 4 inches."on edge"

    I would gain more volume.
