Wall being installed, what modifications may be needed?

[bukes007]

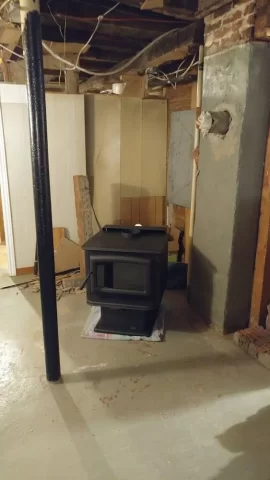

I will be finishing this space and installing a wall that will be running between the chimney and the stove. Currently I have single wall pipe from the stove to the tee snout. The tee is connected to a rigid stainless steel liner which is insulated with 1/2" insulation and run up the masonry chimney.

My question is what is there to consider now that I want to place a wall there? I am having a hard time finding good info online. Thanks for reading.



[bukes007]

After more research, it appears this is the answer...

Insulated Chimney Thimble for Thimble and Wall Pass Thru Installations - Rockford Chimney

An Insulated Chimney Thimble protects the wall from overheating where the flue pipe passes through. Includes installation instructions. Free shipping.

www.rockfordchimneysupply.com



[gthomas785]

What material is the wall? If it is combustible (wood, drywall, etc) then you need an insulated thimble. Another option is to frame in a square opening in the wall with the necessary clearance from the pipe and fill that space with bricks or tile to make it look nice. Then use a round trim ring where the pipe goes into the tiles.

Of course when building a combustible wall make sure you adhere to the clearances for the stove and connector pipe.



[bukes007]

The wall will be 2x4 with drywall on top.

I thought maybe double wall pipe because of the reduced clearance but where it would need an adapter to go back to single to connect to the tee snout I thought I needed the insulated thimble.



[gthomas785]

You are probably best off using the insulated thimble. There is some safe distance away that you can have the wall material without needing it but I'm not sure what that is, someone else might know.



[begreen]

Most stove manuals have a section on passing through a wall. An insulated thimble is a good option. Here are a few others.



[bholler]

An insulated thimble will certainly work. But building the wall with steel studs rockwool and non-combustible finish material may be cheaper and easier



[Fluke216]

Is the liner what’s sticking out? Does this thimble slide right over and attach to masonry?



[bukes007]

An insulated thimble definitely seems like the way to go I think. Thanks for the feedback, everyone.



[Rickb]

Watch your stove clearences to the wall as well. You may have to do the wall out of metal studs and cement board anyways.
