Was my fireplace poorly built? And how do I fix it?

Crobran Posted By Crobran, Aug 13, 2019 at 11:43 PM

  1. Crobran

    Crobran
    New Member 2.
    NULL


    Aug 1, 2019
    7
    0
    Loc:
    Houston
    I posted in another thread that I discovered that the construction of my fireplace seems a little odd. The floor had a few bricks that were sinking. Upon removing a couple of them, I discovered that beneath the floor bricks there was a layer of concrete or similar material about an inch thick. It was cracked and sinking in places (obviously) so I removed some chunks of it to find that beneath it was a seemingly random jumble of bricks and chunks of rock, with sand in between them.

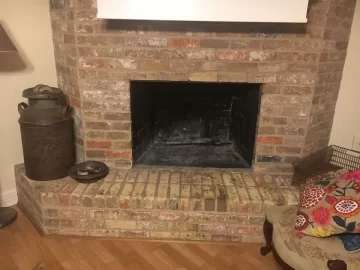

    Some bricks in the inside wall of my fireplace were a little loose so I removed one of them and found the same thing: a random pile of bricks in the space between the interior and exterior walls of the fireplace. My most recent discovery is that the hearth on the left side of my fireplace wobbles a bit. Obviously, I need to do some work and so I have some questions, but first, here's a picture of my fireplace:


    The hearth is about a foot high. The wall to the left of the fireplace is an exterior wall, with brick on the outside. The wall to the right is an interior wall. Our house sits on a concrete foundation, and it was built in 1975. I should also mention that I see no signs of the foundation shifting - no cracks in any walls, and the door immediately on the other side of the wall to the right if the fireplace opens and closes fine.

    My first thought is to take the floor out of the fireplace and try to investigate the cause of the sinking material beneath the floor. Assuming it's just some kind of expected settling, then I would guess that I should fill the space with a loose concrete.

    My big question is this: given the year it was built as well as what I've been able to discover so far, what do you think I'm likely to find regarding the construction of the fireplace as I remove more flooring bricks? Specifically, I'm wondering where the structural support for the interior walls of the fireplace is likely to be. For clarity, when I refer to the interior walls of the fireplace, I mean the black-bricked part of the fireplace.

    From what I can tell, the interior walls of the fireplace do not continue down to the foundation of the house. It seems that the interior walls sit on the floor of the fireplace. I need to remove and rebuild the structure below the floor bricks, but I'm concerned that if the interior walls sit on the fireplace floor, then as I remove more of the floor, the whole interior of the fireplace may come caving in.

    Second, is there a way that I can put some kind of support beneath the interior walls as I fix the problem with the floor?

    Third, given that the fireplace shares part of an exterior wall (exterior of the house) which is also brick, how likely is it that the brick of the exterior part of the fireplace on the inside of the house is connected to the exterior brick wall of the house?

    Fourth, is the fact that the space behind the interior walls is filled with a random pile of bricks a cause for concern? Was that a common practice at one time? Is there anything I can or should do to fill in the gaps? The bricks behind the walls don't move, by the way. There seems to also be random blobs of mortar which are holding them in place.

    Thanks for reading through this rather long post, and thanks for any advice you can offer!

  2. Crobran

    Crobran
    New Member 2.
    NULL


    Aug 1, 2019
    7
    0
    Loc:
    Houston
    More info - I just did some further investigation on the wobbling hearth I'd mentioned. Apparently only a section of only the top layer of bricks on the hearth is wobbling. It is a section on the left end of the hearth, which is the same side of the fireplace that had sinking floor and a couple of loose bricks on the interior wall.

  3. bholler

    bholler
    Chimney sweep 2.
    NULL

    Staff Member

    Jan 14, 2014
    18,189
    4,226
    Loc:
    central pa
    Your hearth floor and hearth extension should both be built ontop of one continuous slab of concrete. That slab should sit on the fireplaces foundation. Then the hearth floor and hearth extension would be laid ontop of that then the firebox. Yours clearly was not built on a proper slab. It sounds like you will need to remove the firebox and floor pour a slab and rebuild. This id a pretty complicated masonry project that involves lots of planning and compound angles. You also have to be able to tell if that firebox is supporting anything above. It shouldnt but clearly the person who built it didnt exactly go by the book.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  4. Crobran

    Crobran
    New Member 2.
    NULL


    Aug 1, 2019
    7
    0
    Loc:
    Houston
    Are you saying that the flue and damper should NOT be supported by the firebox? If not, then what are they built upon - what supports them?

  5. bholler

    bholler
    Chimney sweep 2.
    NULL

    Staff Member

    Jan 14, 2014
    18,189
    4,226
    Loc:
    central pa
    The damper will be supported by the firebox yes. The smoke chamber and clay tiles should not be.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  6. xman23

    xman23
    Minister of Fire 2.
    NULL


    Oct 7, 2008
    1,953
    388
    Loc:
    Lackawaxen PA
    It may be a complete tear down and rebuild. But before doing that I would understand what's on a foundation and what's not. Hopefully it's just a section not built right. Voids filled with rubble is common, just a way to dispose of the cut bricks.
