WoodChuck 3100 Top Lever --What's it for?

Drew King Posted By Drew King, Oct 27, 2018 at 9:34 PM

  1. Drew King

    Drew King
    New Member 2.
    NULL


    Oct 27, 2018
    1
    0
    Loc:
    Near Pittsburgh, PA
    Hello everyone,
    I'm a novice when it comes to a wood furnace.

    My elderly father in law recently passed away.
    At his home, he owns a Woodchuck 3100 wood furnace.

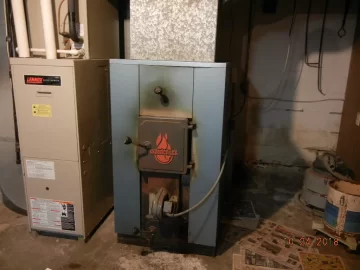

    On the front of it, there are 3 handles.

    What is the top handle/lever for? We pulled it out, and it just looks like a 2 foot long or so straight rod.
    Correct me if I'm wrong, but I believe it is called a Heat Exchanger Control Rod.
    I do notice that on the back side of the furnace at the same height, the exhaust duct is there.

    Anyone know it's proper function?


    Attached Files:

  2. 3fordasho

    3fordasho
    Minister of Fire 2.
    NULL


    Jul 20, 2007
    746
    151
    Loc:
    South Central Minnesota

    Total guess as I don't own a Woodchuck, but it could be a baffle bypass. It would be used during reloads to reduce smoke spillage when the loading door is open. IE the control would give the exhaust smoke a straighter shot up the flue pipe when in bypass mode. Then once the loading door is closed again the lever is moved so the baffle is back in place causing a indirect path for the flames/exhaust, slowing the exhaust, retaining more heat in the furnace. Your description sounds like some of the mechanism is missing or burned away however.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    8,735
    1,661
    Loc:
    Nova Scotia
    Did you try googling a manual?
