Pictures of New Hearth

offroadaudio Posted By offroadaudio, Sep 15, 2008 at 1:25 PM

Thread Status:
Not open for further replies.
  1. offroadaudio

    offroadaudio
    New Member 2.
    NULL


    Dec 17, 2007
    365
    22
    Loc:
    South Central Pa.

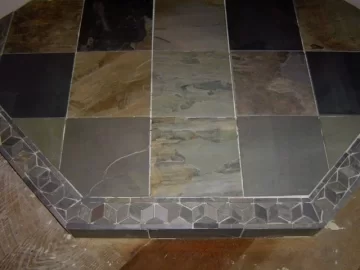

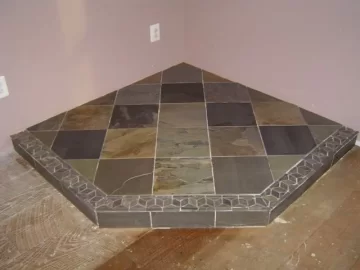

    It's almost complete - finally! - still needs grout.
    Here are some build details:
    framing is steel stud, then 1 layer of sheet metal, then 3 layers of 1/2" durock, then the slate tile
    Stove is a Hearthstone Shelbourne cast iron
    Wall shield will be 1/2" durock spaced 1" from wall and covered with 2' x 2' tin ceiling tiles. The tiles are antique bronze and have an embossed pattern.
    I'll follow up as that come together.
    Have a great day.

    'FRank


    Attached Files:

  2. Adios Pantalones

    Adios Pantalones
    Minister of Fire 2.
    NULL


    May 20, 2008
    6,589
    1,424
    Loc:
    S.NH- Mass's smoking section
    pretty schweet

  3. Drumaz

    Drumaz
    Member 2.
    NULL


    Jul 23, 2008
    108
    0
    Loc:
    NW CT
    Nice work!!

  4. Tarmsolo60

    Tarmsolo60
    Feeling the Heat 2.
    NULL


    Dec 2, 2007
    306
    0
    Loc:
    Adirondack Mountains
    very nice... be sure to show us pics when the tin is on the walls!

  5. ScottF

    ScottF
    New Member 2.
    NULL


    Aug 7, 2008
    411
    0
    Loc:
    Southern NH
    Very nice job. Would love to see it complete. Thanks for the photos

  6. Tfin

    Tfin
    New Member 2.
    NULL


    Jul 24, 2007
    556
    0
    Loc:
    Central Maine
    Excellent job.....really like the multi-colored tiles!

  7. firefighterjake

    firefighterjake
    Minister of Fire 2.
    NULL


    Jul 22, 2008
    17,306
    3,676
    Loc:
    Unity/Bangor, Maine
    Very sharp looking hearth pad.

  8. acesover

    acesover
    New Member 2.
    NULL


    May 19, 2008
    83
    0
    Loc:
    Long Island, NY
    good job looks like a pre fab one. looking forward to finished pics

  9. smokinj

    smokinj
    Minister of Fire 2.
    NULL


    Aug 11, 2008
    15,981
    1,412
    Loc:
    Anderson, Indiana
    Nice eye for detail!

  10. Poult

    Poult
    Member 2.
    NULL


    Jan 12, 2008
    111
    0
    Loc:
    Northern NYS
    Really pretty. I like that border. :)

  11. offroadaudio

    offroadaudio
    New Member 2.
    NULL


    Dec 17, 2007
    365
    22
    Loc:
    South Central Pa.
    Thanks to all for the positive comments. I'll get more pix when the wall shield is up and grout in place.

    'FRank

  12. Windy

    Windy
    New Member 2.
    NULL


    Sep 15, 2008
    14
    0
    Loc:
    Fallon, NV
    That's gorgeous! If I place my order now, can I have it by the end of the month? :)

  13. dgisme

    dgisme
    New Member 2.
    NULL


    Aug 8, 2008
    45
    0
    Loc:
    orange county N.Y.
    Frank that looks awsome !!!!!!

  14. offroadaudio

    offroadaudio
    New Member 2.
    NULL


    Dec 17, 2007
    365
    22
    Loc:
    South Central Pa.

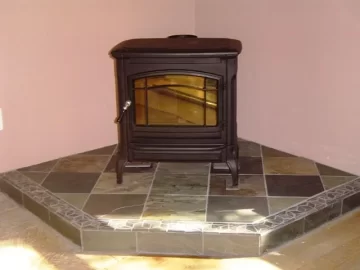

    Grout in.
    Stove on.
    Wall shield soon I hope........


    Attached Files:

  15. InTheRockies

    InTheRockies
    New Member 2.
    NULL


    Aug 15, 2008
    366
    0
    Loc:
    Northern US Rockies
    That looks marvelous; you did a very good job of creating your own hearth pad! I really like the slate that you picked out. You will enjoy the warmth and ambiance of your new wood stove, not to mention the energy savings. It will add value to your home as well. Thanks for sharing the photos.

  16. ScottF

    ScottF
    New Member 2.
    NULL


    Aug 7, 2008
    411
    0
    Loc:
    Southern NH
    Yes excellent job. We are anxious to see the heat shield walls. That is a great idea with the tin panels. I love tin panel ceilings. Send when complete. Thanks for sharing.

  17. tinkabranc

    tinkabranc
    Minister of Fire 2.
    NULL


    Oct 23, 2007
    1,643
    8
    Loc:
    South Coast MA
    WOW! That hearthpad looks great! love the colors

  18. Henz

    Henz
    New Member 2.
    NULL


    Mar 23, 2006
    1,735
    4
    Loc:
    Northville, NY
    how much did all od those materials cost

  19. offroadaudio

    offroadaudio
    New Member 2.
    NULL


    Dec 17, 2007
    365
    22
    Loc:
    South Central Pa.
    Metal studs leftover from another job
    durock 6 x $8.50ish
    screws / mortar / thinset - $40
    Tile on sale at HD - $85 including the border - they were more expensive than the 12 x 12s.

    Thanks for the compliments.

  20. Henz

    Henz
    New Member 2.
    NULL


    Mar 23, 2006
    1,735
    4
    Loc:
    Northville, NY
    well, I would say that that is a hell of a deal, minus your time. I paid $350 for an American Panel Hearthpad, which I absolutly love but if I had the skills to build my own I would have

  21. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    61,844
    7,905
    Loc:
    South Puget Sound, WA
    That's a great looking hearth, I love the border detail. Keep on posting the pics, it's coming along really well.

  22. Firenutz

    Firenutz
    New Member 2.
    NULL


    Sep 13, 2008
    106
    0
    Loc:
    Northeastern PA
    Nice job on the hearth. Is it real slate? What did you use for grout?

  23. bfunk13

    bfunk13
    Minister of Fire 2.
    NULL


    Sep 11, 2008
    765
    343
    Loc:
    Wyoming
    Thumbs up!
    Looks great.

  24. BJ64

    BJ64
    Minister of Fire 2.
    NULL


    Jul 24, 2008
    617
    6
    Loc:
    NE Oklahoma
    OHHHHHH you are messing it all up! Get the stove off there. :)

    That hearth looks too nice to put any stove on it!

    Nice work to go along with the well thought out idea. I am envious.

  25. raybonz

    raybonz
    Minister of Fire 2.
    NULL


    Feb 5, 2008
    6,210
    1,036
    Loc:
    Carver, MA.
    Great job on the hearth.. You have a good eye for color and style..

    Ray
