SIMPLE DAMPER QUESTION

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by El Finko, Jan 17, 2013.

  1. El Finko

    El Finko Member

    Joined:
    Aug 22, 2012
    Messages:
    154
    Loc:
    Mason Dixon Line
    I picked up one of those 6" Made in China damper plates from Northern. Before I go punching holes in my double-wall stove pipe- anything I should be aware of??
    Thanks fellas.
    P.S. Thanks to all who post on these forums. I attribute much of my 1st-year success to what I have learned here.

    Helpful Sponsor Ads!





  2. Woody Stover

    Woody Stover Minister of Fire

    Joined:
    Dec 25, 2010
    Messages:
    5,799
    Loc:
    Southern IN
    It might be handy to be able to reach the plate from inside the stove to remove it for brushing the flue or whatever else...
  3. El Finko

    El Finko Member

    Joined:
    Aug 22, 2012
    Messages:
    154
    Loc:
    Mason Dixon Line
    I think I catch your drift. You're basically drilling a hole all the way thru, then holding the plate in the right spot and threading the rod thru.
    So later- for cleaning purposes- you can reach up from inside the stove, hold the plate, slide the rod out, drop the plate out of the way, and scrub away. No??
  4. Woody Stover

    Woody Stover Minister of Fire

    Joined:
    Dec 25, 2010
    Messages:
    5,799
    Loc:
    Southern IN
    No, not no. ==c
  5. rideau

    rideau Minister of Fire

    Joined:
    Jan 12, 2012
    Messages:
    1,963
    Loc:
    southern ontario

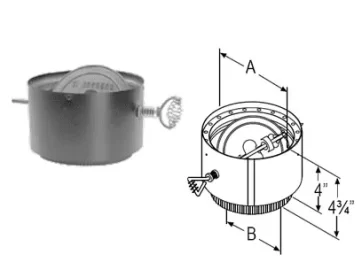

    Is your double wall pipe an adjustable segment? Why not just get your manufacturer's section with built in damper that will slide right onto the pipe? Pays for itself in time saved when it comes to cleaning the stove. What will you do with the other damper, remove and realign holes and replace every time you clean the pipe?
  6. tim1

    tim1 Member

    Joined:
    Dec 8, 2011
    Messages:
    135
    Loc:
    columbia river gorge,portland or
    for years I used these key dampers and used plumbing tape wrapped around the pipe and counted the holes and drilled the 1/4 hole evenly with no problems. Now, with the summit, I did not put one in. The china ones weaken in the heat and do not work well. The rod is not carbon steel.Tim
  7. Heatsource

    Heatsource Minister of Fire

    Joined:
    Dec 19, 2011
    Messages:
    786
    Loc:
    Northern CA
    basic china dampers are too short to fit in double wall
    as far as i know made just for single wall
  8. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    49,795
    Loc:
    South Puget Sound, WA
    I would return the cheap damper and get one made by the mfg of the double-wall pipe for their system.

    Heatsource likes this.
  9. corey21

    corey21 Minister of Fire

    Joined:
    Oct 28, 2010
    Messages:
    2,241
    Loc:
    Soutwest VA
    I only use mine when i actually need to control my stove better.
