Started Woodstock Keystone Install (pics)

Post in 'The Hearth Room - Wood Stoves and Fireplaces' started by Todd, Jun 24, 2010.

  1. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    Well I dove in today and chiseled out enough face brick to expose the fireplace heatform. Next is taking out the heatform piece by piece then call the mason to build the new hearth for the Keystone.

    Attached Files:

    Helpful Sponsor Ads!





  2. cmonSTART

    cmonSTART Minister of Fire

    Joined:
    Nov 29, 2007
    Messages:
    2,284
    Loc:
    Antrim, NH
    Is it all rusted out?
  3. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    Yeah, pretty well shot and I think the heat tubes were too close to that paneling and header board behind it. It's going to be fun cutting it out, I'll try a recipricating saw and grinder first and if that goes bad I'll take a torch to her.
  4. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,990
    Loc:
    Northern Virginia
    Dat is ugly!

    Gonna be nice with that little rock in there though.
  5. Clarkbar2311

    Clarkbar2311 New Member

    Joined:
    Mar 16, 2010
    Messages:
    223
    Loc:
    SE Michigan
    good job thus far, cant wait to see the finished product.
  6. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    This morning the heatform came out. What a pain in the ash! Cut it out piece by piece with reciprocating saw and other assorted tools until the top above the damper was out then the whole thing slid out. There was a huge rusted out hole in the back. Now I'm ready for the mason to come do his thing.

    Attached Files:

  7. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,003
    Loc:
    South Puget Sound, WA
    Man, it's looking ooglier by the minute. Good that you are getting this fixed.
  8. Dakotas Dad

    Dakotas Dad Minister of Fire

    Joined:
    Mar 19, 2009
    Messages:
    1,345
    Loc:
    Central Kentucky
    Man I wish I was closer, looks like a fun time you are having there. What are you going to have a mason do?


    I am resisting the urge to point out it's just stone/rocks/bricks and mortar, you got the skills, you just need to find 'em.. :) If you were willing to tackle the tear out, the install should be a breeze.


    EDIT: *resist fail*
  9. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    I wish I had the skills to build the hearth. The mason will cover all that crap up with a brick Rumsford style hearth and leave a hole in the top for the liner. Something like this.
    http://www.duclosmasonry.com/sitebuildercontent/sitebuilderpictures/.pond/scan0023.jpg.w300h260.jpg
  10. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota

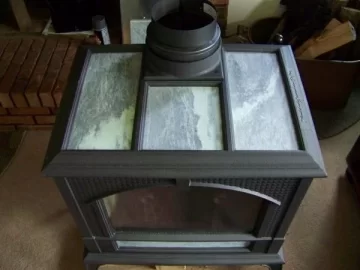

    Picked her up today, what a beautiful little stove. Heavy sucker too!

    Attached Files:

  11. cmonSTART

    cmonSTART Minister of Fire

    Joined:
    Nov 29, 2007
    Messages:
    2,284
    Loc:
    Antrim, NH
    Ha! Yes they are pretty heavy. I hate moving them.
  12. begreen

    begreen Mooderator Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    47,003
    Loc:
    South Puget Sound, WA
    Sure is a good looker though.
  13. cmonSTART

    cmonSTART Minister of Fire

    Joined:
    Nov 29, 2007
    Messages:
    2,284
    Loc:
    Antrim, NH
    That they are. Woodstock makes a great looking stove!
  14. BrotherBart

    BrotherBart Hearth.com LLC Mid-Atlantic Division Staff Member

    Joined:
    Nov 18, 2005
    Messages:
    27,990
    Loc:
    Northern Virginia
    So this pup is gonna be all the way out in front of the fireplace? Else how ya gonna feed it?
  15. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    It's going to be half in and half out. I should have just enough room to load her. If not I can bring it out further.
  16. ddddddden

    ddddddden Minister of Fire

    Joined:
    Oct 20, 2009
    Messages:
    1,324
    Loc:
    Central Va
    +1
    Is that "charcoal?"
  17. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    Yes
  18. leeave96

    leeave96 Minister of Fire

    Joined:
    Apr 22, 2010
    Messages:
    1,112
    Loc:
    Western VA
    Todd,

    How's the Keystone install going?

    Your Keystone (from the pics) has much more grain than mine - looks great!

    Bill
  19. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    Still waiting on the mason, he's a busy guy but does a great job so i'm willing to wait. Hope he starts soon, i'm tired of staring into that big ugly hole in the wall.

    I was surprised to see all the great viening on the Keystone, looks twice as nice as my Fireview. It's going to be interesting to see the burn comparison of the two stoves. There is not much difference in usable fire box size and overall weight between the two. I'm betting I can get a good 10+ hour burn out of the Keystone with 4 good sized splits just like the Fireview.
  20. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    Modified my old Fireview OAK to fit my Keystone and will hook it up via the old ash dump. Also painted the air control numbers for better visibility and took some pics for your enjoyment.

    Attached Files:

  21. Backwoods Savage

    Backwoods Savage Minister of Fire

    Joined:
    Feb 14, 2007
    Messages:
    27,816
    Loc:
    Michigan
    Todd, I'll be curious how things go this coming winter.
  22. Highbeam

    Highbeam Minister of Fire

    Joined:
    Dec 28, 2006
    Messages:
    8,956
    Loc:
    base of Mt. Rainier on the wet side, WA
    Thanks for the pics. The WS site, well none of them really, show the kind of shots that indicate how you will actually be using it. So you think the firebox sizes are similar? Being able to fill the firebox to the roof sure gets you a lot more space than the non-cats. The huge rear clearance requirement on the keystone is a killer.
  23. Todd

    Todd Minister of Fire

    Joined:
    Nov 19, 2005
    Messages:
    9,226
    Loc:
    Lake Wissota
    According to my measurements the Keystone comes in at 1.4 cu ft and the Fireview at 1.8 and that's measuring the usable space from andirons to back wall, top to bottom and side to side. Just looking at them you really can't tell much diff. I figure now I won't have to sacrifice those 12 hour burns mid winter with the Fireview to pick up the slack now that I have the Keystone and the whole house will have a much more even heat.
  24. North of 60

    North of 60 Minister of Fire

    Joined:
    Jul 27, 2007
    Messages:
    2,449
    Loc:
    Yukon Canada
    I am excited for you Todd. The first fire is gonna be real neat. Cheers to a extra warm house this winter. I wouldnt mind having one of those upstairs when we get into the -40s. Have fun.
  25. ddddddden

    ddddddden Minister of Fire

    Joined:
    Oct 20, 2009
    Messages:
    1,324
    Loc:
    Central Va
    Beauteeful. How many hours do you get on a 12er? Couldn't find any Keystone lager for the photo shoot? :) FV take a longer split?
