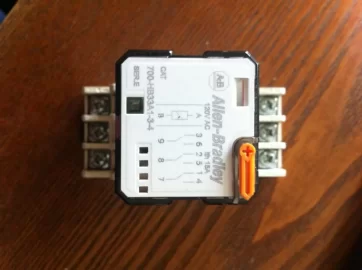

    Can anyone tell me how to wire this relay. I want to use it to control a circ pump for slab heating ImageUploadedByTapatalk1361486674.028841.jpg

    Collapse Signature Expand Signature

    Helpful Sponsor Ads!





  2. PassionForFire&Water

    PassionForFire&Water
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 14, 2011
    Messages:
    622
    Likes Received:
    120
    Loc:
    Billerica, MA
    It's a 3 pole, double throw
    A-B is your control voltage.
    When you have 110V over AB then 3 switches to 6, 8 to 5 and 4 to 7
    What's your control signal? Concrete temp? or room temp? or ... ?

    Collapse Signature Expand Signature
  3. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    Room temp. 24v -2 wire from wall thermostat.

    Collapse Signature Expand Signature
  4. PassionForFire&Water

    PassionForFire&Water
    Expand Collapse
    Minister of Fire

    Joined:
    Jan 14, 2011
    Messages:
    622
    Likes Received:
    120
    Loc:
    Billerica, MA
    Don't see how this relay can be used for this purpose. You need a 110V control voltage to activate the relay
    But I may need to brush up on my eletrical skills;em

    Collapse Signature Expand Signature
  5. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    I think your right . An electrician friend gave it to me . I think he gave me the wrong relay. trying to find more info on it.

    Collapse Signature Expand Signature
  6. taxidermist

    taxidermist
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 11, 2008
    Messages:
    1,034
    Likes Received:
    15
    Loc:
    Fowlerville MI
    Collapse Signature Expand Signature
  7. __dan

    __dan
    Expand Collapse
    Feeling the Heat

    Joined:
    Oct 5, 2011
    Messages:
    284
    Likes Received:
    67
    No. For a circ relay, something like this;

    http://www.automationdirect.com/adc...81_-z-_782_-z-_783_-z-_784_Series)/781-1C-24A

    Essential features: socket mounted for easy troubleshooting/replacement, low cost, choose the control voltage and poles, throws, to match the existing system, easy for group mounting in a separate enclosure.

    If you need a single relay in its own enclosure, RIBs are good. I am usually on one side or the other, ice cube relays or the next step up for me is definite purpose DP contactors.

    I hope you have an outdoor reset controller to set the slab water temp. I hope you understand I can only bring myself to give how to wiring advice to a licensed person. I cannot otherwise. You are certainly encouraged to ask of others.

  8. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    Well I'm not a certified. Electrician. But I wired my 2800 square foot house and 1600 square foot shop.
    The the electrical inspector said my wiring was excellent . All my work passed. I did have a certified electrician install the panel and meter. His work failed. Cost me the price of another inspection.

    Collapse Signature Expand Signature
  9. wood thing

    wood thing
    Expand Collapse
    Member

    Joined:
    May 20, 2010
    Messages:
    91
    Likes Received:
    9
    Loc:
    potter co. pa.
    You could install a second relay, a simple "ice cube" type dpdt 24 v coil controling 120. Long way around but could work. Not expensive. Might need transformer

    Collapse Signature Expand Signature
  10. taxidermist

    taxidermist
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 11, 2008
    Messages:
    1,034
    Likes Received:
    15
    Loc:
    Fowlerville MI

    Plus you stayed at a Holiday inn last night!

    Collapse Signature Expand Signature
    mikefrommaine likes this.
  11. ComnRailPwr

    ComnRailPwr
    Expand Collapse
    New Member

    Joined:
    Oct 30, 2012
    Messages:
    4
    Likes Received:
    0
    You need a line voltage (120v in this case) temp control to signal relay or a transformer to step voltage from 24v to 120v if using a low voltage temp controler.

  12. __dan

    __dan
    Expand Collapse
    Feeling the Heat

    Joined:
    Oct 5, 2011
    Messages:
    284
    Likes Received:
    67
    The industry concern is the liability, generally the law will assign the liability to the guy with the license. And, generally, the performance of J Q Public is to punish the other guy without reason or mercy. I am not too concerned about my liability, but J Q P is something to be afraid of. Certainly not you, but it is a learned and standard method of trying to treat everyone fairly. Even with friends and neighbors, I would get blamed when TSHTF as the last guy in there, for stuff I have nothing to do with, but saw and said was bad. Just mentioning my name would get me in deposition, which I am ready for (I said I do not give wiring advice unless you have a license). Nothing personally of course, I intended to give a standard CYA disclaimer.

    Lots of guys survive by not knowing or touching anything. So, it must be someone else's fault, is their game plan. Creative and productive people get tarred and feathered for their efforts. This I had to learn.

  13. Fred61

    Fred61
    Expand Collapse
    Minister of Fire

    Joined:
    Nov 26, 2008
    Messages:
    1,962
    Likes Received:
    375
    Loc:
    Southeastern Vt.
    Why would anyone waste their time typing all those words to tell someone that they can't tell them anything?

    Collapse Signature Expand Signature
    mikefrommaine likes this.
  14. __dan

    __dan
    Expand Collapse
    Feeling the Heat

    Joined:
    Oct 5, 2011
    Messages:
    284
    Likes Received:
    67
    You are reading something that is not there. I gave a semihelpful response, he had chosen the wrong relay which would have given him the grief of needing a separate enclosure and convertng back and forth from class 1 to class 2 wiring.

    I did not offend or intend to and did not call anyone a compete moron. But of course I am able, if that's what you need me to do.

  15. seige101

    seige101
    Expand Collapse
    Minister of Fire

    Joined:
    Mar 25, 2008
    Messages:
    613
    Likes Received:
    78
    Loc:
    Western MA
    Collapse Signature Expand Signature
  16. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    Don't worry Fred I'm not that someone? I listen and learn from advice wether its good or bad. And thanks Dan and everyone for the good advice.

    The law here in BC changed about 5 yrs. ago. Electricians are allowed to help and advise home owners , in fact they encourage it as there is a better chance it will be done right. Hence safer for home owner..

    Collapse Signature Expand Signature
  17. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    No offence taken at all Dan. Just bad texting vocabulary on my part:)

    Collapse Signature Expand Signature
  18. huffdawg

    huffdawg
    Expand Collapse
    Minister of Fire

    Joined:
    Oct 3, 2009
    Messages:
    1,212
    Likes Received:
    70
    Loc:
    British Columbia Canada
    At the moment I am using a double pole line voltage thermostat that's wired to the pump and is plugged into a receptacle . I did this as a temporary measure as it beats plugging the pump cord into the wall every time I need heat. I have a roughed in 18 gauge wire in a more desirable location that I would rather use permanently. I have a thermostatic valve that I set at 110 f. In the loop for the slab. No outdoor reset.
